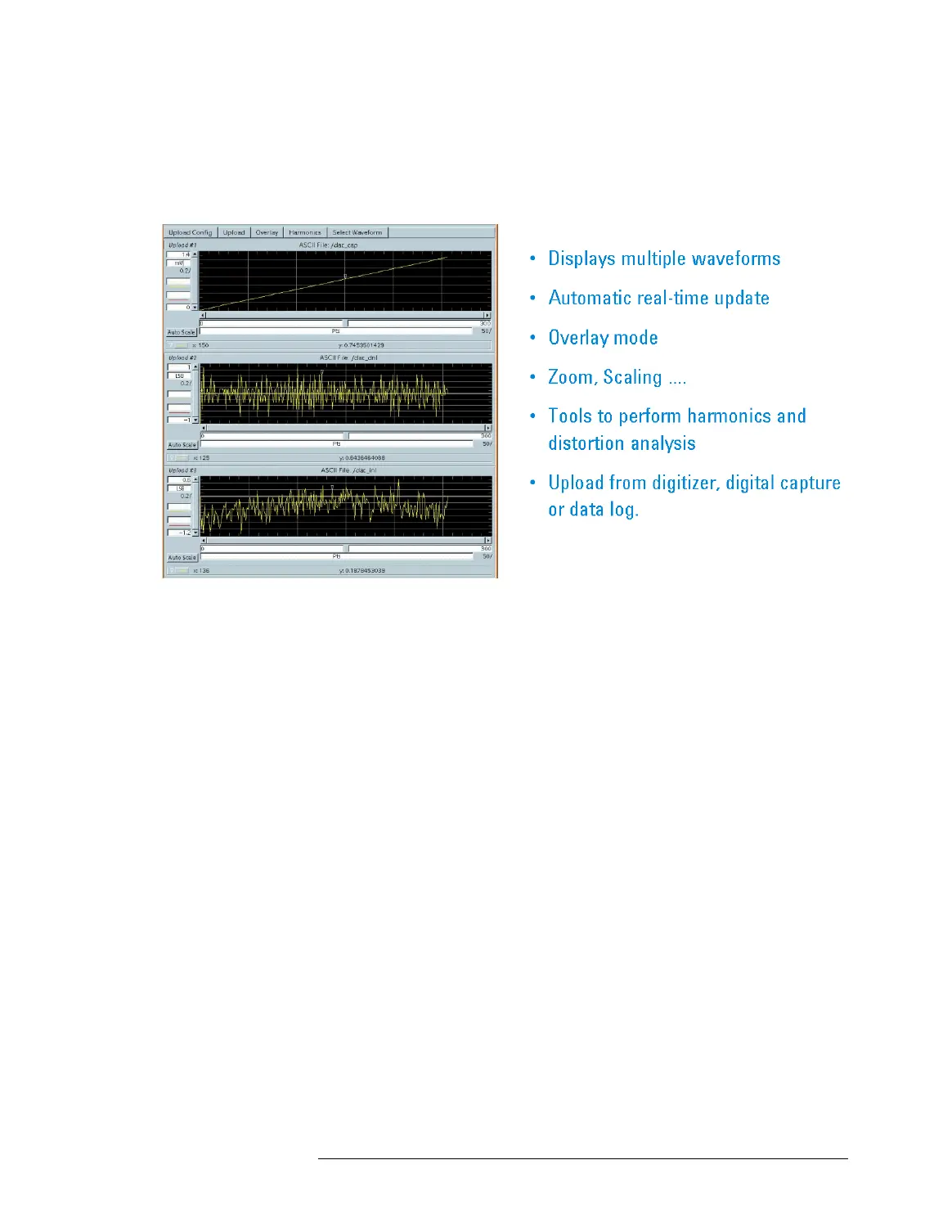

• Upload from digitizer, digital capture or data log.
The tool can read the waveforms to be analyzed either from analog
modules, digital capture or logged data.
Mixed-Signal Tool - Waveform Analysis
Routing Setup Tool
The Routing Setup Tool is used to define the routing of pins to
analog modules. This defines to which pin(s) an analog module
will send output signals, or from which pin(s) it will read input
signals. The routing definitions are saved in the Routing File.
The routing defines the switch setting of an analog module’s relay
matrix.
As the relay matrix of an analog module can also connect a pin to
another pin of the module, analog signals can easily be routed to
other analog modules without additional relays on the DUT board.
This is called a loop-back.
Analog pins can also be connected to a digital pin via an analog
module. This lets you perform continuity and dc measurements at
analog pins.
The Routing Setup Tool lets you define routing paths with simple
click-and-select mouse actions. To do this, standard routing
commands such as connect, disconnect or loop-back are used.
