Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Setting Up the Waveform Generator
305
2-1 Waveform Generator Setup with
Analog Setup Tool

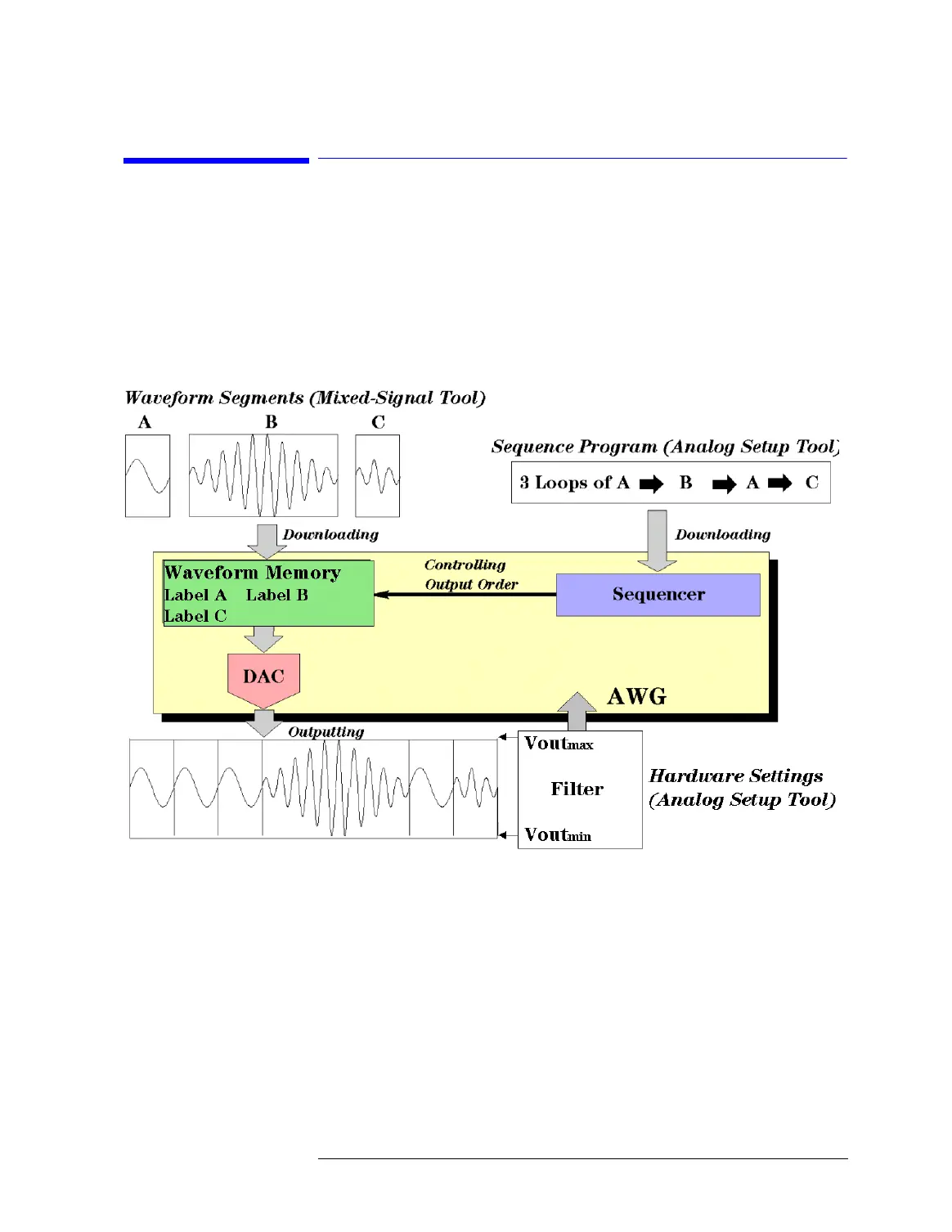

The following diagram illustrates the necessary components of the
AWG setup (sequencer program, waveform labels, waveforms and
hardware settings), with which tools of SmarTest they are created,
and how all these components are used by the AWG to generate
the final signal output.:
Overview of AWG Setup Components and AWG Operation
Making the Hardware Settings for the AWG
The Hardware Settings page for the High Resolution AWG (WGA)
looks as shown below
