Agilent Technologies 93000 SOC Series - Analog Modules

Lesson 3 – Introduction to the Software
41

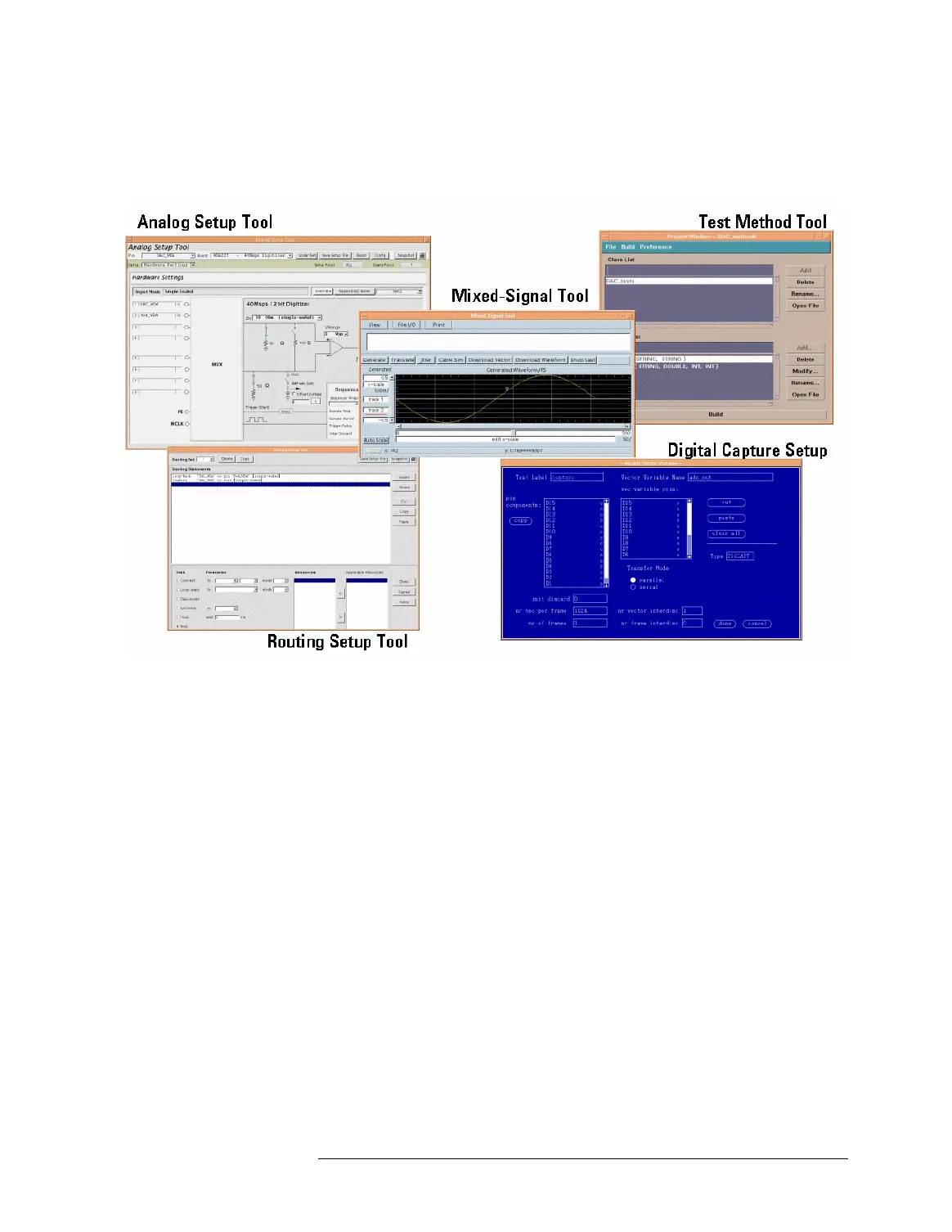

The following figure shows the main windows of the tools for
mixed-signal testing.
Main Windows of the Tools for Mixed-Signal Testing
Analog Setup Tool
The Analog Setup Tool is used for setting up the analog modules.
The setup data is saved in the Analog Setup File.
With the Analog Setup Tool you can edit and display setup
information such as :
• Hardware Settings of the analog modules
• Sequencer Memory of the analog modules
• Waveform Memory of the analog modules
• Clocking of the analog modules (Clock Domain Setup)
