Lesson 4 – Defining the Signal Routing

213

4-2 Overview of the Routing Setup

Tool

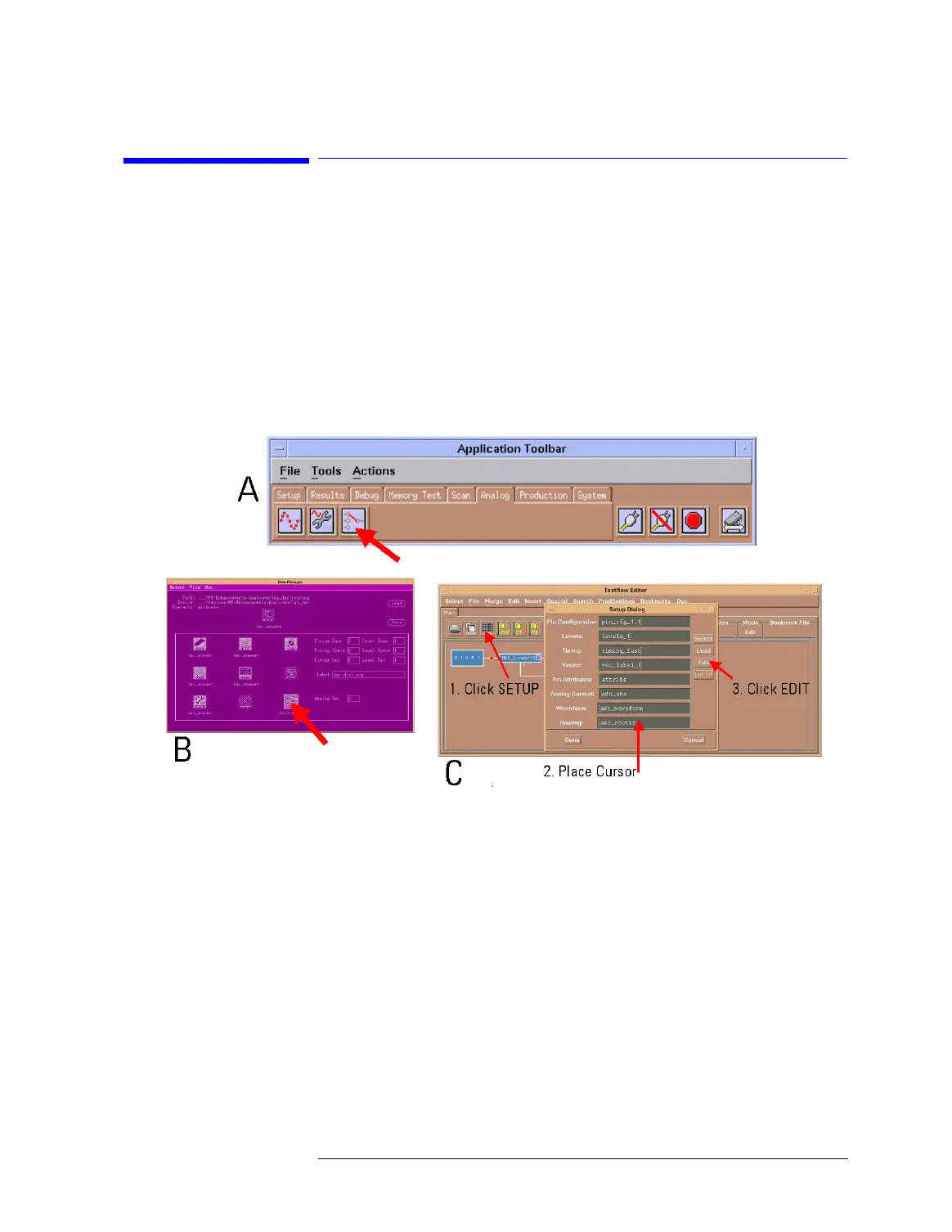

The Routing Setup Tool can be started in several ways:

• from the Analog tab of the main Application Toolbar of SmarTest

• from the Data Manager

• from the Setup Dialog window of the Testflow Editor

Staring the Routing Setup Tool

The Routing Setup Tool consists of only one window that lets you

load, save, create and edit routing definitions for all analog

modules.
