Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Waveform Digitizer Setup with the Analog Setup Tool
177
2-3 Core Selection and Global
Functions
The first step after starting the Analog Setup Tool is always to
check the current analog module core indicated in the B
OARD box
and change it, if desired.
How to Choose a Core

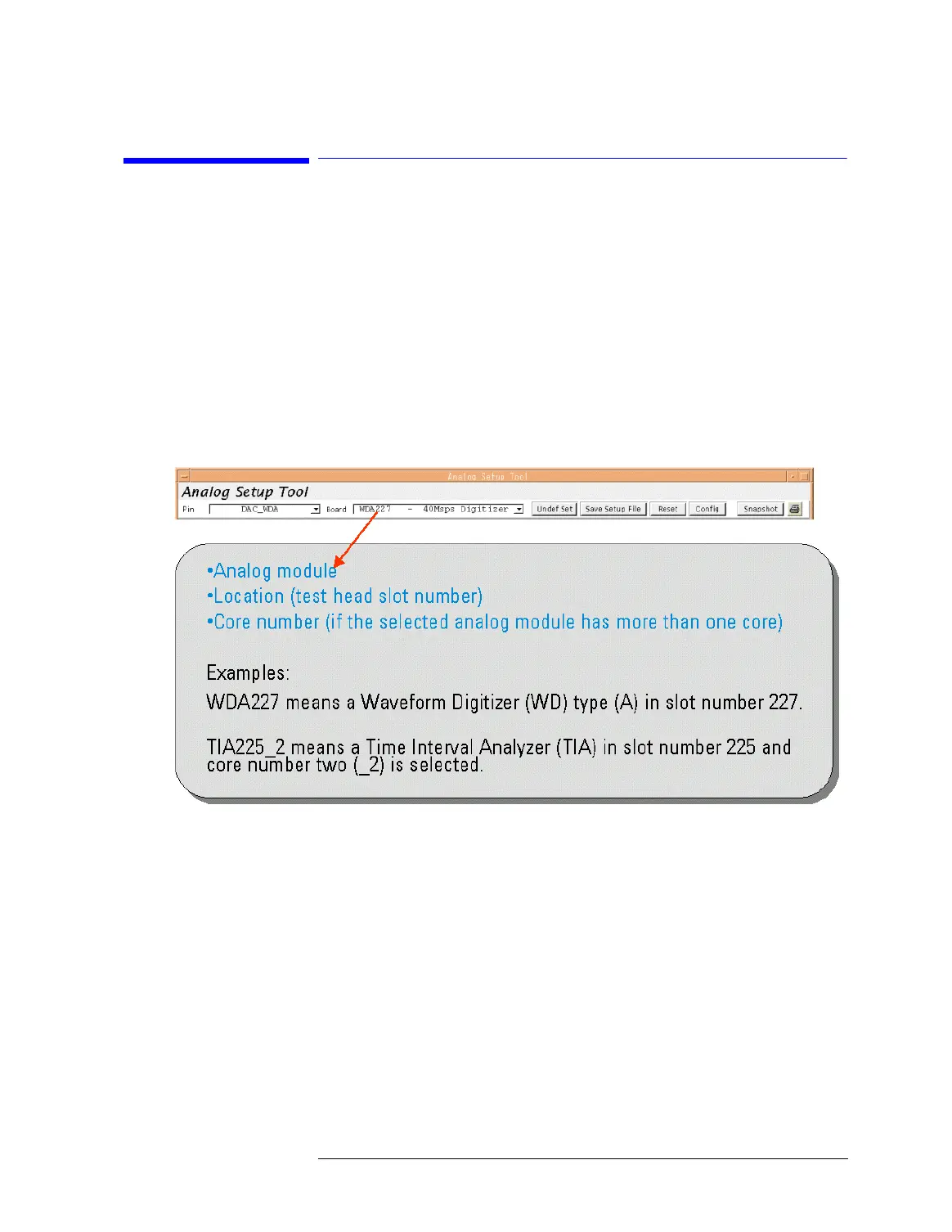

When a core is selected, an identifier string is displayed in the
B
OARD field. This identifier string shows:
Core Selection
It is also possible to choose a pin from the PIN browser. If this is
done, the B
OARD field will automatically display the analog module
related to the chosen pin. If the pin is connected to a dual-core
module, you may in addition have to select the desired core.
How to Save the Current Setup
Clicking the Save Setup File button stores the current setup data
in the Analog Setup File. The Analog Setup File is located in the
subdirectory analog_control of the device directory.
Like all setup data, the current analog setup can also be saved
from the Data Manager.
