Lesson 1 – Analog Modules
104
1-7 Multi-site Baseband Analog
Source&Measure / Analog Measure
(MCA)
The multi-site baseband analog source & measure and the multi-
site baseband analog measure are single-slot analog modules
installed in the test head, and contain eight units in one module.
Each of the eight units has multiple types of AWGs or digitizers.
These versatile units enable testing of various devices in one
analog module, and with more sites in parallel in multi-site testing.
As the occupied slot of the test head is only one, you can install
more analog modules in the system to test the devices with more
sites in parallel.

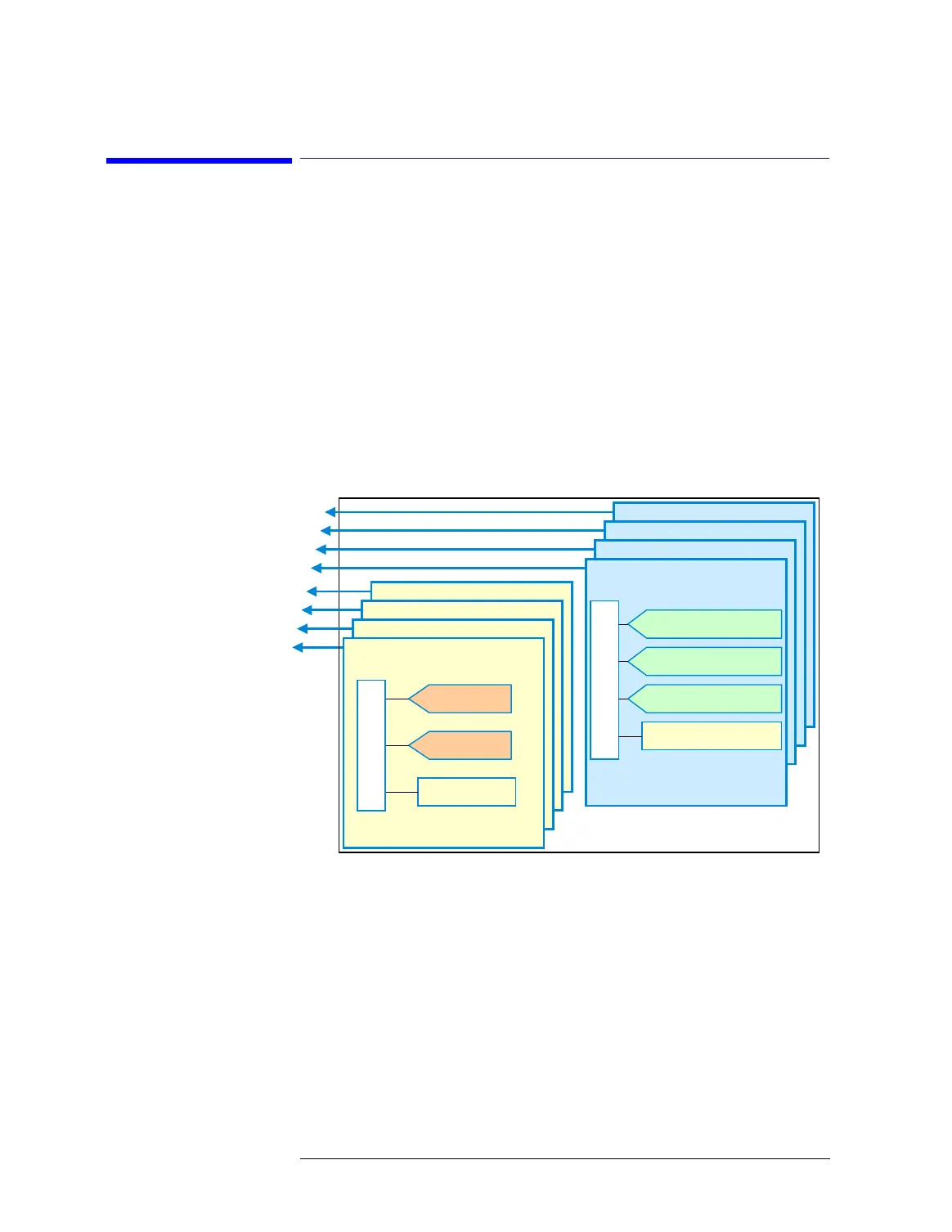

Multi-site Baseband Analog Source & Measure
Unit 1
Audio AWG
1024 ksps, 24-bit
Video AWG
100 Msps, 14-bit
Unit 2
Unit 3
Unit 4
Unit 6
Unit 7
Unit 8
Audio Digitizer, 2 ea.
200 ksps 50 kHz BW, 24-bit
Video Digitizer – normal mode
65 Msps 15 MHz BW, 14-bit
Video Digitizer – Direct mode
65 Msps 100 MHz BW, 14-bit
Unit 5
PMU (DC)
Source Unit
Source Unit
Source Unit
Source Unit
Measure Unit
Measure Unit
Measure Unit
Measure Unit
Core Function Selector
Core Function Selector
PMU (DC)
