Lesson 2 – Waveform Digitizer Setup with the Analog Setup Tool
182
2 Activate SHOW ONLY EDITED ANALOG SETS to remove the empty sets
from the display.
3 Highlight a set and click the EDIT button to edit this set.

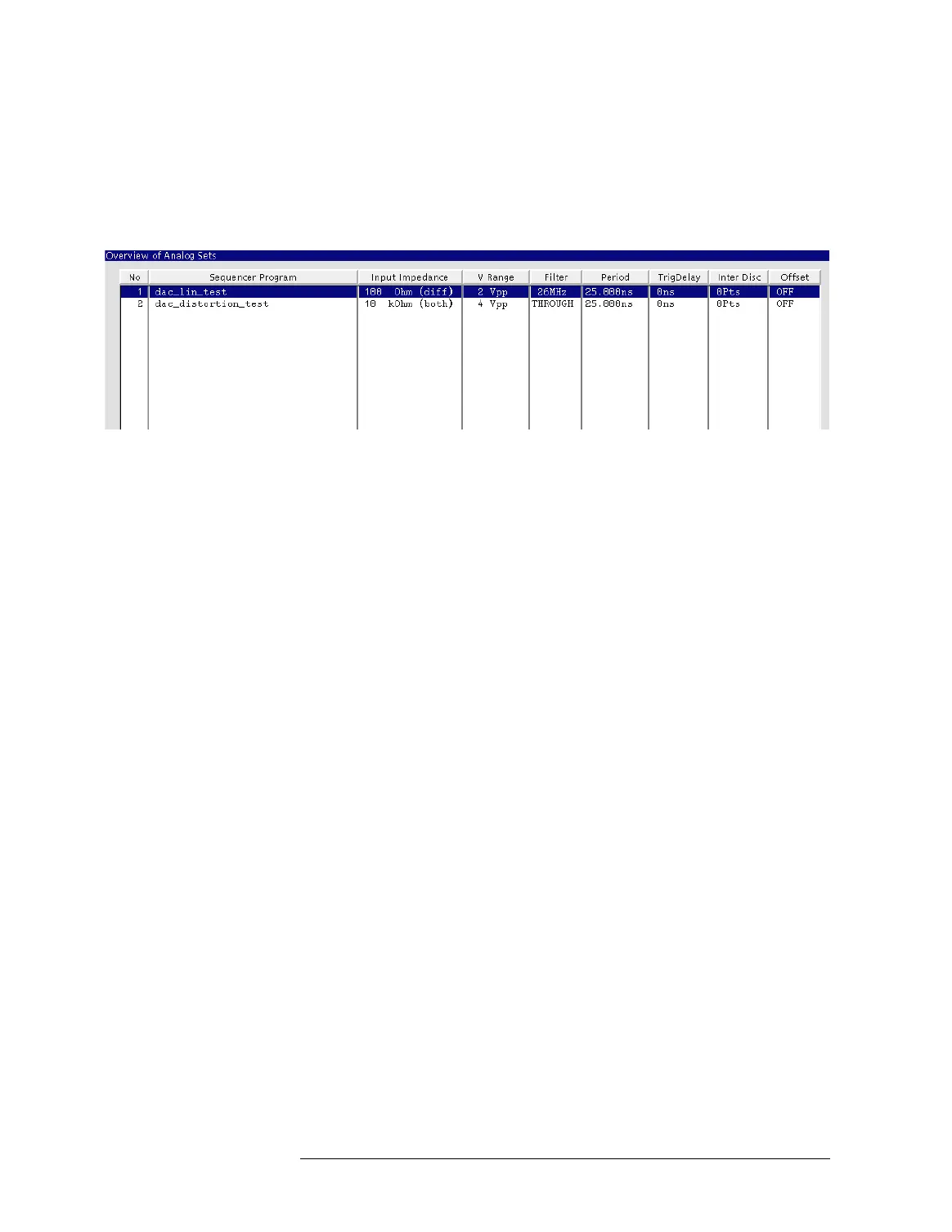

Overview of Edited Sets
How to Enter the Hardware Setting
The block diagrams provide browsers and entry fields that make it
easy to set up the hardware-related parameters.
Example:
For the High Speed Waveform Digitizer, you can specify
• Input impedance and mode (single-ended or differential)
• Input voltage range
• Offset voltage (for single-ended operation)
• The anti-aliasing lowpass filter to be used
NOTE Other analog modules will have different hardware-related
parameters.
To Next Page
