Diagnostic Test Cable Schematics

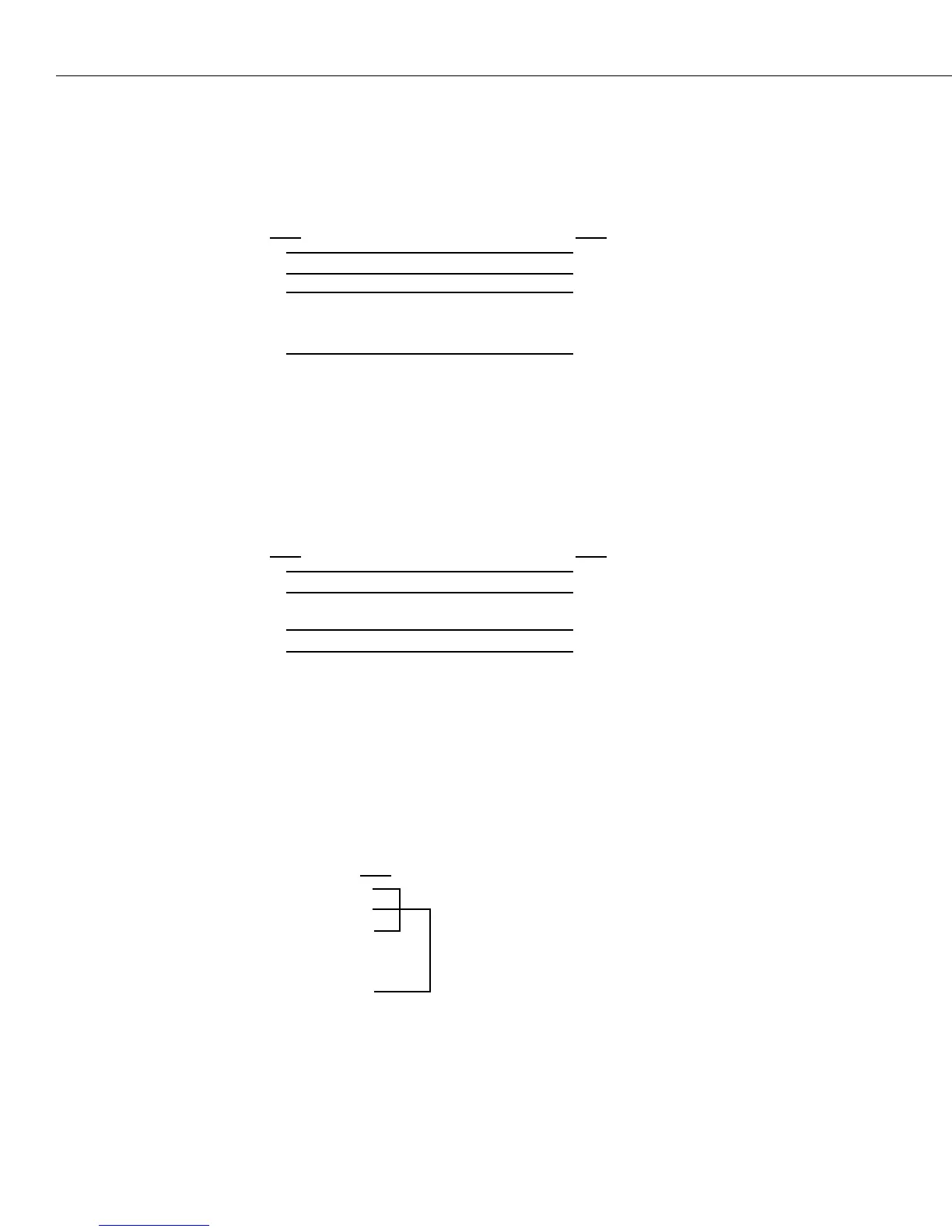

The figures below and on the following pages provide information on port test cables and
plugs.
Ethernet Crossover Wrap Cable — Category 5 UTP Copper Cable with RJ-45 Connectors
T1/E1 Crossover Wrap Cable — Category 5 UTP Copper Cable with RJ-45 Connectors
ESX Wrap Plug – RJ-45 Connector
RJ-45
3
6
1
4
5
2
7
8
RJ-45
1
2
3
4
5
6
7
8
RJ-45
4
5
3
1
2
6
7
8
RJ-45
1
2
3
4
5
6
7
8
RJ-45
1
2
3
4
5
6
7
8
