WAN Modules

Page 3-24

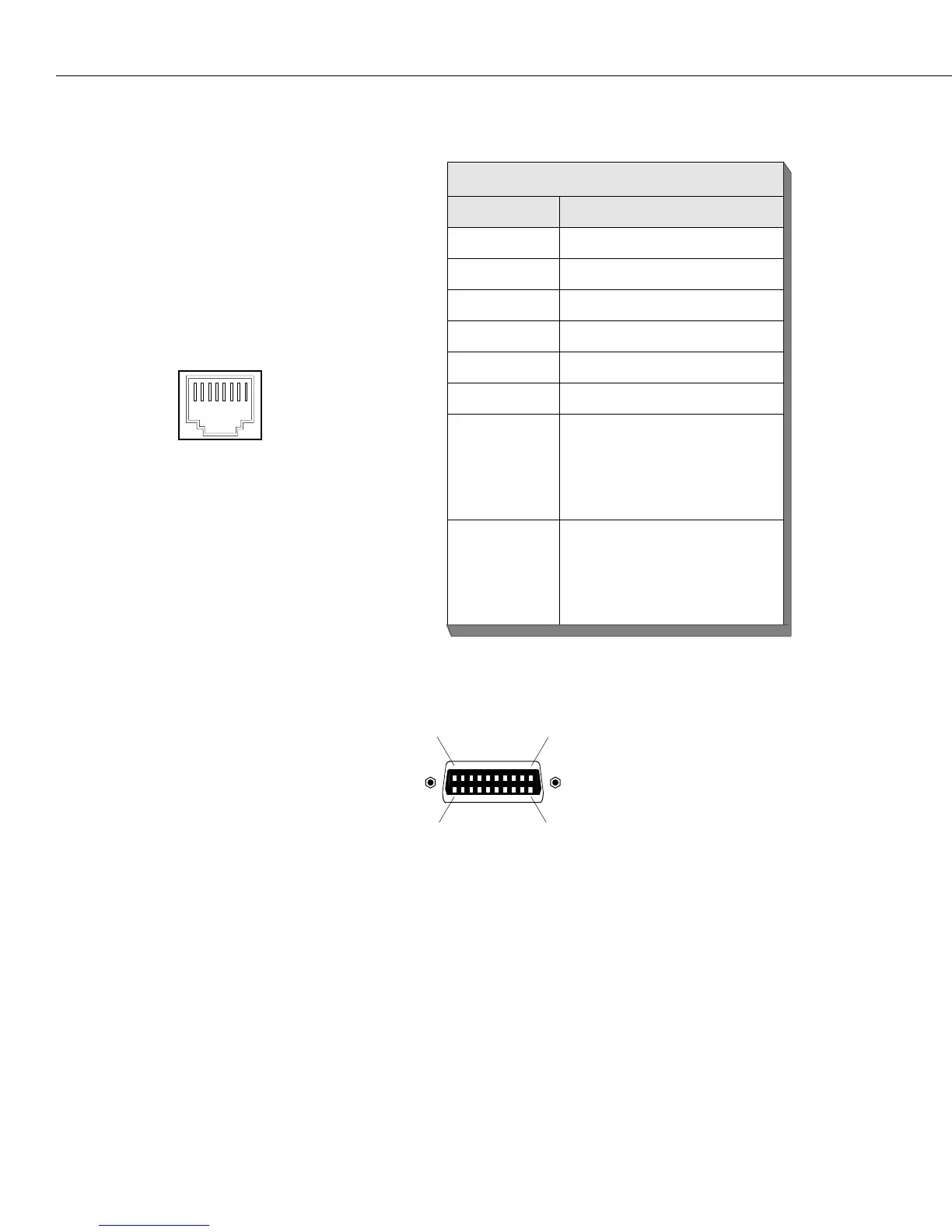

WAN Serial Port Numbering

WAN T1/E1 Port Speciﬁcations

Pin Number Standard Signal Name

1 Rx_Ring

2 Rx_Tip

3 Chassis GND

4, Tx_Ring

5 Tx_Tip

6 Chassis GND

7 Chassis GND

(A jumper is provided for

connecting Pins 7 and 8 to the

chassis ground, if required.)

8 Chassis GND

(A jumper is provided for

connecting Pins 7 and 8 to the

chassis ground, if required.)

1 13

14 26
