Omni Switch/Router Chassis and Power Supplies
Page 1-8
OmniS/R-3
The OmniS/R-3 chassis features three slots for an MPX and specific switching modules
(contact your Alcatel sales representative for information on module availability). Slots are
numbered from 1 to 3 starting with the topmost slot. A built-in power supply is located on the
right side of the chassis, and a fan cooling system is located on the left side of the chassis.
The chassis can be rack-mounted. You can view all cabling, power supplies, module inter-
faces, and LEDs at the front of the chassis.
The OmniS/R-3 uses a built-in AC power supply that has a capacity of 32.8 Amps at 5 volts
and 3 amps at 12 volts for 200 Watts of output power. The OmniS/R-3 does not support a
Backup Power Supply (BPS).
♦ Caution ♦
Do not connect the power connector on the back of
the OmniS/R-3 to data communication equipment.

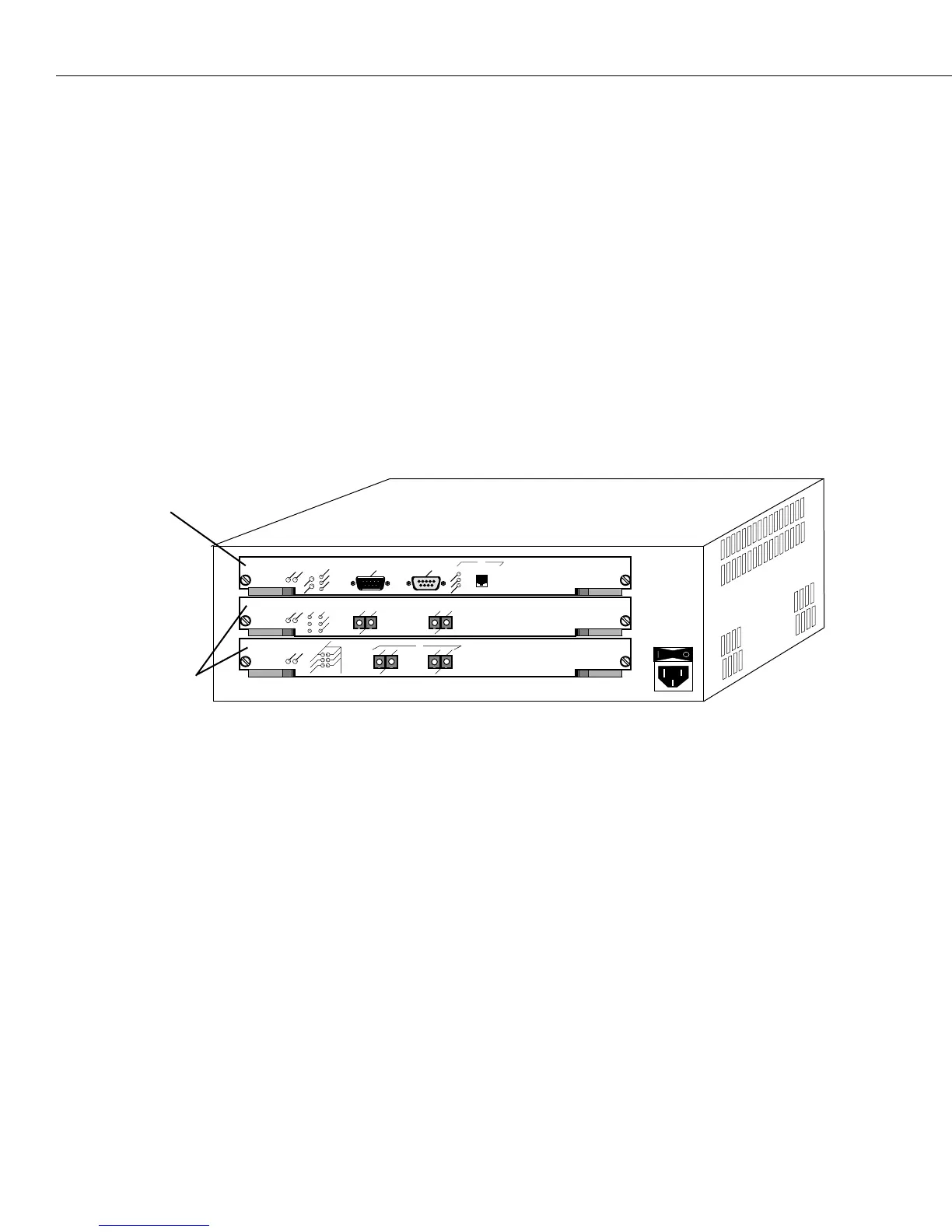

OmniS/R-3 Chassis
♦ Important Note ♦
Slot 1 (the top slot) on the OmniS/R-3 is reserved for
an MPX module. Slot 2 can accommodate either a
second (optional) MPX module or a Switching module.
Slot 3 (the bottom slot) is reserved for a Switching
module. Contact your Alcatel sales representative for
information regarding module availability.
Management
MPX 10
O
K
2
O
K
1
MODEM
CONSOLE
PRI
SEC
TEMP
ACT
COL
LINK
ETHERNET
PS1
PS2
ASX 622 sm
O
K
2
O
K
1
TX
LINK
RX
RX
TX
RX
TX
1
2
A
B
GSX-K sm
O
K
2
O
K
1
RX
TX
RX
TX
1
2
Switching
ATM622
YEL,FERF
ACT_A
ACT_B
RED_A
CERR
RED_B
ALARM
Processor
Module (MPX)
Modules
