Page 29-3

Back-to-Back Frame Relay Conﬁgurations

Frame Relay switching modules may be connected “back-to-back” without an intervening

Frame Relay network or switch. Such connections are made by using private leased lines,

such as T1 lines, instead of public Frame Relay networks usually over large geographic

distances.

No special user configuration is necessary for back-to-back connections. The

WSX software

automatically detects that a Frame Relay Logical DCE (i.e., Frame Relay switch) is not present

and that there is another Frame Relay Logical DTE (i.e., another WSX, FRAD, bridge/router) on

the other end of the WAN connection. The WSX then automatically brings up a Permanent

Virtual Circuit identified with a DLCI of 32, which is the same value IBM uses in this scenario.

The WSX does not bring up PVC DLCI 32 until it knows that it has established communication

with another DTE device rather than a Frame Relay switch.

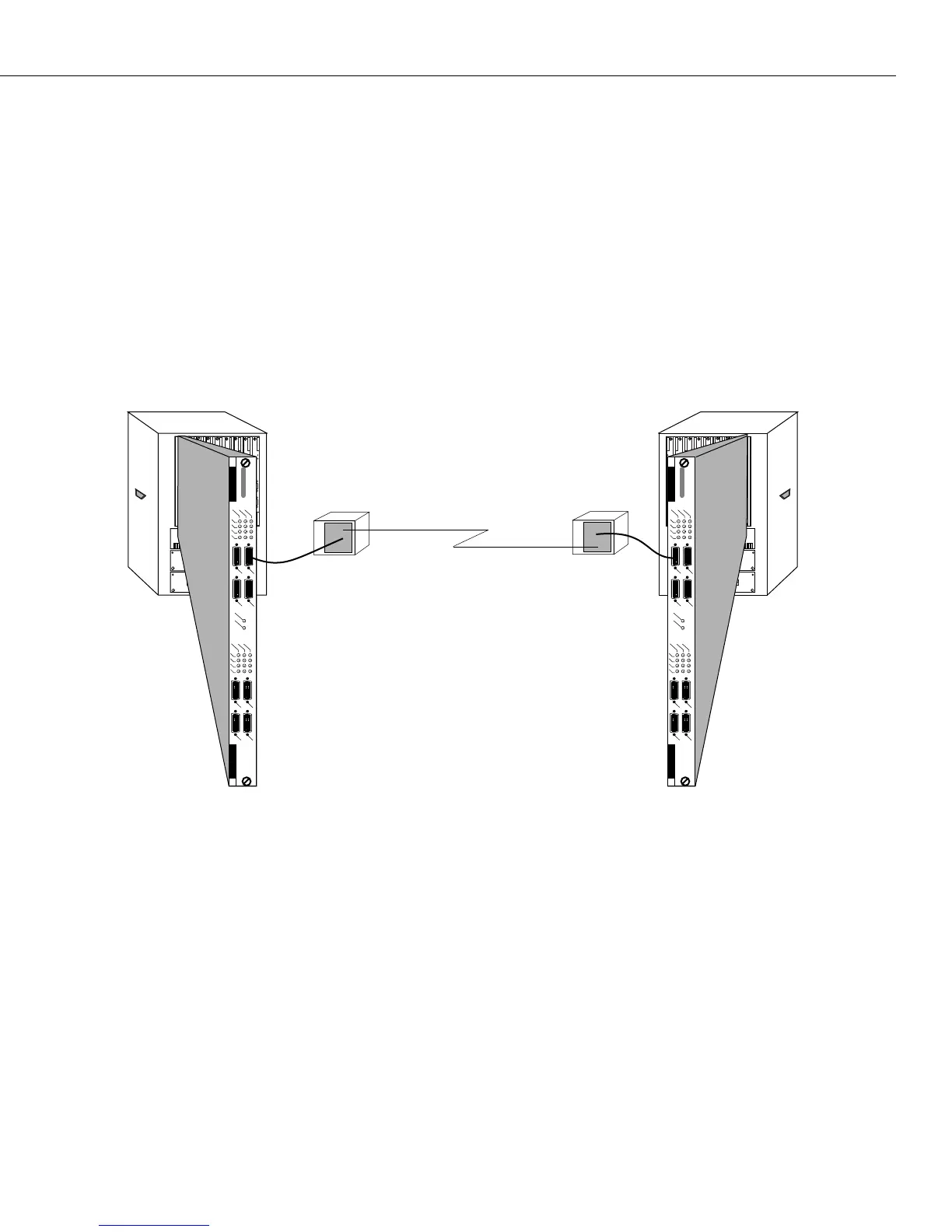

Back-to-Back Frame Relay Configuration Using Serial Ports

WSX
