Alcatel Omni Switch/Router User Manual

Omni Switch/Router Distributed Switching Fabric
Page 1-4
Omni Switch/Router Fabric Capacity
In a chassis with Omni Switch/Router modules only, each Omni Switch/Router module
provides 2.4 Gbps of switching capacity in full-duplex mode. In a chassis with all Omni
Switch/Router modules, the Omni Switch/Router architecture provides up to a 22 Gbps
distributed switching fabric. As shown in the figure below, an OmniS/R-9 with an MPX and
eight (8) Omni Switch/Router switching modules provides 22 Gbps of switching capacity. An
an OmniS/R-5 with an MPX and four (4) Omni Switch/Router switching modules provides 12
Gbps of switching capacity, while an OmniS/R-3 with an MPX and two (2) Omni
Switch/Router switching modules provides 7 Gbps of switching capacity.

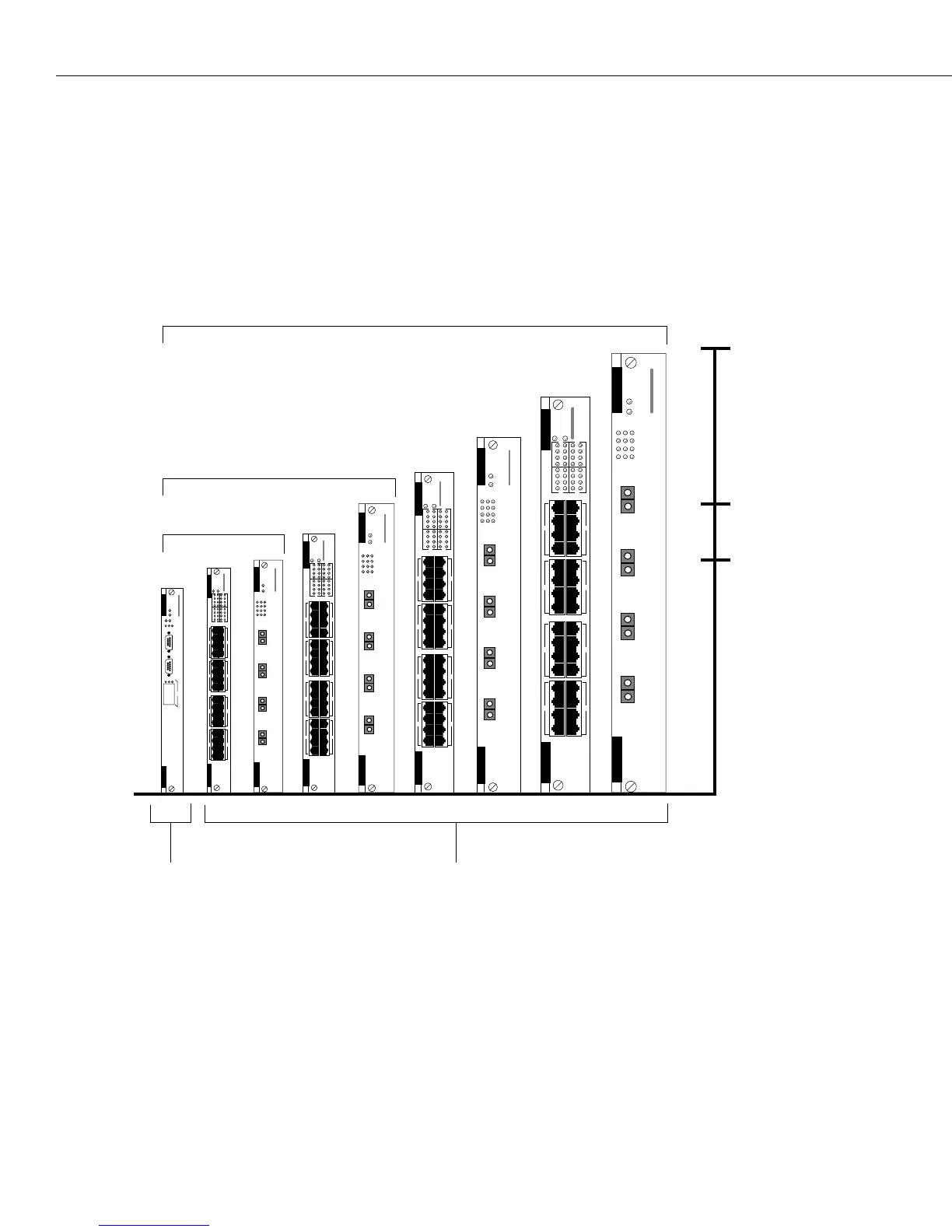

Omni Switch/Router Fabric Capacity in OmniS/R-3, OmniS/R-5 and OmniS/R-9 Chassis
Fabric Capacity
12
(Gbps)
22
35 7 9
Omni Switch/Router Switching Modules
1
OmniS/R-5
OmniS/R-9
MPX
OmniS/R-3
7
