WAN Modules

Page 3-23

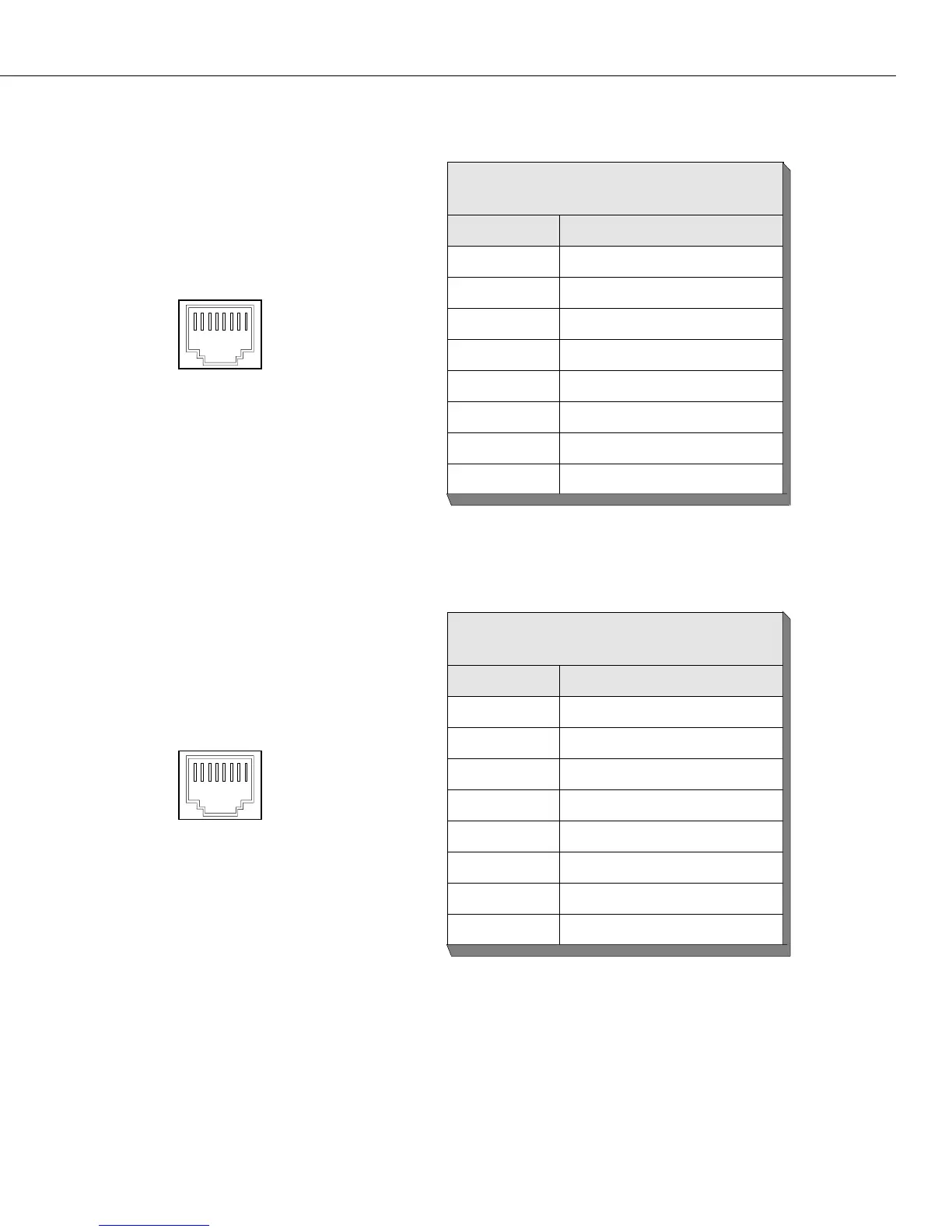

WAN BRI Port Speciﬁcations

(S/T Interface)

Pin Number Standard Signal Name

1 Not Used

2 Not Used

3 Rcv + from TE

4, Rcv - from TE

5 Xmt + from TE

6 Xmt - from TE

7 Not Used

8 Not Used

WAN BRI Port Speciﬁcations

(U Interface)

Pin Number Standard Signal Name

1 Not Used

2 Not Used

3 Xmt to /Rcv from Network

4, Xmt to /Rcv from Network

5 Not Used

6 Not Used

7 Not Used

8 Not Used
