Page B-13

RJ-45 to BNC Cable Assembly (For E1 75Ω Port Connections)

The following parts are recommended for manufacturing the cable:

• For the switch side of the cable assembly (P1): 8-conductor RJ-45 round connector

(MTP-88U or equivalent)

• For the cable: RG-187A coaxial cable (Belden 83267 or equivalent)

• For the customer end of the cable assembly (P2 and P3): Coaxial BNC connector, 75Ω

(Amp 413760-8, or equivalent).

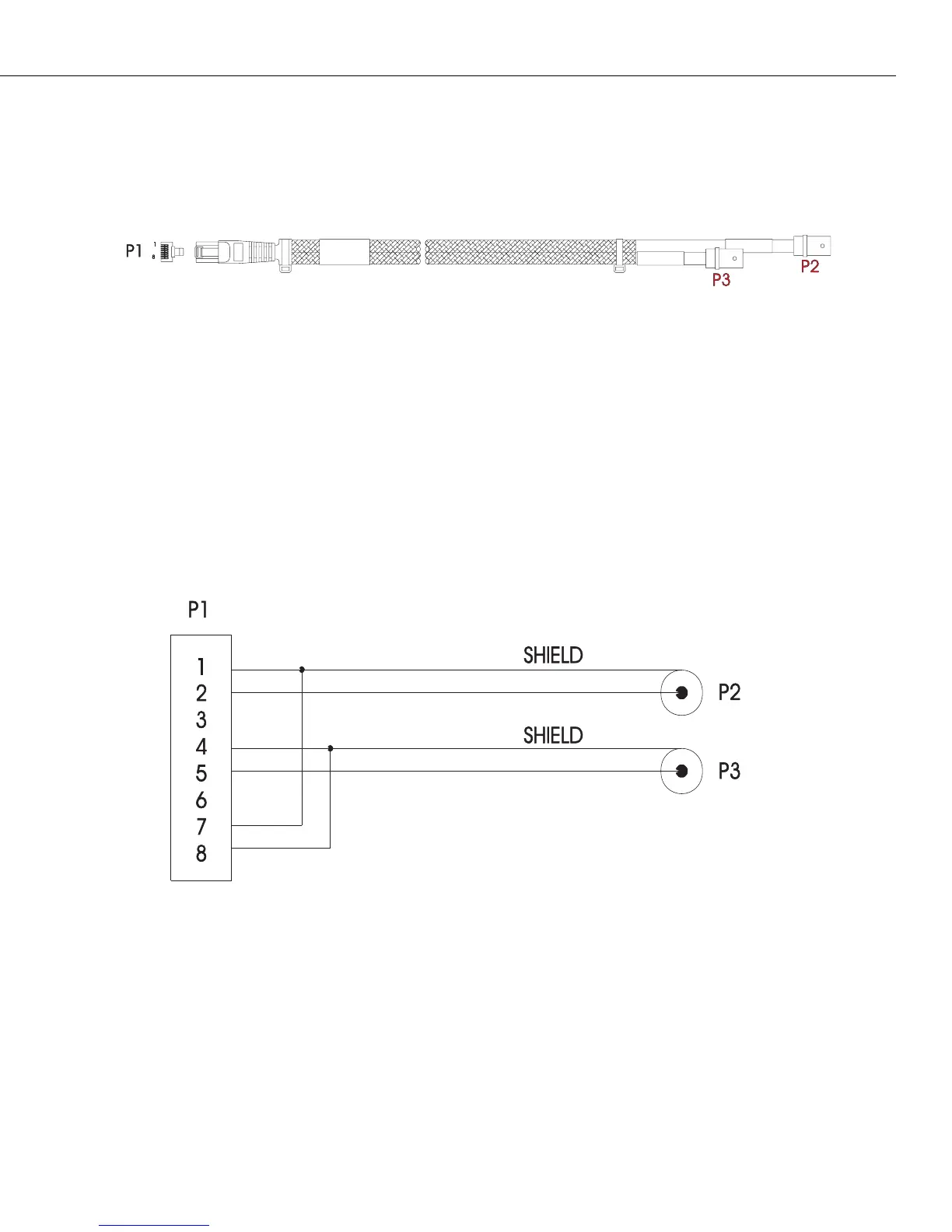

The figure below shows the pinouts for the cable assembly.
