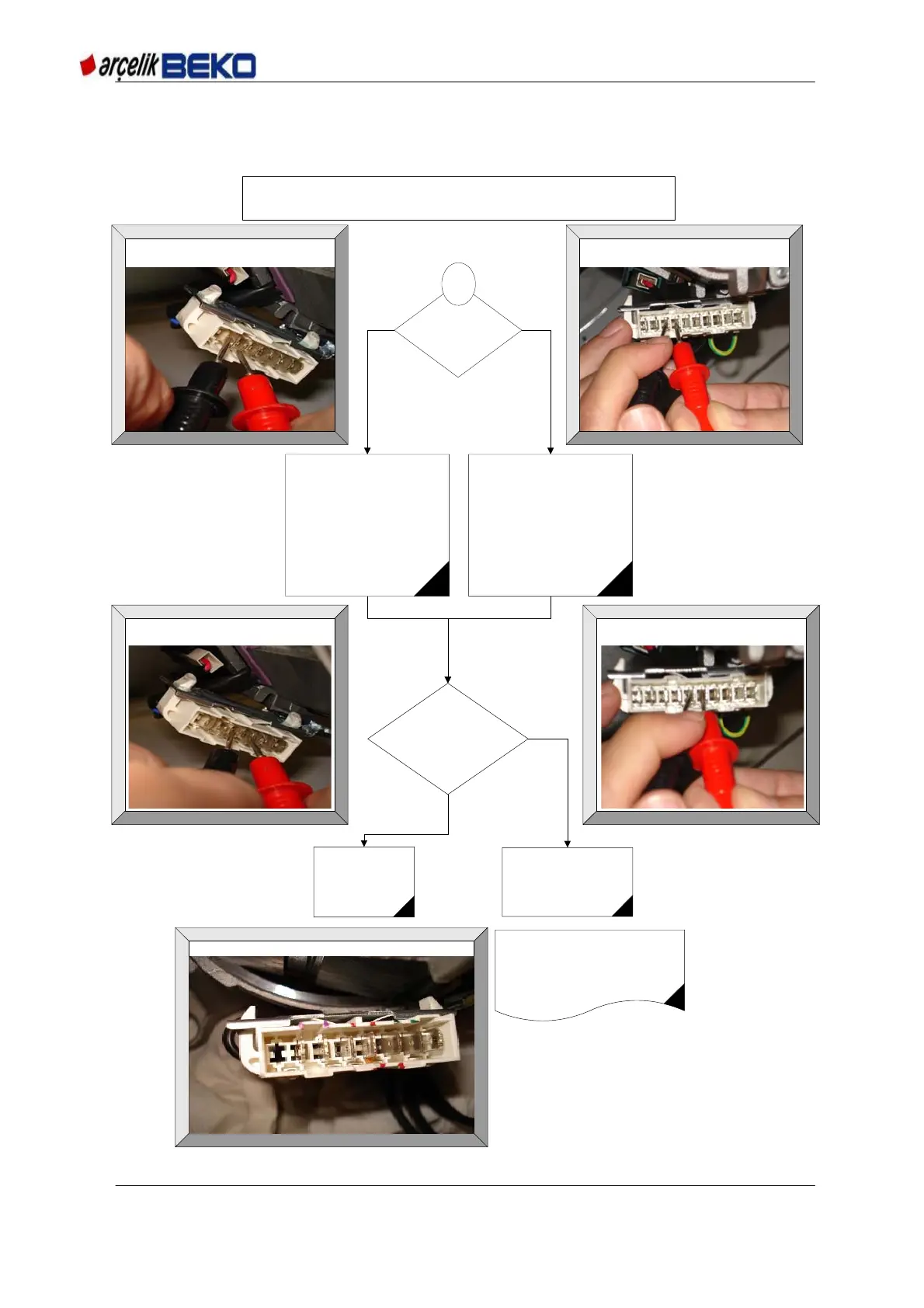

B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
113
Replace the motor. Start
spinning again
Yes
No
Check and correct as
necessary the cabling
between the card and
the motor. Start
spinning again.
Are both measured values
correct?
having
8
having
10
Rear cover of the
machine is opened;
does the motor
connector has 8? or
has 10?
A-A
1) Motor socket is removed.
Resistance value is measured
between pins 3 and 4 of the motor
connector. Resistance value is
approx. 1.5 Ohm. There should not
be open circuit or short circuit.
(Picture E11-8)
2)Resistance value is measured
between pin 5 and pin 6 of the motor
connector; there should not be any
open circuit.
(Picture E11-9)
1) Motor socket is removed.
Resistance value is measured
between pins 2 and 3 of the motor
connector. Resistance value is
approx. 1.5 Ohm. There should not
be open circuit or short circuit.
(Picture E11-6)
2)Resistance value is measured
between pin 4 and pin 5 of the motor
connector; there should not be any
open circuit.
(Picture E11-7)
IMPORTANT: First connector on
the 8-pin motor connector is
empty. This connector is also
counted.
Picture E11-13
PICTURE E11-8: Motor coil resistance is being
checked over 10-pin motor
PICTURE E11-6: Motor coil resistance is being
measured over 8-pin motor
PICTURE E11-9: Motor motor rotor is being
checked over 10-pin motor
PICTURE E11-13: 8-pin motor connector
PICTURE E11-7: Motor motor rotor is being
checked over 8-pin motor
APPLIES ONLY FOR PRODUCTS WITH UMDC
MOTOR
