B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
157

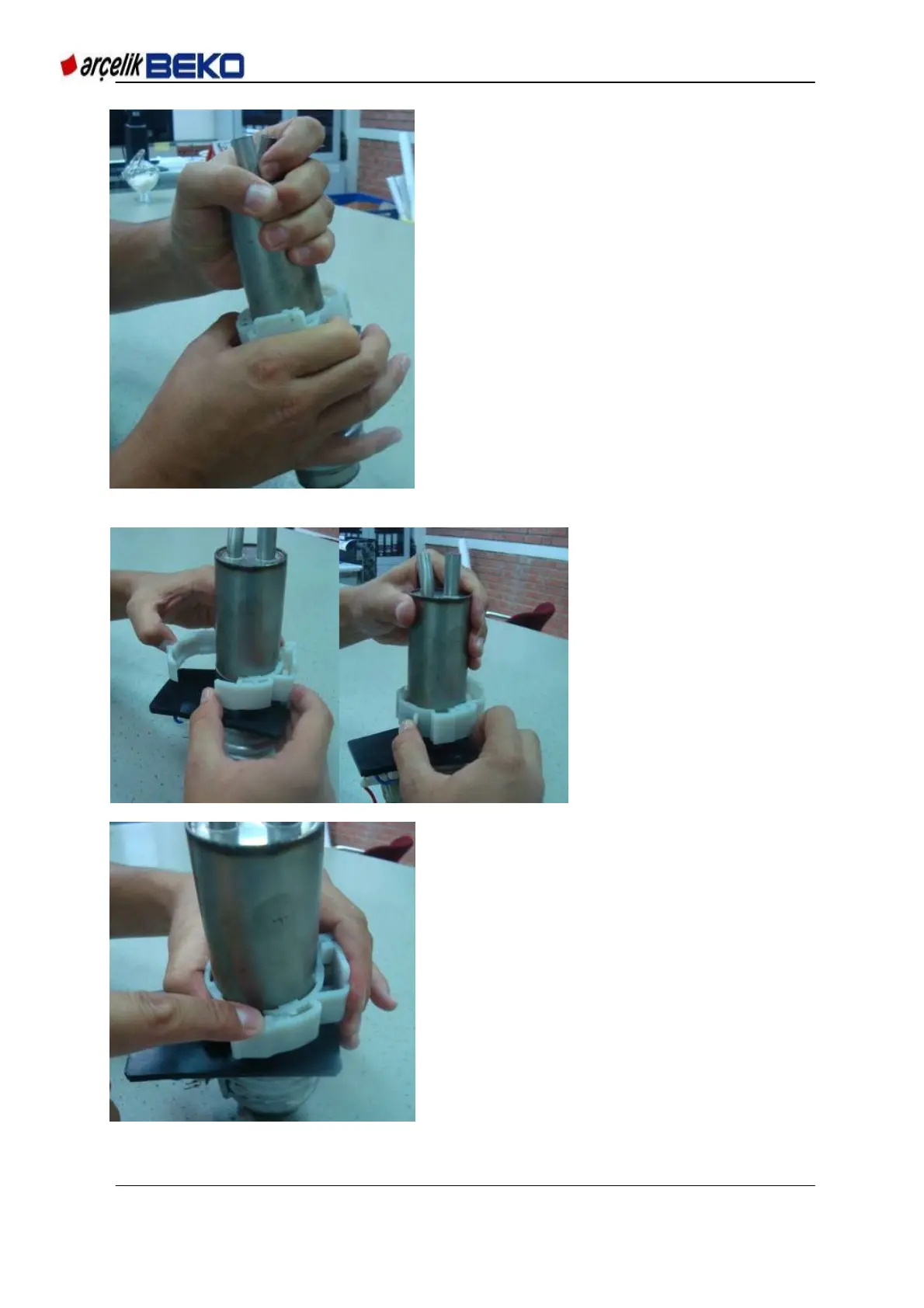

Picture 15.67
Picture 15.68
Picture 15.69
15.9.3. Steam Hose Attachment / Detachment
Bracket will be slightly turned
until the cam preventing
turning sits in the slot on the
metal ring with a clicking sound
and the bracket will not turn on
the metal anymore.
Bracket is locked and
tightened.
It must be made sure that the
tabs are snapped in each
other. Bracket should not come
out when forced to remove by
hand.
