B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
141
15.3. Cover Group Attachment / Detachment
15.3.1. Attachment
Front door is opened.
2 screws of hinge holder which serve as holding the hinge and the front door are
removed and the holder is taken out. Front door is removed from the hinge.
2 hinge screws which connect the hinge to the front wall are removed and the hinge is
detached from the front wall.

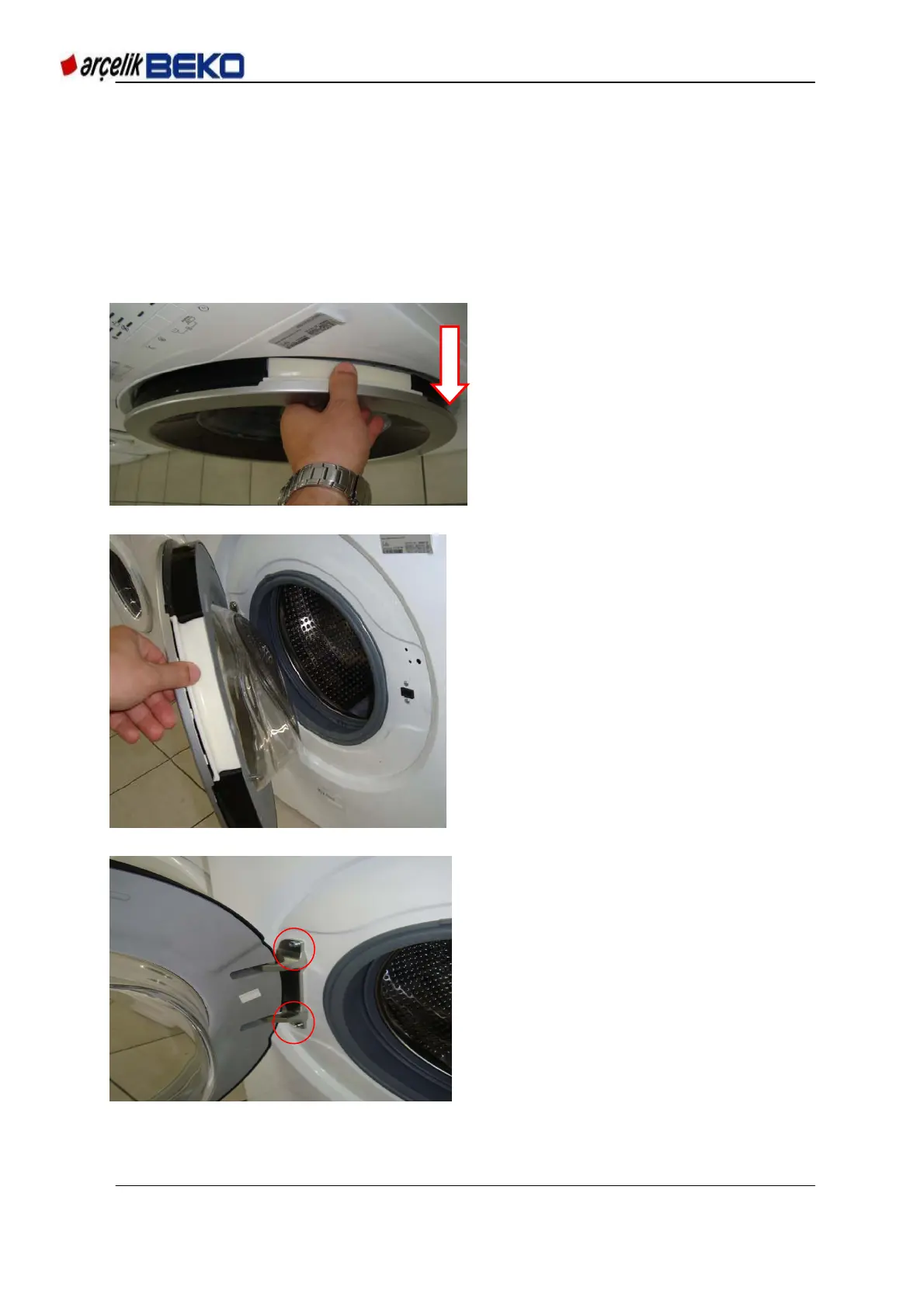

Picture 15.22 Front Door Detachment / Attachment
Picture 15.23Front Door Detachment / Attachment
Picture 15.24Front Door Detachment / Attachment
