B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK

166

UM/DC/AC

 Rear wall is removed. Poly-V belt is taken out.

 Motor-Drum connection screws are removed (4 pieces).

 Motor is connected to the drum at four points; 2 in the front and 2 at the back.

 Motor socket is taken out of the motor

 Motor is pulled backward by hand to take it out.

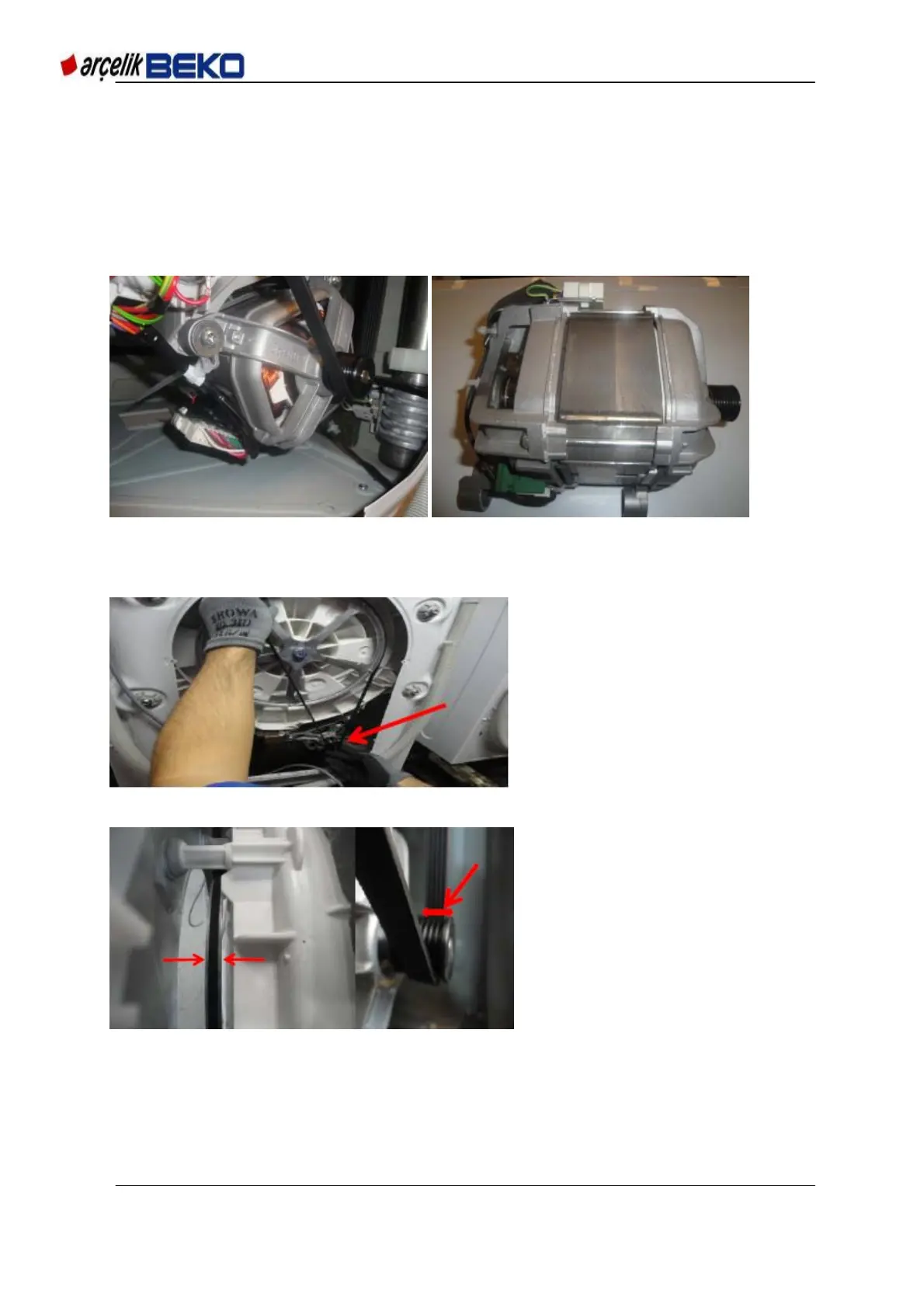

Picture 15.92 Motor

15.16. Poly V Belt Attachment

Picture 15.93 Belt attachment - 1

Picture 15.943 Belt attachment - 2

Fit the pulley belt to the motor

shaft gear to attach it to the

pulley.

Check if the belt centered the

pulley.

If the belt fails to center the

pulley, perform the attachment

by attaching the belt to the

same gear on the motor shaft it

is centered to.
