B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
140

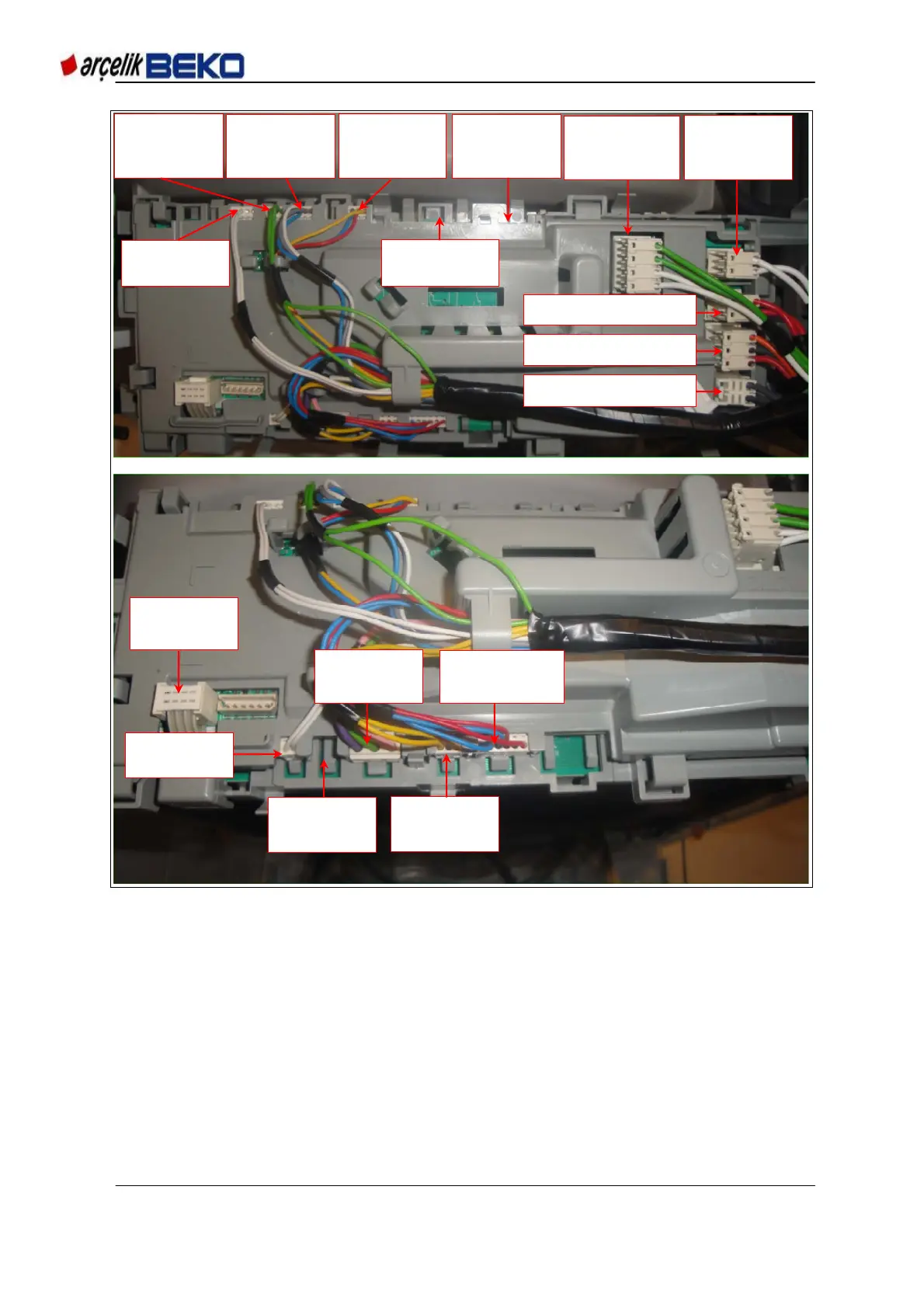

Picture 15.21 Card socket connections - 2
Flowmeter cable
socket KN20 to
panel socket
NTC cable socket
KN19 to panel
socket holder
Water level sensor
cable socket
KN18to panel
socket holder
UMDC motor cable
socket KN07 to
panel socket holder
Motor (BLAC
motor)
communication
cable socket
KN09to
p
anel
UMDC motor DC
card cable socket
KN06 to panel
socket holder
Steam generator
cable socket KN23
to panel socket
holder
Mains 220VAC input cable socket
KN0
3
to
p
anel socket holder
BLAC motor cable
and impedance coil
cable socket KN08
to panel socket
holder
Door lock cable socket KN05 to
panel socket holder
Heater cable socket KN24 to
panel socket holder
Display main
board input cable
socket KN11 to
panel socket
Aquastop cable
socket KN17 to
panel socket
Steam generator
valve cable socket
KN16 to panel
socket holder
Drain and Jet
pump cable socket
KN12 to panel
socket holder
Main wash and
prewash valves cable
socket KN13 to panel
socket holder
Hot water valve
cable socket KN20
to panel socket
holder
Picture 15.20 Card socket connections
-
1
