B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
158
Detachment
Steam generator must be removed in the first place. See Steam generator detachment

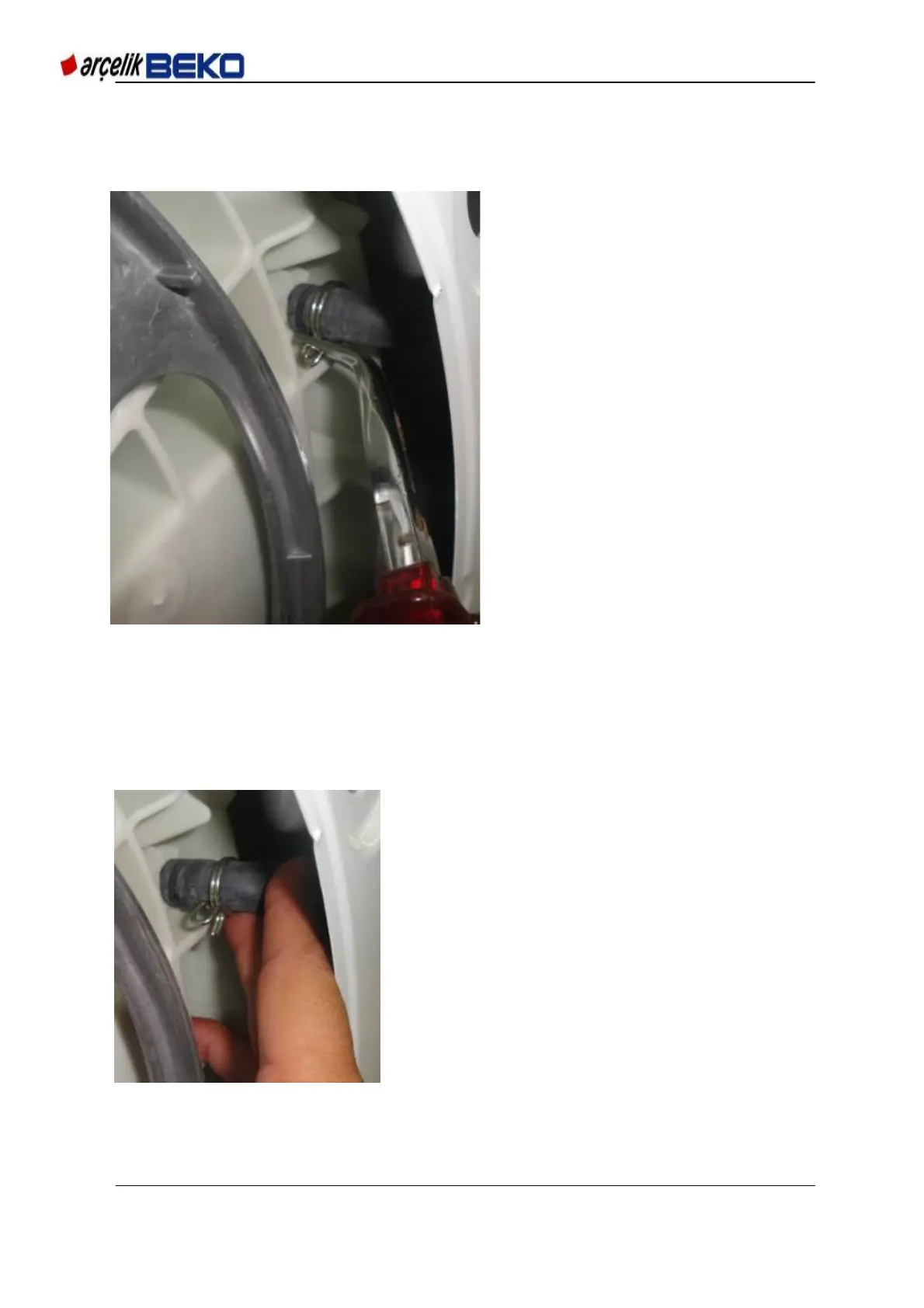

Picture 15.70 Steam hose detachment
Attachment
Steam generator must be attached in the first place. See, Steam generator attachment
Bracket on the steam hose end at the drum side will be removed by needle pliers to remove
the hose.
Picture 15.71 Steam hose attachment
Bracket on the steam hose end
at the drum side will be
removed by needle pliers to
remove the hose.
End of the steam
hose at the drum
side is pushed
manually into the
hole on the back of
the drum.
