B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
142

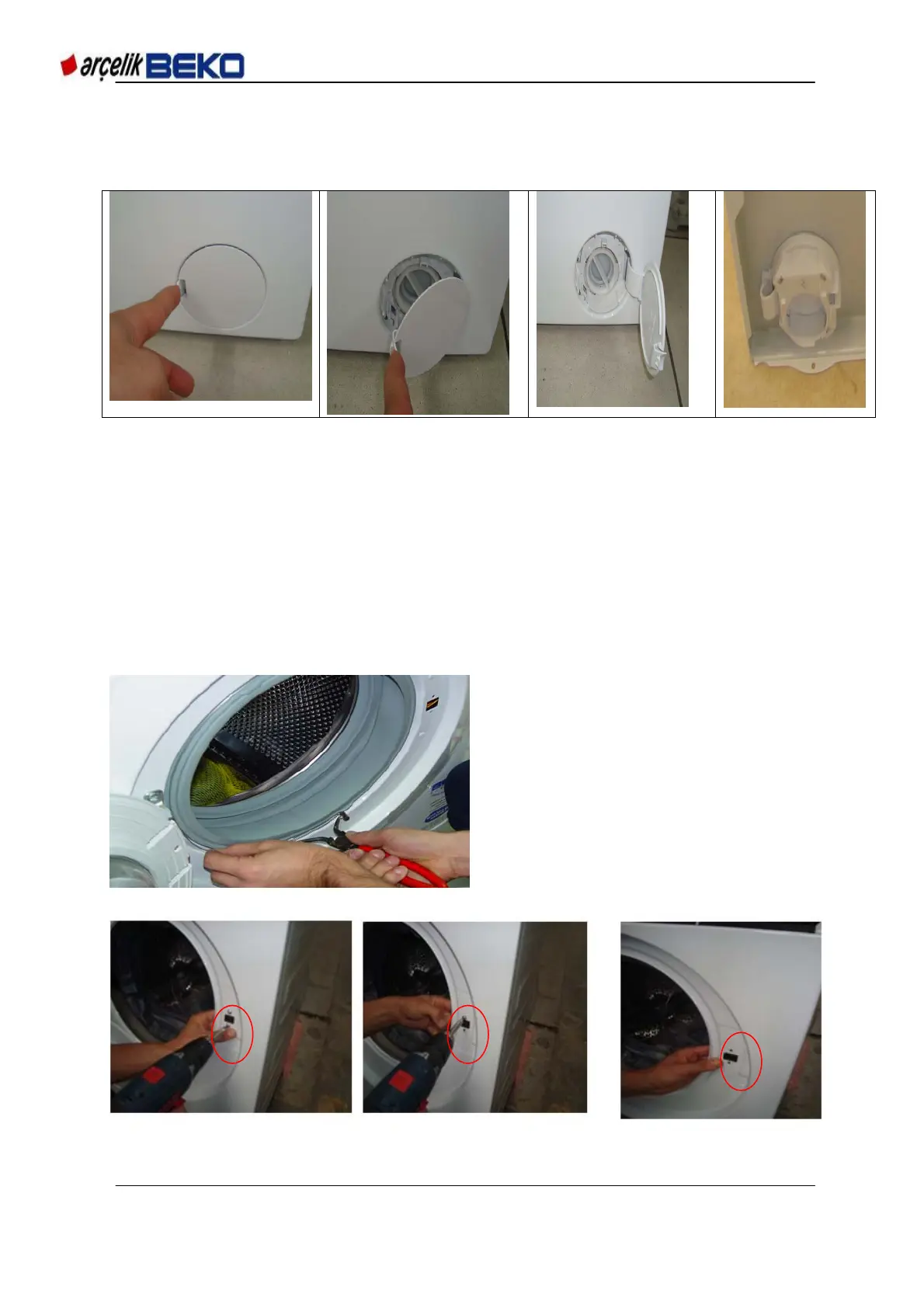

15.4. Pump cover attachment / detachment
Pump cover located in the bottom right of front wall is opened by pushing from the tab.
Picture 15.25 Pump cover Detachment / Attachment
15.5. Front Wall Attachment / Detachment
Front door assembly is removed.
Body Bellows Bracket which fixes the Drum Bellow to the Front Wall is removed by
means of a special Bellows Bracket Pliers.
Door Lock screws are removed.
Lock is pushed inwards to remove it.
2 screws connecting the ears on the panel connection upper position are removed.
Picture 15.26 Front Wall Detachment / Attachment
Picture 15.27 Front Wall Detachment / Attachment
