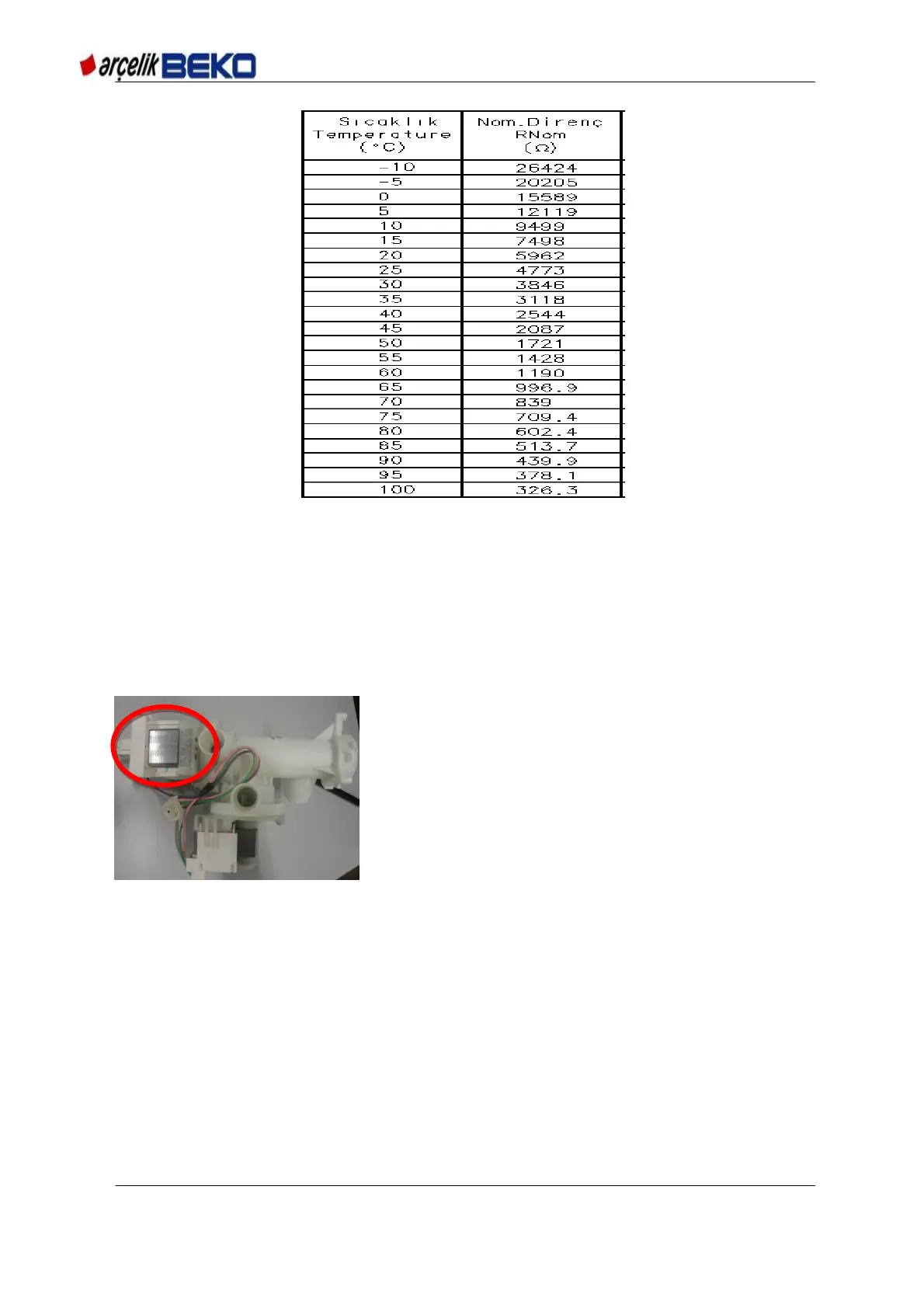

Table 9.4 NTC values
9.14. Drain Pump
It is a mono-phase, bipolar synchronous motor with magnet rotor. In drain step it is driven by
triac on the control card. It is impedance-protected against continuous operation and rotor
blockage.
Drain pump discharges the water in the drum.
Picture 9.22 Drain pump
9.15. Jet System Pump
It is a mono-phase, bipolar synchronous motor with magnet rotor. In jet step it is driven by
triac on the control card. It is thermic-protected against continuous operation and rotor
blockage.
Jet system pump transfers the water it has taken from the drum back to the drum.
Nominal Voltage 220-240 V 50Hz
Resistance 145 ohm
Current <0.2A
Flow rate >14 l/min
Startup performance <=4sec (160V)
