B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
135
15. COMPONENT ATTACHMENT - DETACHMENT

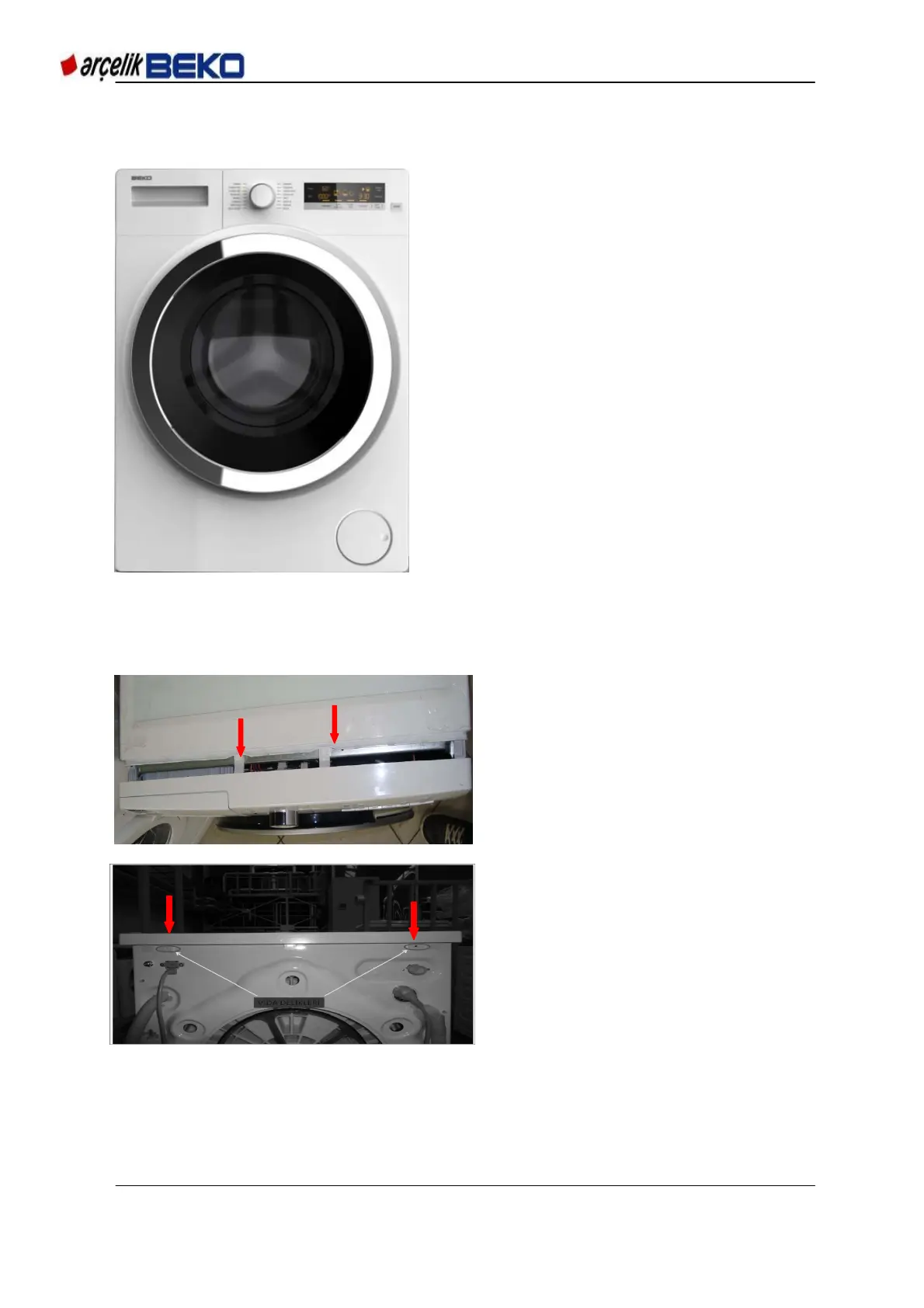

Picture 15.1 General view
15.1 Upper Table Attachment / Detachment
15.1.1 Attachment
Picture 15.2 Upper table attachment - 1
Picture 15.3 Upper table attachment - 2
Front view of machine is given in Picture
15.1.
As shown in Picture 15.2 and Picture
15.3, upper table is pushed forward
from the back of the machine to allow
the center tabs in the front part of the
upper table assembly to enter into the
bask of the panel. 2 screws on the
back side are tightened.
