B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
150
Safety gloves should be used in the process to protect the wrist and hand from sharp
edges.

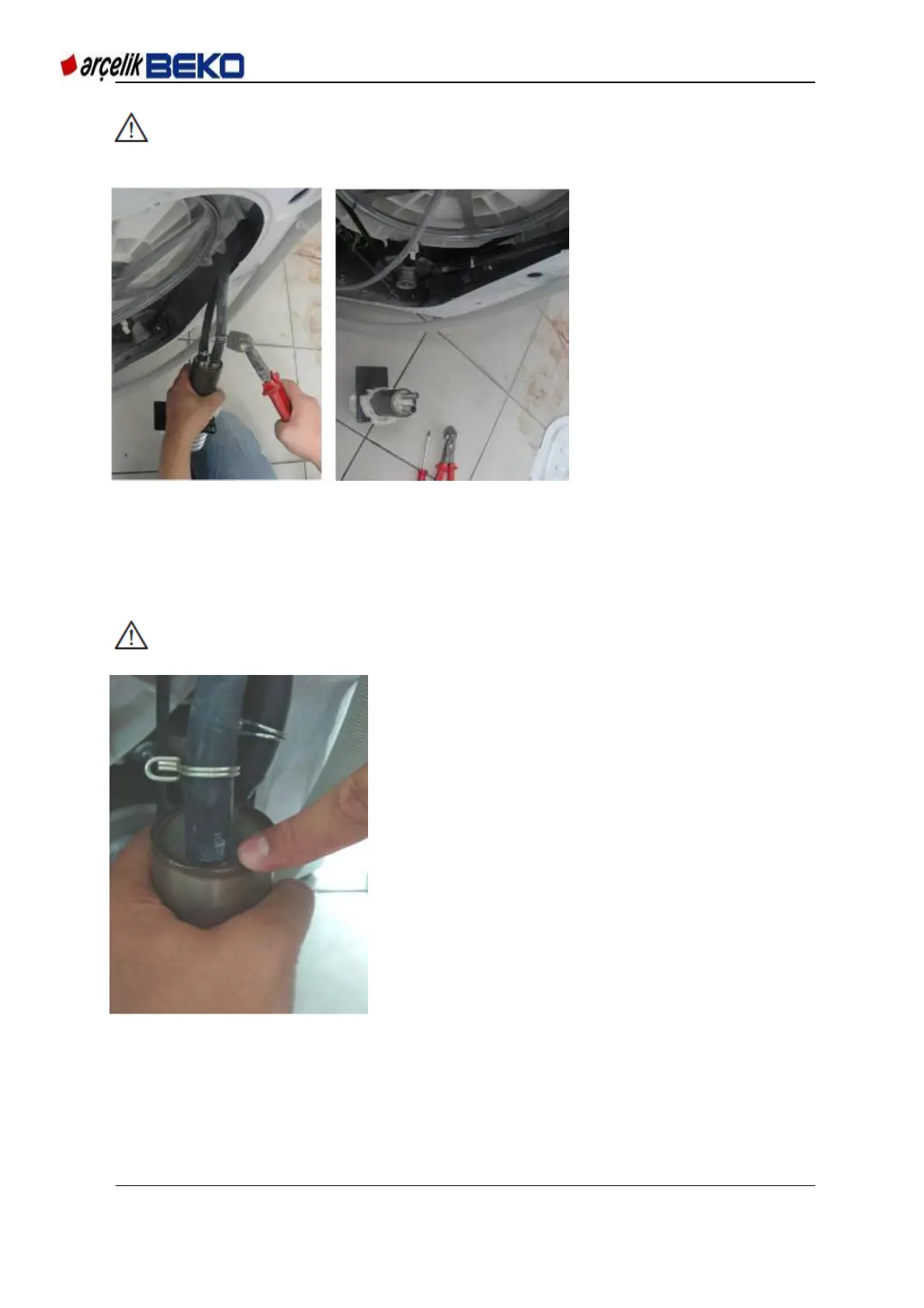

Picture 15.50 Steam generator hose detachment
Attachment
Steam output and water input connections of steam generator hoses must be made. Water
can be used for ease of attachment.
Excessively slippy liquids such as detergent and softener cause faulty attachment.
Picture 15.51 Hose attachment
Steam generator detachment
is completed by removing the
hose brackets.
Steam hose has a large
diameter and there is an indice
on it. It ensures steam
transport between the drum
and generator. Steam hose
must be mounted on the
vertical and thick pipe on the
generator. During mounting,
attention should be paid to the
following indices.
