B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
168

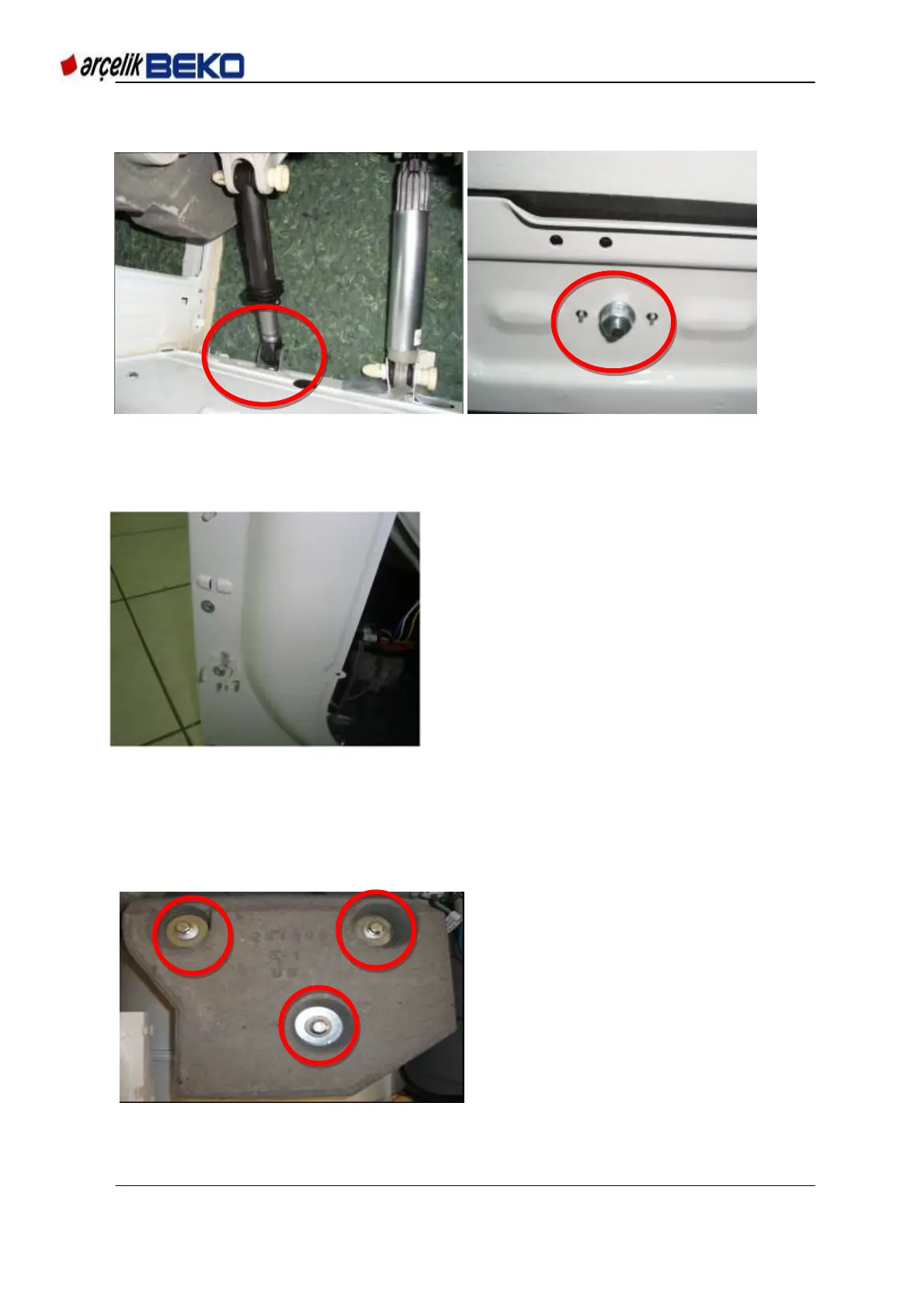

15.18.3. Shock Absorber Attachment / Detachment
Picture 15.99 Shock Absorber
3. Shock absorber attachment is made by fitting it to the chassis at the bottom of the
machine by means of 1 nut and shock absorber pin to the drum side.
Picture 15.100
15.19. Upper Balance Weight Attachment / Detachment
Upper table is removed.
Upper balance weight is taken by removing the fitting bolts.
Picture 15.101 Upper balance weight
