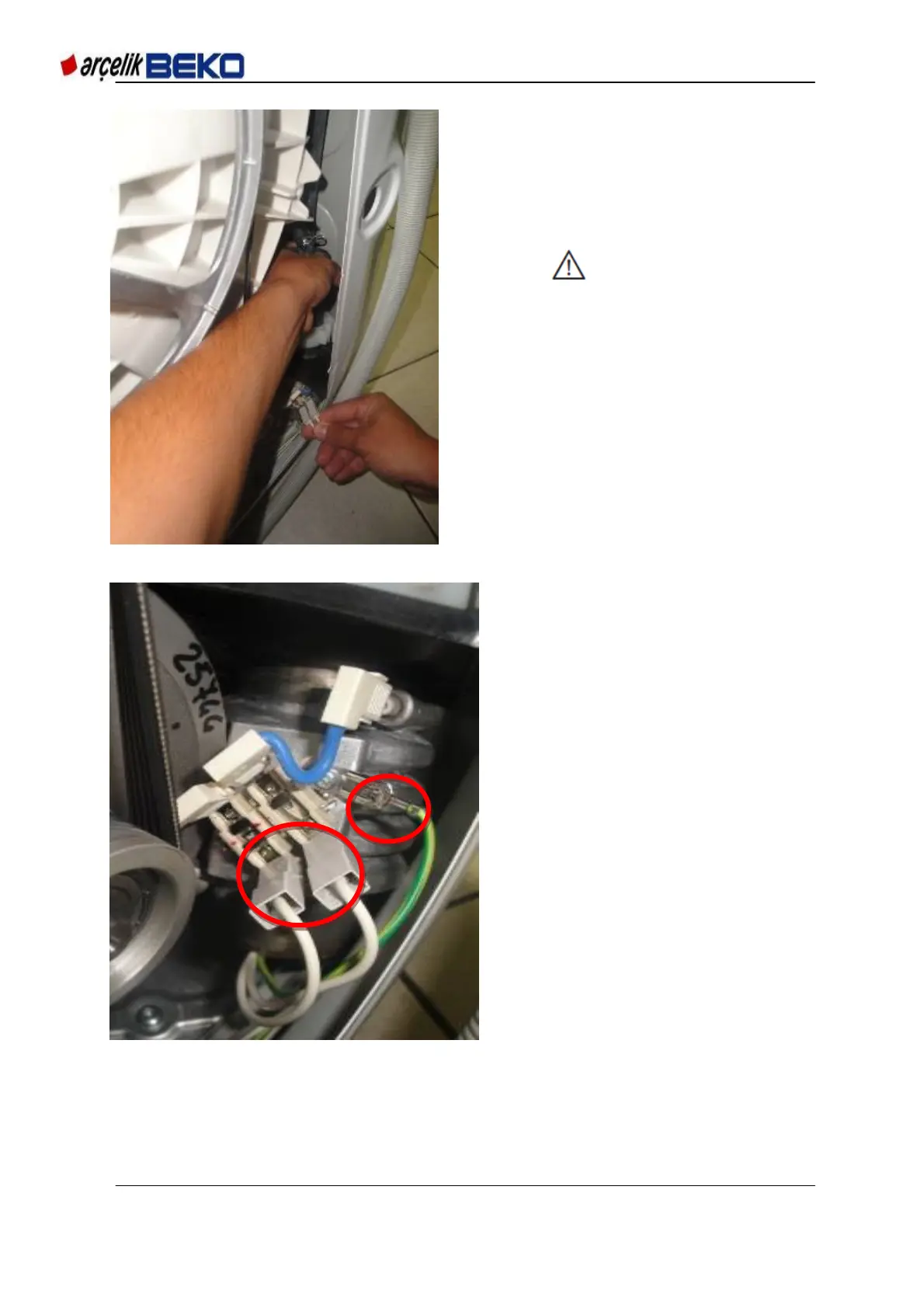

Picture 15.45 Removal of steam generator
Picture 15.46 Steam generator electrical connection
Left hand is put into the back of the
machine to turn the steam generator as
the cable sockets are visible.
Safety gloves should be used in
the process to protect the wrist
and hand from sharp edges.
Two white power cables and 1
yellow&green ground cable are
removed. Care should be paid not to
bend or break the terminal ends when
removing the cables.
