B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
152
Picture 15.54
Picture 15.55

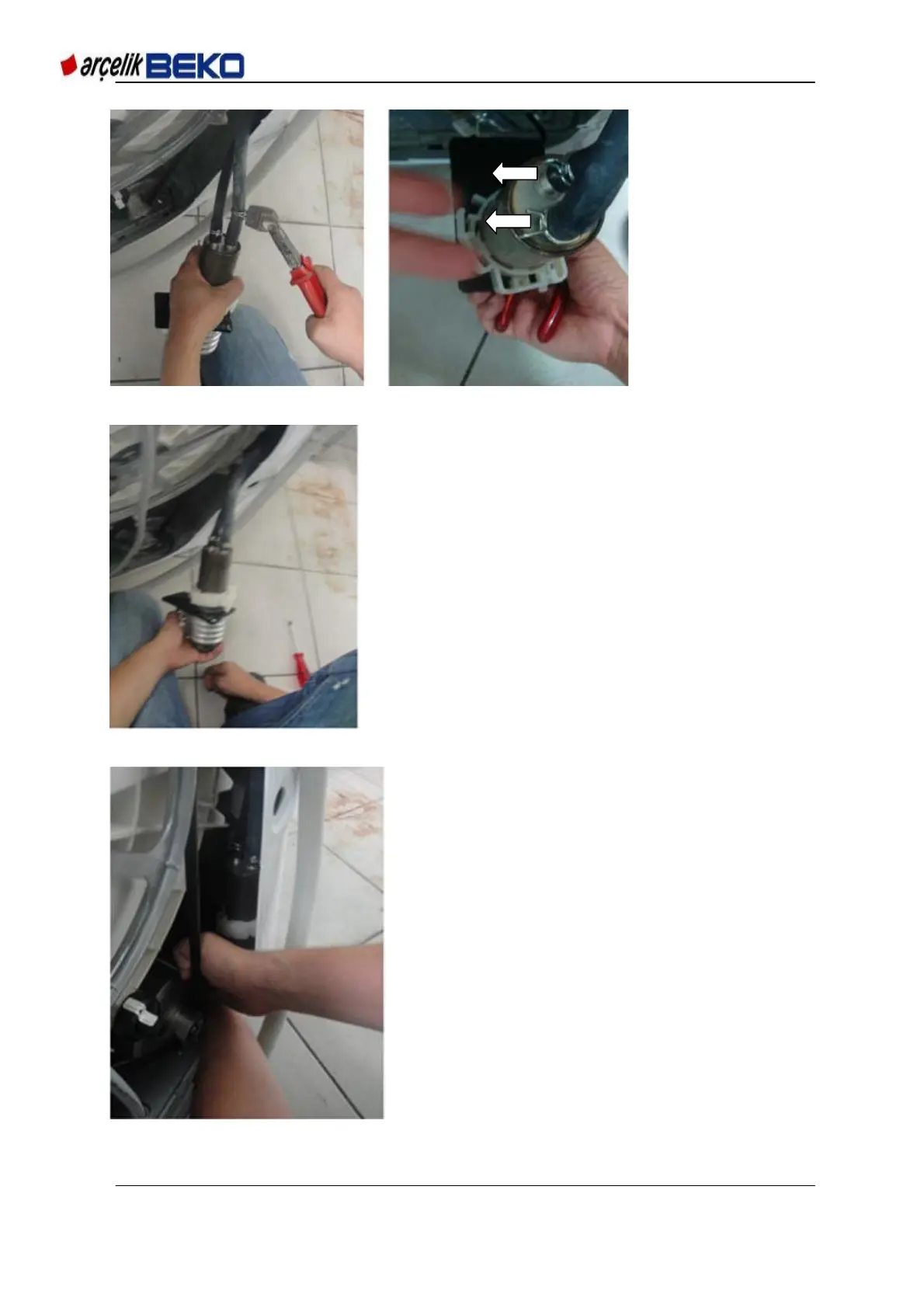

Picture 15.56 Placing the steam generator in the machine
To put the steam generator
into the body, drum should be
pulled sideways by right hand
and the generator should be
put into the body with the left
hand.
Care should be paid not to damage
the belt during this process.
Generator should not be pulled too
much when it is put into the body
and care should be paid to protect
its hoses from damaging due to
sharp edges.
