B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
81
9.9. Input Impedance Coil
Input impedance coil assembly is a coil that consists of winding and core. It is a part used for
compliance to electromagnetic conformity standards and functions as harmonic filter. It is
located between the motor and mains, therefore, motor current passes over this component.

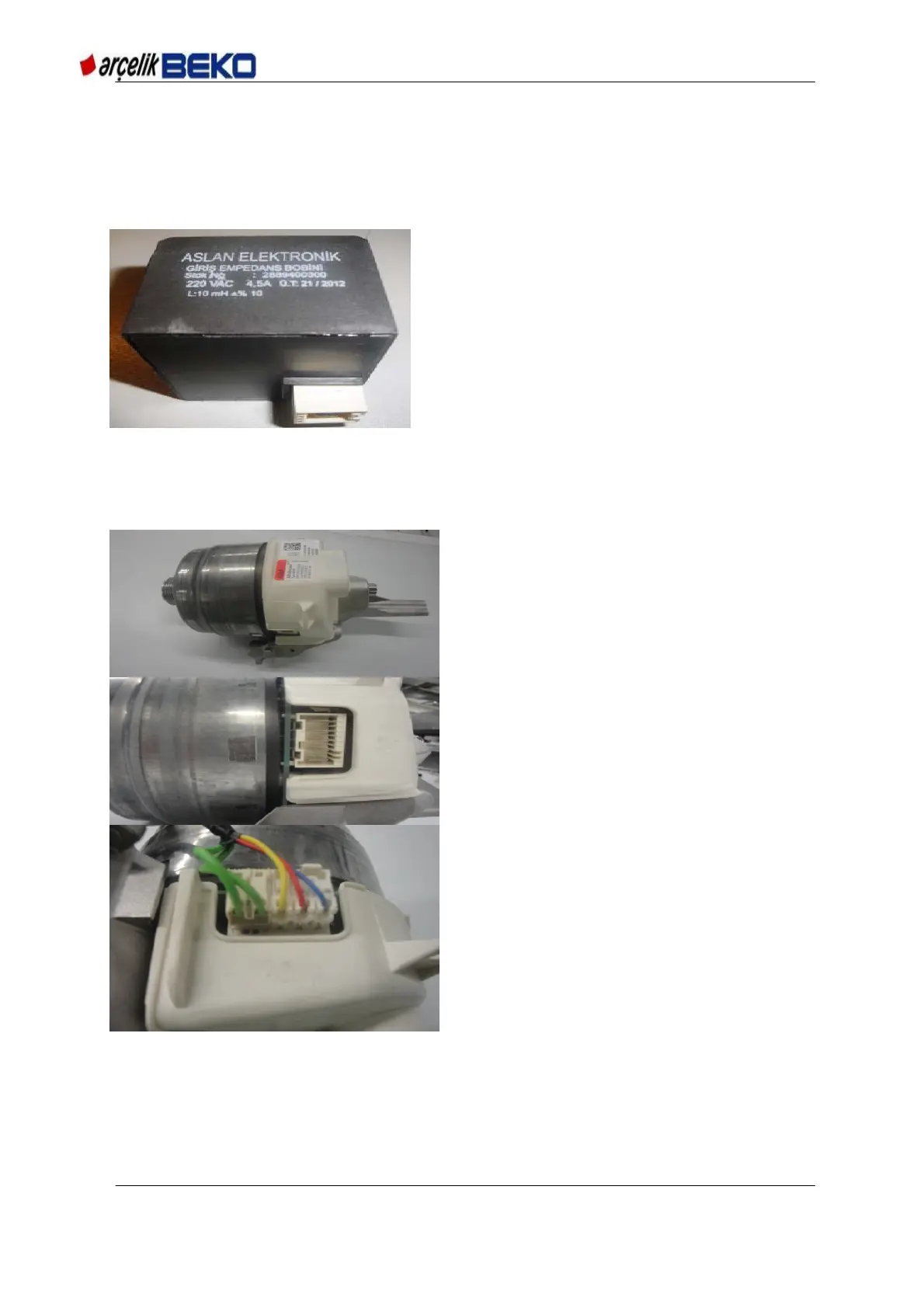

Picture 9.15 Input impedance coil
9.10. Wash Motor
9.10.1 Askoll Motor
Picture 9.16 Askoll Motor (Askoll motor ve motor card)(Integrated)
Operation Voltage : 230V – 50/60Hz
Power : 900W
Apparatus is prepared for control.
Information about apparatus will be
given in the next revision.
