 Upper table is removed.
 Single valve cable ends are taken out.
 Hose bracket of single valve is pulled backwards on the hose.
 Hose is taken from the end on the valve.
 Cam on the back side of the body fitting the valve to the body is pushed inwards by a
scredriver and the valve is turned to left.
15.8. Triple Valve Attachment / Detachment
 Upper table is removed.
 Valve cables are taken out.
 Hose bracket is pulled backwards on the hose.
 Valve hoses are taken out.
15.9.Steam Generator and Parts' Attachment / Detachment
15.9.1 Steam Generator Detachment

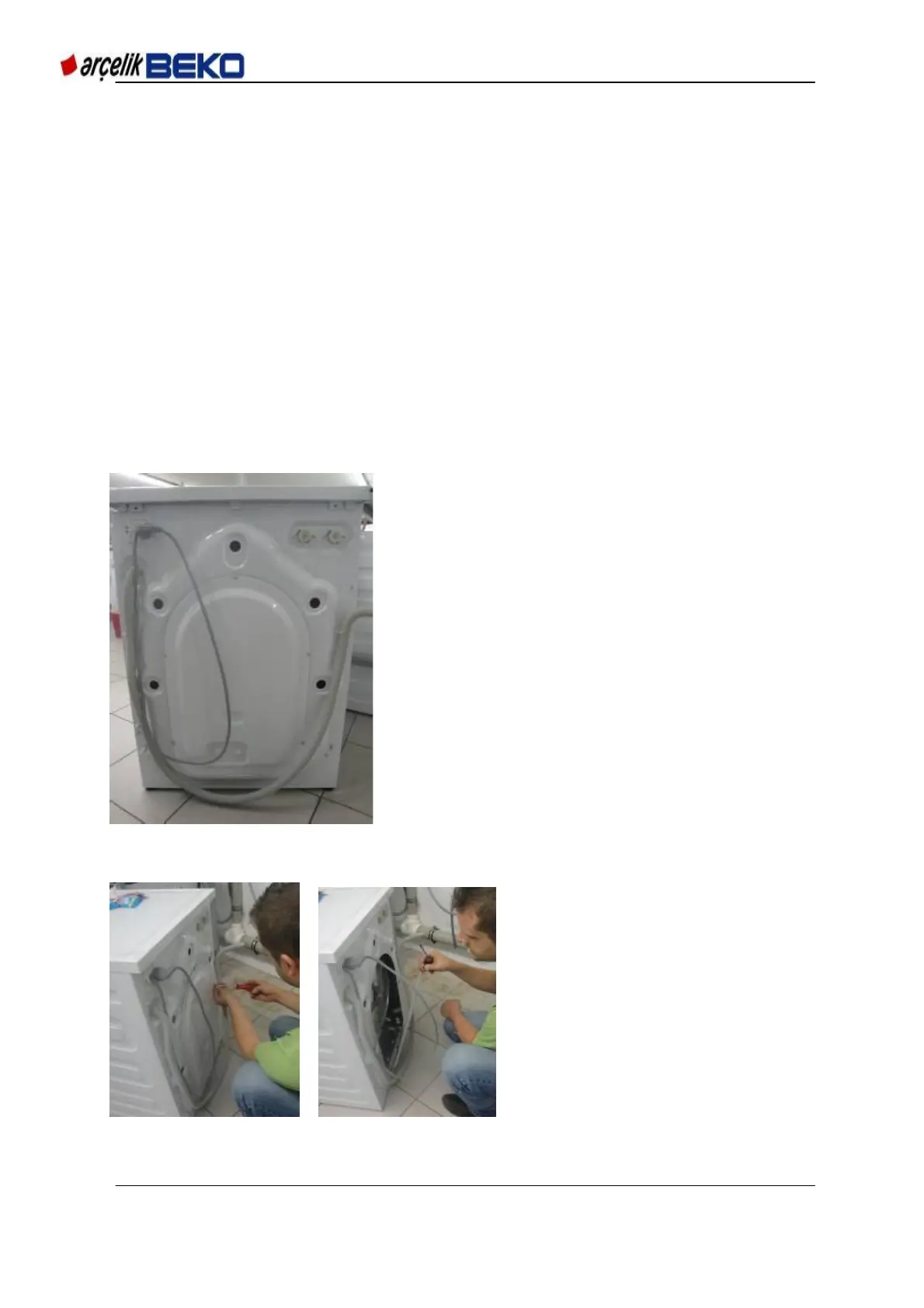

Picture 15.41 Steam generator connection
Picture 15.42
Detachment of steam
generator is performed on the
back part of the machine.
Mains cable of the machine,
mains hose and drain hose
must always be removed
Raer cover screws are removed
and the rear cover is taken out.
