B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
151

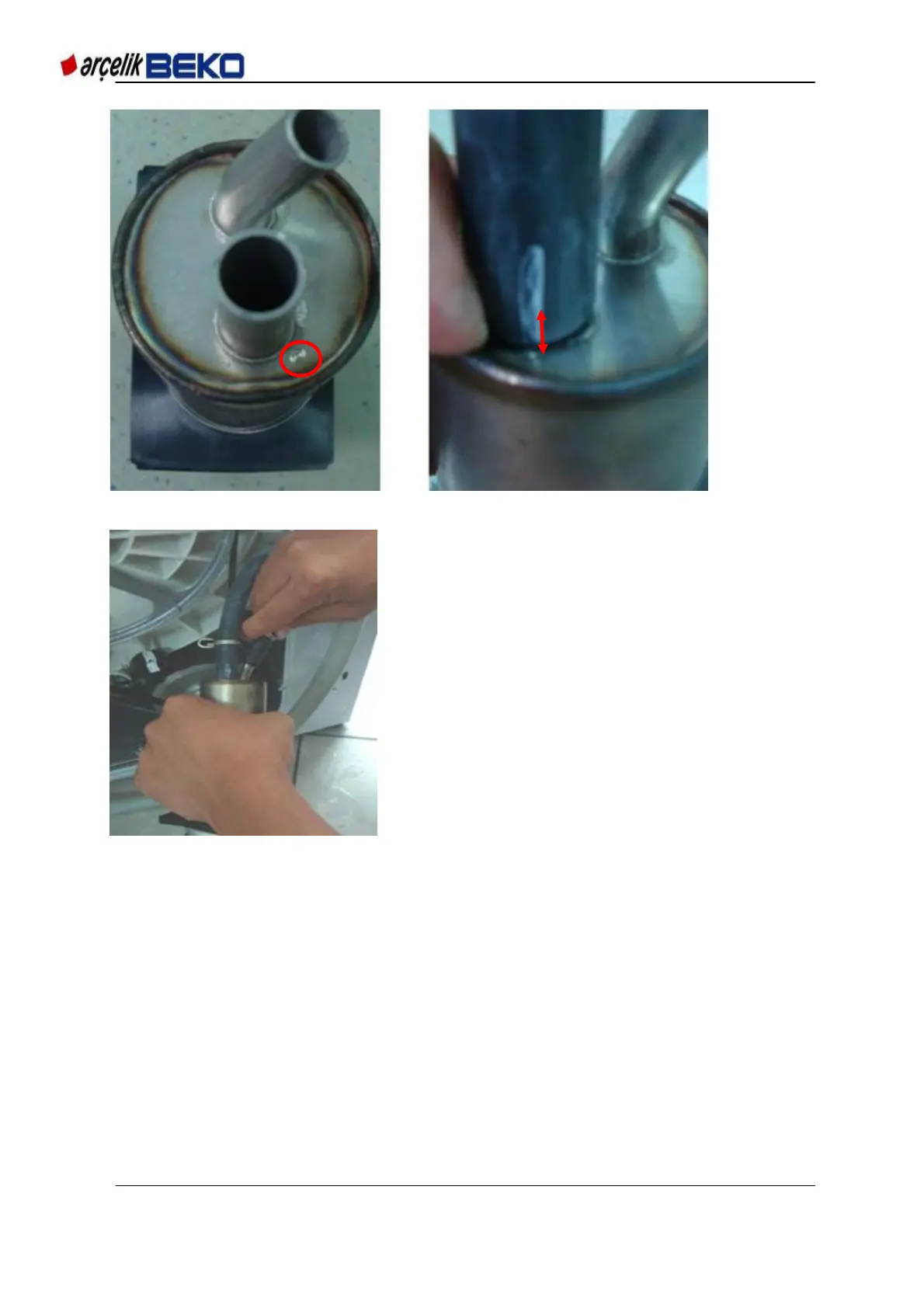

Picture 15.52
Picture 15.53
Brackets must be fitted after the hoses are attached. Indice must be checked.
Water intake hose has a small
diameter. There is not indice
on it. It provides water
transportation between the
valve and generator. Water
intake hose must be mounted
to the tilted pipe on the
generator. Attaching it up to
the tilted part will be sufficient.
To Next Page
