B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
147

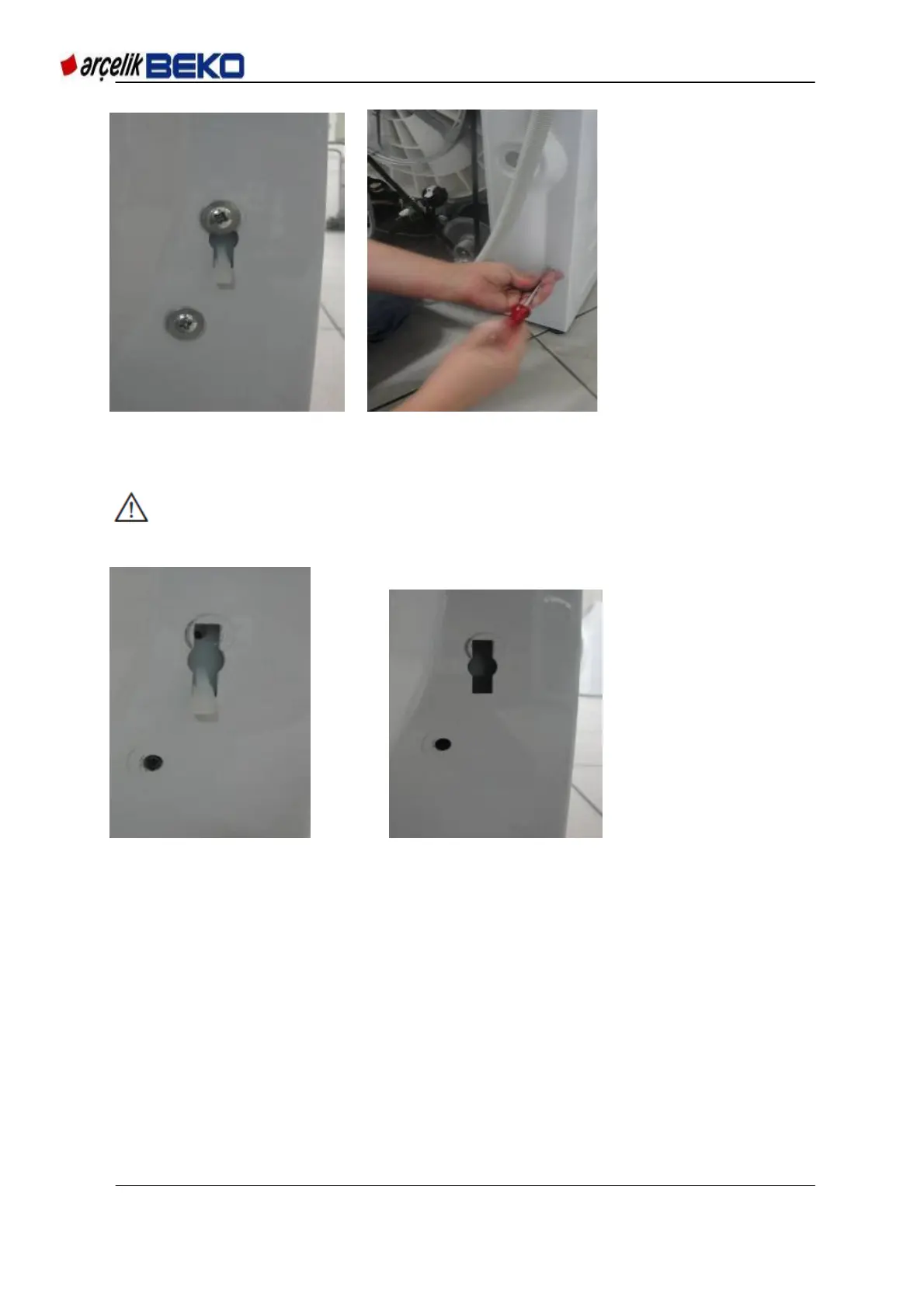

Picture 15.43
Left hand should be put into the back of the machine to hold the steam generator and lifted
upwards to take the hook of the steam generator off the body.
Safety gloves should be used in the process to protect the wrist and hand from sharp
edges.
Picture 15.44 Steam generator hook
Two screws holding the steam
generator are removed.
To Next Page
