B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
149

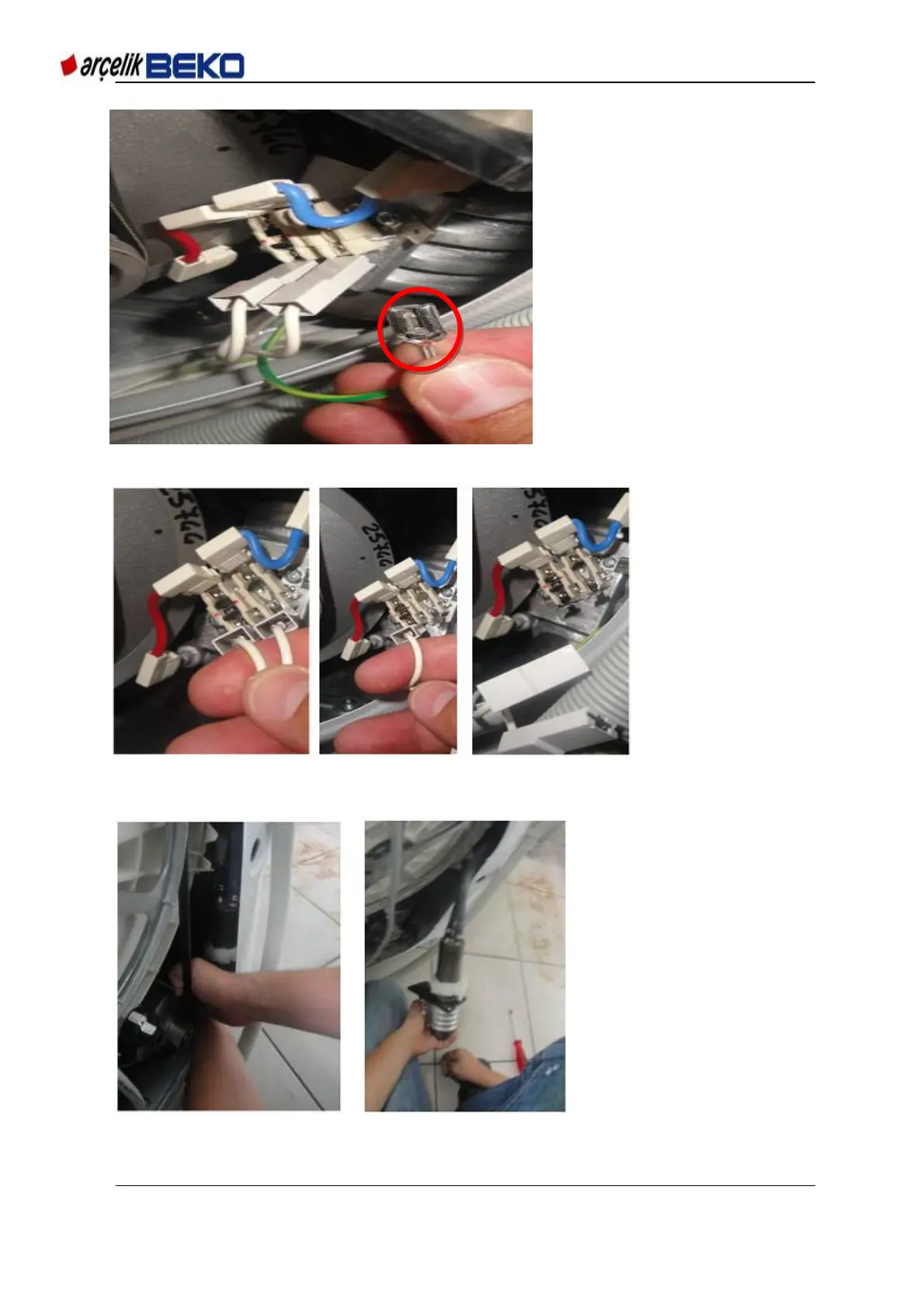

Picture 15.47
Picture 15.48
Picture 15.49
As the ground cable is locked,
it must be removed by pressing
the lock in its bottom part.
Two power cables must be
removed carefully.
To take the steam generator out of
the body, drum should be pulled
sideways by right hand and the
generator should be taken out with
the left hand. Care should be paid
not to damage the belt during this
process. Generator should not be
pulled too much when it is taken
out and care should be paid to
protect its hoses from damaging
due to sharp edges.
