15.6. Detergent Box Attachment / Detachment
15.6.1. Attachment
Detergent box is put in its place in the body prior to front wall attachment; input hose
connections such as drum input hose, valve connection and steam generator hose groups
are made. No screw of the detergent box will be attached; detergent box will be held in its
place by means of drum input hose and detergent box ear located on the upper part of side
body.

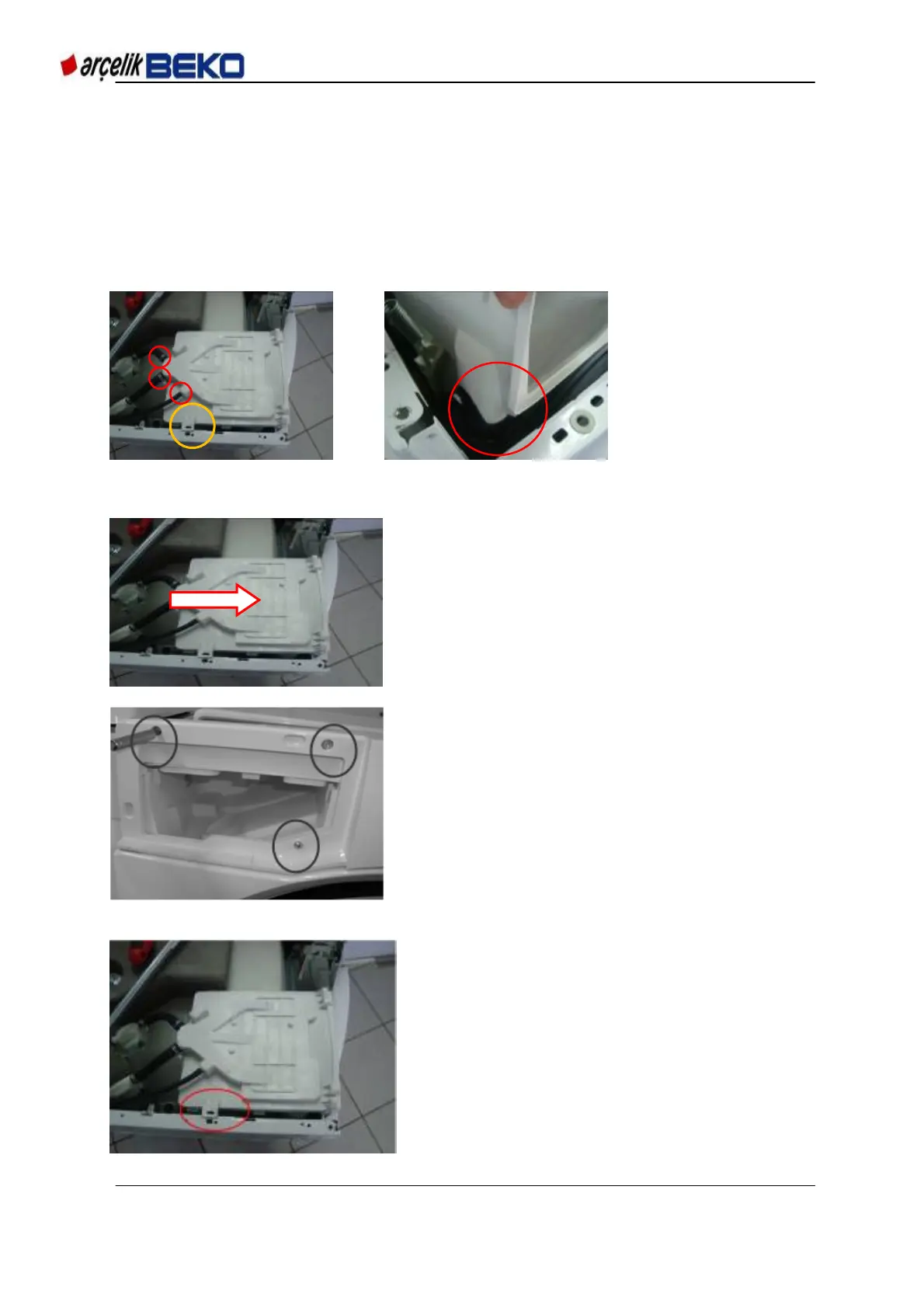

Picture 15.31 Picture 15.32
Following this, panel assembly attachment is carried out as described.
Picture 15.33 Detergent box attachment
Picture 15.34
Picture 15.35
After the panel assembly is
attached to its place, detergent
box will be pushed frontwards
to touch with the bolt on the
front surface panel assembly.
Attachment is completed by
fitting the 3 screws on the
panel assembly and 1 screw
on the body side skirt as
shown in Picture 15.40 and
Picture 15.41.
