B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
76
9.5. Steam Generator
Prepares water vapour for steam applications of machine.

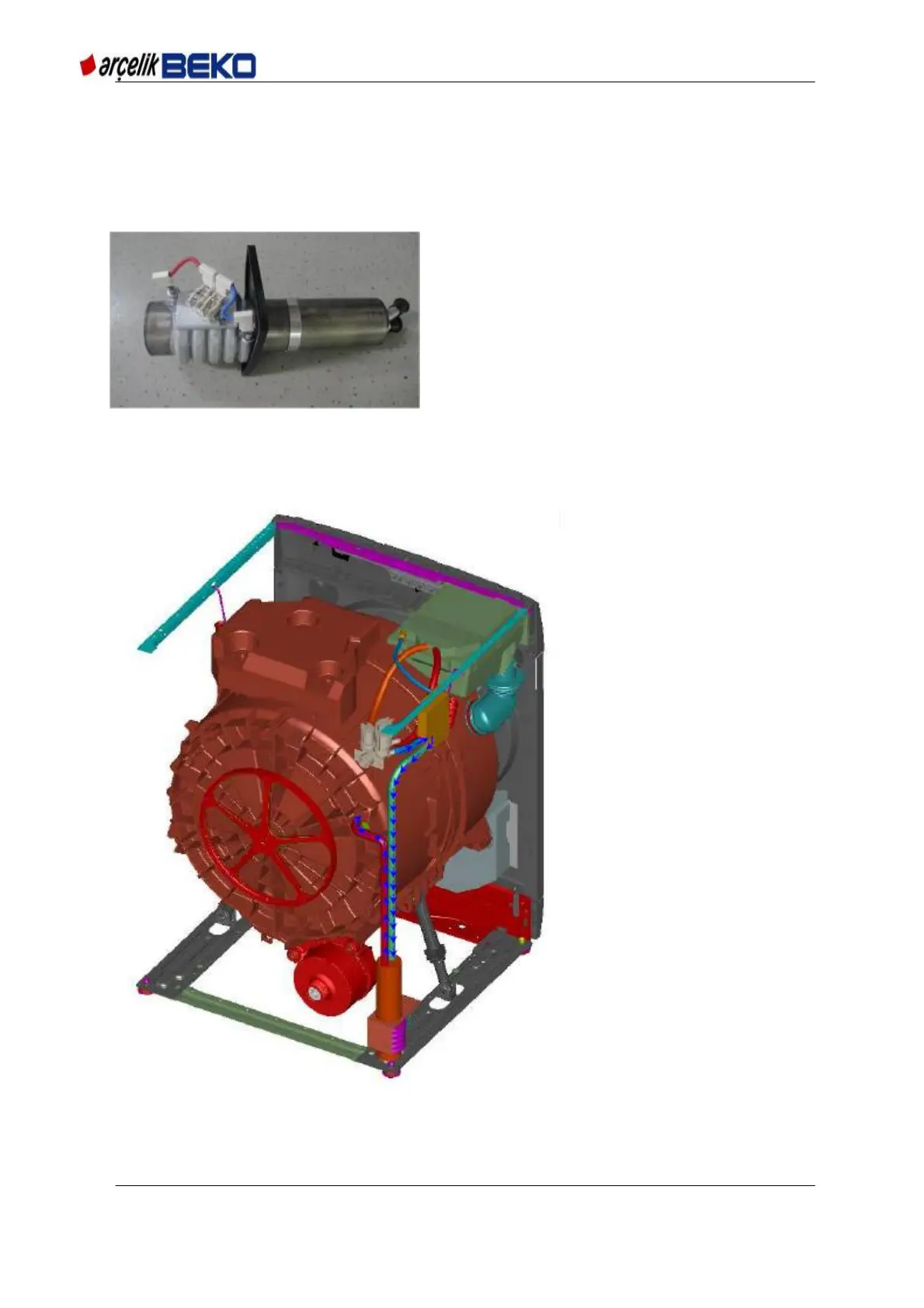

Picture 9.8 Steam generator
9.5.1. Operation Principle
Figure 9.3 Steam generator operation principle - 1
Operation Voltage : 220 / 240V
Flow rate : 1 l/min.
Resistance : 42 / 47
Coil resistances are measured. If between 42 / 47
component is sound.
Water in the drum is drained.
Water is taken from the steam
valve.
Generator is filled with water.
Overflown water level in the drum
is measured.
Steam valve is driven and when
there is 10.0 Hz increase in the
drum, generator is considered full,
the valve is switched off and
heating phase starts.
Water taken into the drum is
drained again.
