B13 BETTER (B13 BEST APPEARANCE) WASHING MACHINE SERVICE HANDBOOK
77

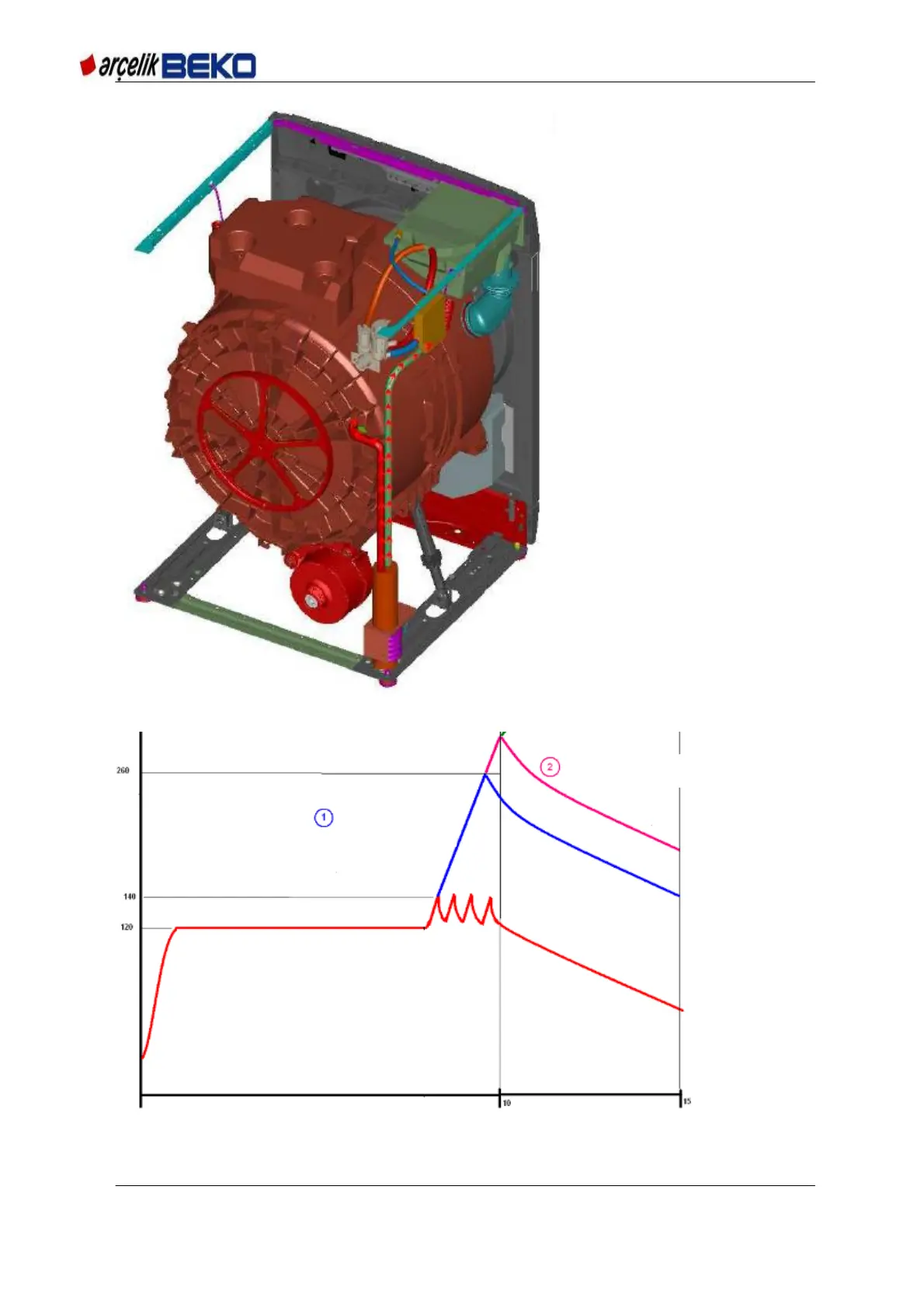

Figure 9.4 Steam generator operation principle - 2
Figure 9.5 Steam generator operation principle - 3
Relay on the card drives the
generator for 10 minutes.
First steam formation is observed
in approx. 1-2 min.
Generated steam enters into the
drum from behind the drum.
If the generator runs out of water in
10 minutes, thermostat
temperature reaches 140C and
cuts the power of the generator,
then, if the temperature drops to
125C, it is reactivated.
Next step starts after 10 minutes.
In this step, washing movement is
performed for 5 minutes with the
steam in the drum.
In case of thermostat
failure,thermofuse will shut
off at 260°C
In case of thermostat and
thermofuse failure,the relay
will shut off after 10 minutes
Normal Operation:
Temperature will be steady at 120C during steam
generation when the water at the generator
decreases,temperature will rise and thermostta will
shut off at 140°C and turn on when the temperature
drops to 125°C.
Total step duration is 10 minutes.
TIME (minute)
