15.22. Jet System Assembly Attachment / Detachment

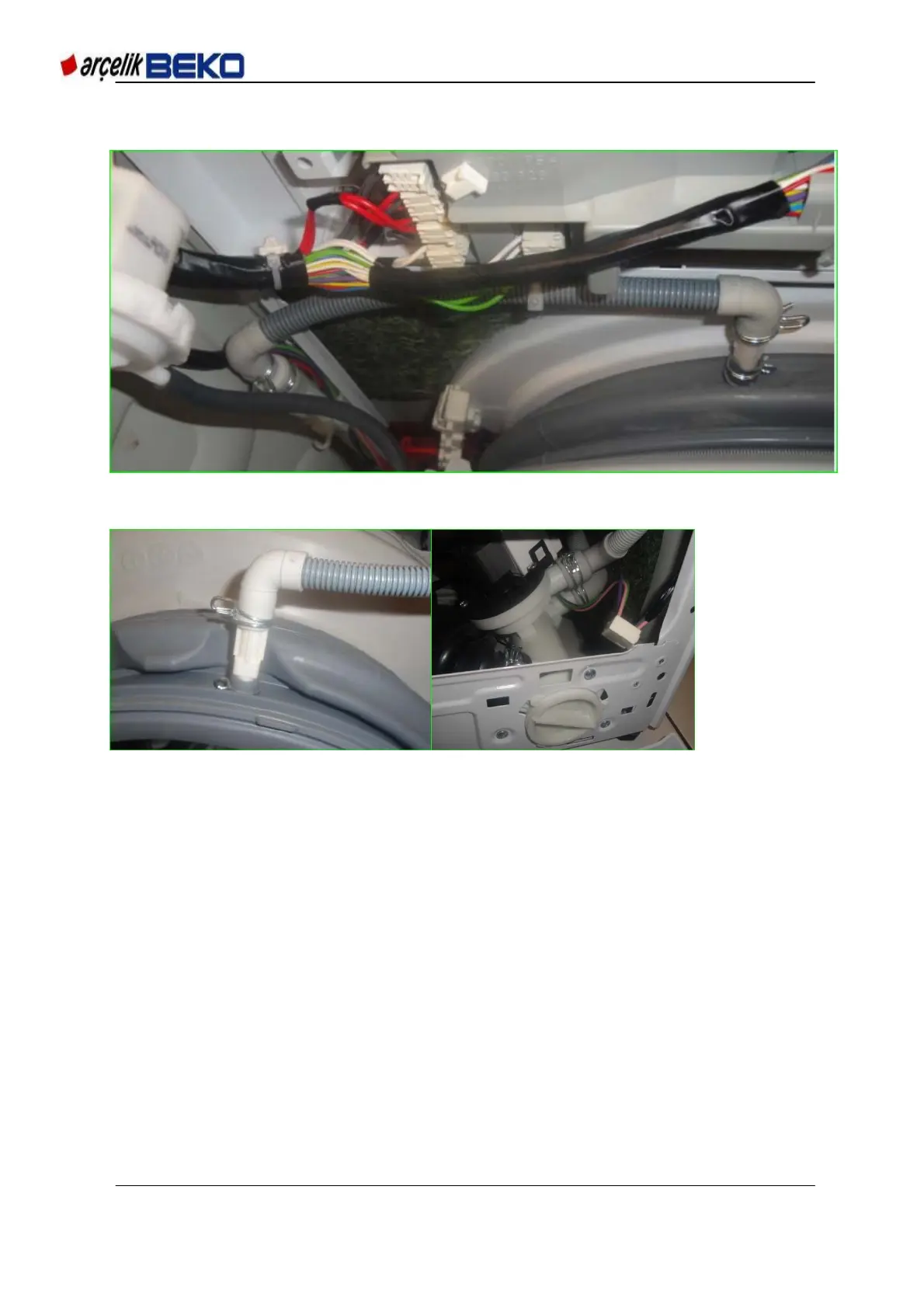

Picture 15.104 Jet system assembly
Resim 15.105
Jet system pump connection hose brackets are removed from bellows connection and
pump connection to take them out. While attaching the pump connection hose, hose
direction should face the front wall and it should not be twisted. Cable group must be
connected to the side body panel by means of hose holders on it.
Before performing the bellows connection hose attachment, water direction of nozzle
on the bellows should be towards inside the drum. After making the hose attachment,
hose should be connected to the panel support bracket by means of a plastic bracket.
15.23. Water Input Hose Attachment / Detachment
 Upper table is removed.
 Panel is removed.
 Front wall is removed.
 Bracket connecting the other end of the Water Input Hose to the drum is removed.
 Opening connecting the water input hose to the detergent box is securely fitted in its
place in the box and rubber hook is snapped into the cam in the box.
