CHAPTER53 System Status
Mediant 800 Gateway & E-SBC | User's Manual

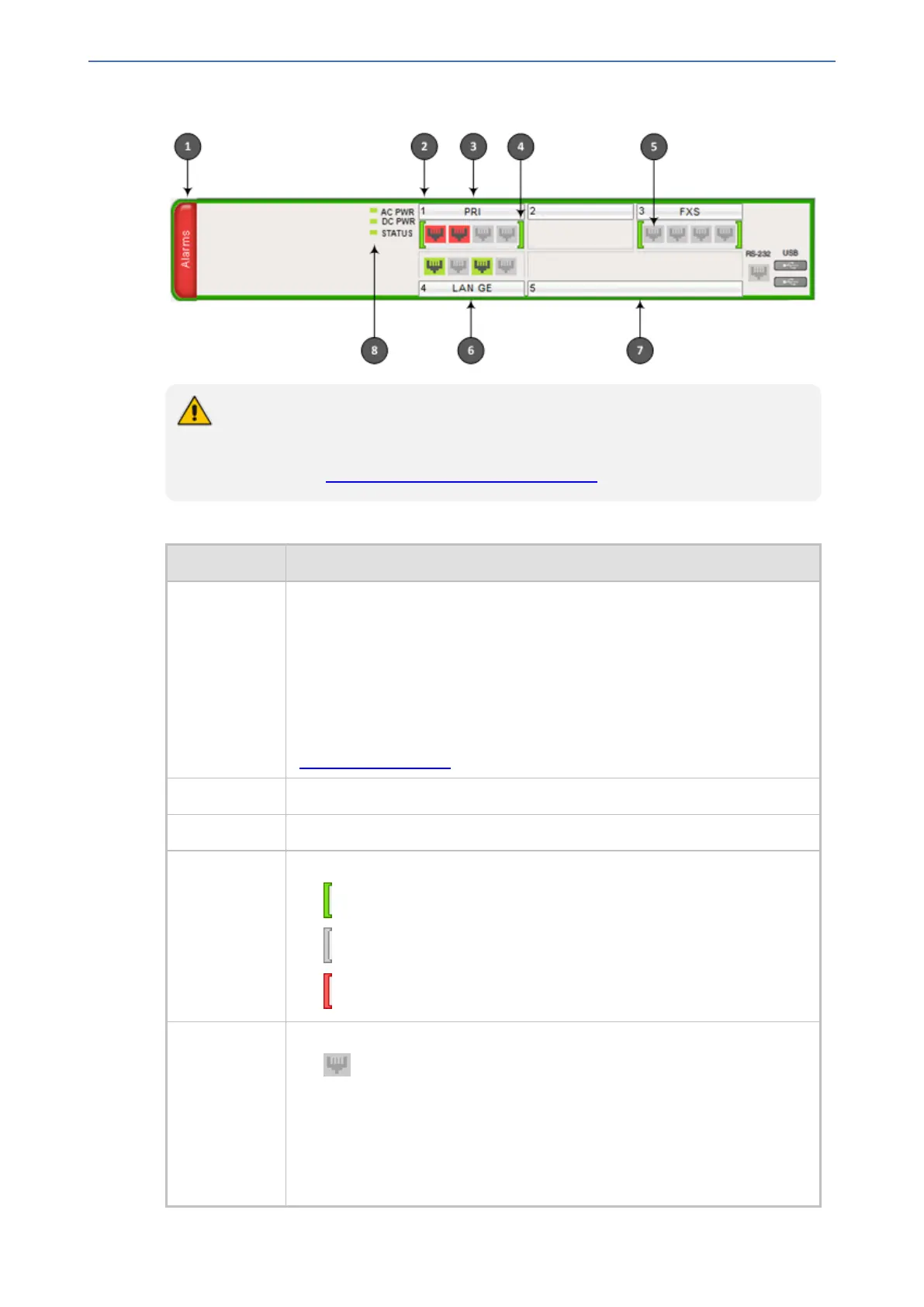

Figure 53-2: Graphical Display of Device on Monitor Page - Mediant 800 Gateway & E-SBC H/W Rev. C
● The figure above is used only as an example as the graphical display of your device
in the Web interface reflects your specific ordered hardware configuration.
● For a description of the Monitor page when the device is in High Availability (HA)
mode, see HA Status Display on Monitor Web Page.
Table 53-2: Description of Graphical Display of Device on Monitor Page
Item #1 Description
1 Alarms: Displays the highest severity of an active alarm raised (if any) by
the device:
■ Green = no alarms
■ Red = Critical alarm
■ Orange = Major alarm
■ Yellow = Minor alarm
To view active alarms, click Alarms to open the Active Alarms page (see
Viewing Active Alarms).
2 Module slot number.
3 Module interface type.
4 Module status icon:
■ (green): Module has been inserted or is correctly configured
■ (gray): Module was removed and "Reserved" is displayed
■ (red): Module failure and "Failure" is displayed
5 Port analog channel status icon:
■ (gray):
✔ FXS (one of the following):
The port is physically connected to an FXS analog device (e.g.,
telephone), which is in idle state (i.e., on-hook position).
-or-
The port is not physically connected.
