User's Manual 136 Document #: LTRT-50614

MP-20x Multimedia Home Gateway

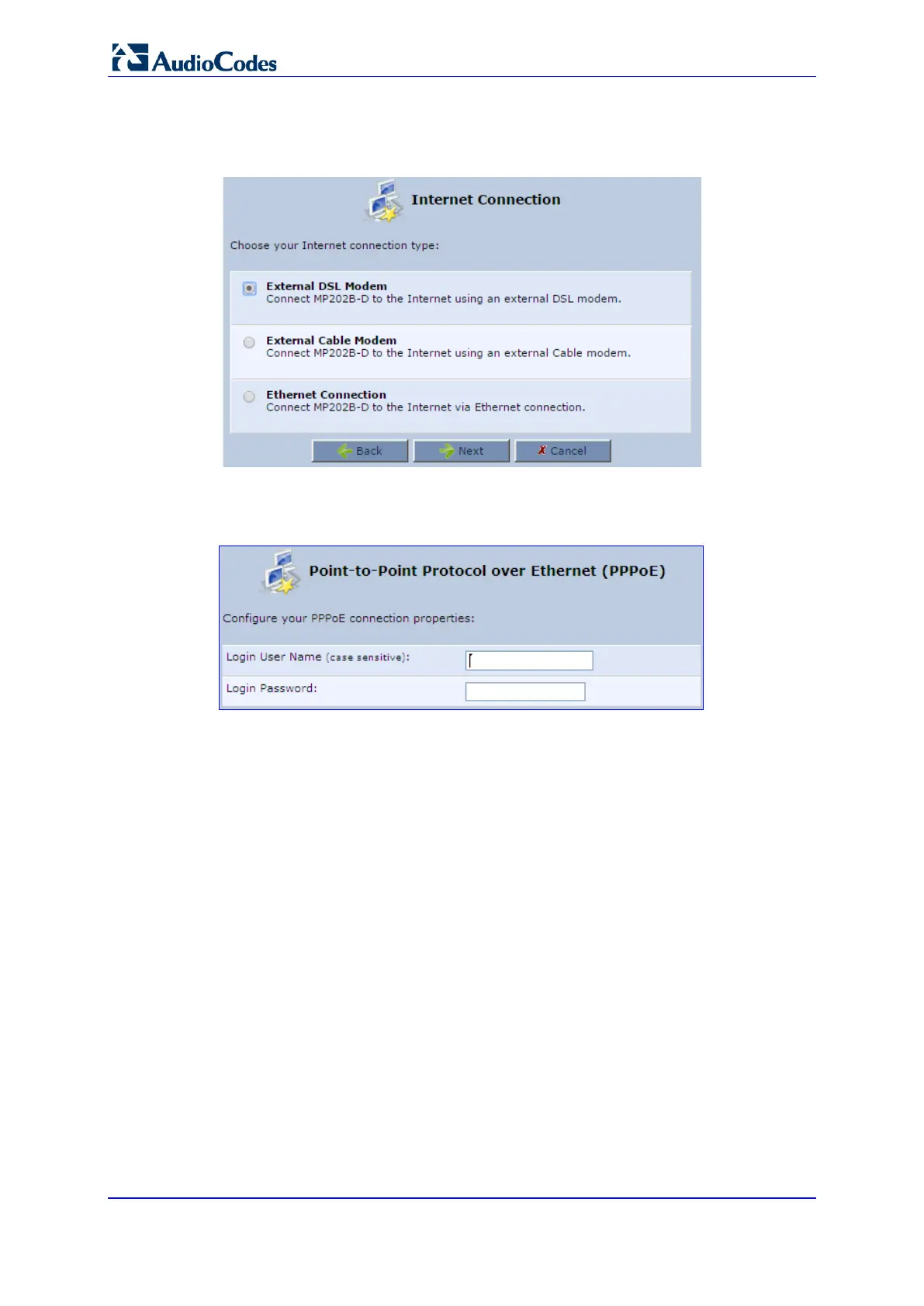

3. Select the Internet Connection option, and then click Next; the ‘Internet Connection’

screen appears.

Figure 12-4: Internet Connection – External DSL Modem

4. Select the External DSL Modem option, and then click Next; the 'Point-To-Point

Protocol over Ethernet (PPPoE)' screen appears.

Figure 12-5: Point-to-Point Protocol over Ethernet (PPPoE) Screen

5. Enter the login PPPoE username and password.
