AudioCodes MP-20 Series - Figure 13-18: Printer Browser

To Next Page

To Previous Page

User's Manual 13. Add-On Servers and Disk Management

Version 4.4.3 187 MP-20x Multimedia Home Gateway

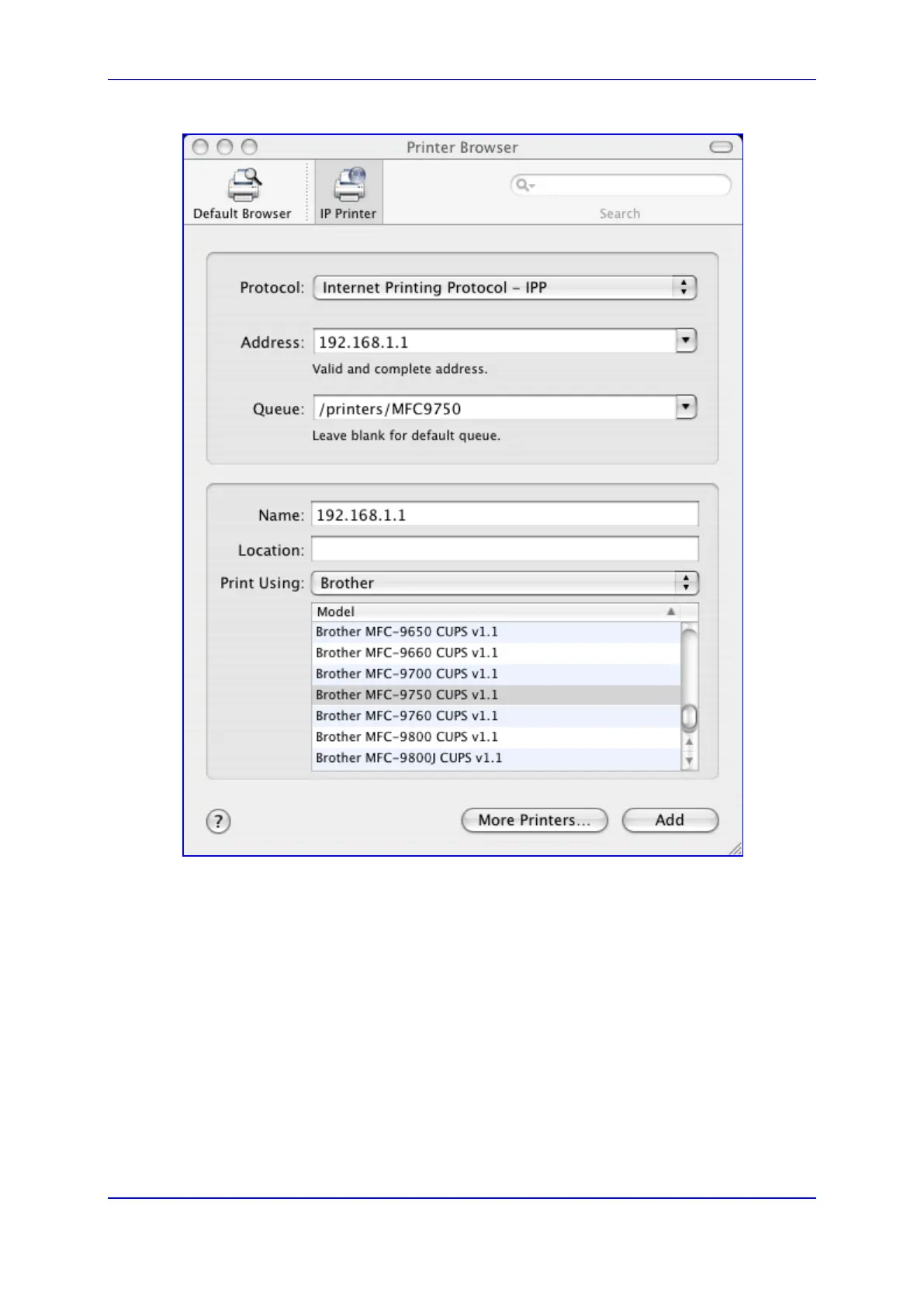

Figure 13-18: Printer Browser – IP Printer

4. In this screen, configure the following:

a. From the 'Protocol' drop-down list, select IPP.

b. In the 'Address' field, enter the device’s IP address (192.168.1.1).

c. In the 'Queue' field, enter the section of the path containing the folder and printer

names, as it appears in the 'Printer' screen. For example, “/printers/MFC9750”.

d. The 'Name' and 'Location' fields are optional; the default name is the gateway's IP

address.

e. From the 'Print Using' drop-down list, select your printer's make and model.
