User's Manual 15. Security
Version 4.4.3 243 MP-20x Multimedia Home Gateway
To add a new port forwarding service:
1. From the menu bar, click the Security menu, and in the screen 'Security', click the
Port Forwarding tab; the screen 'Port Forwarding' opens.

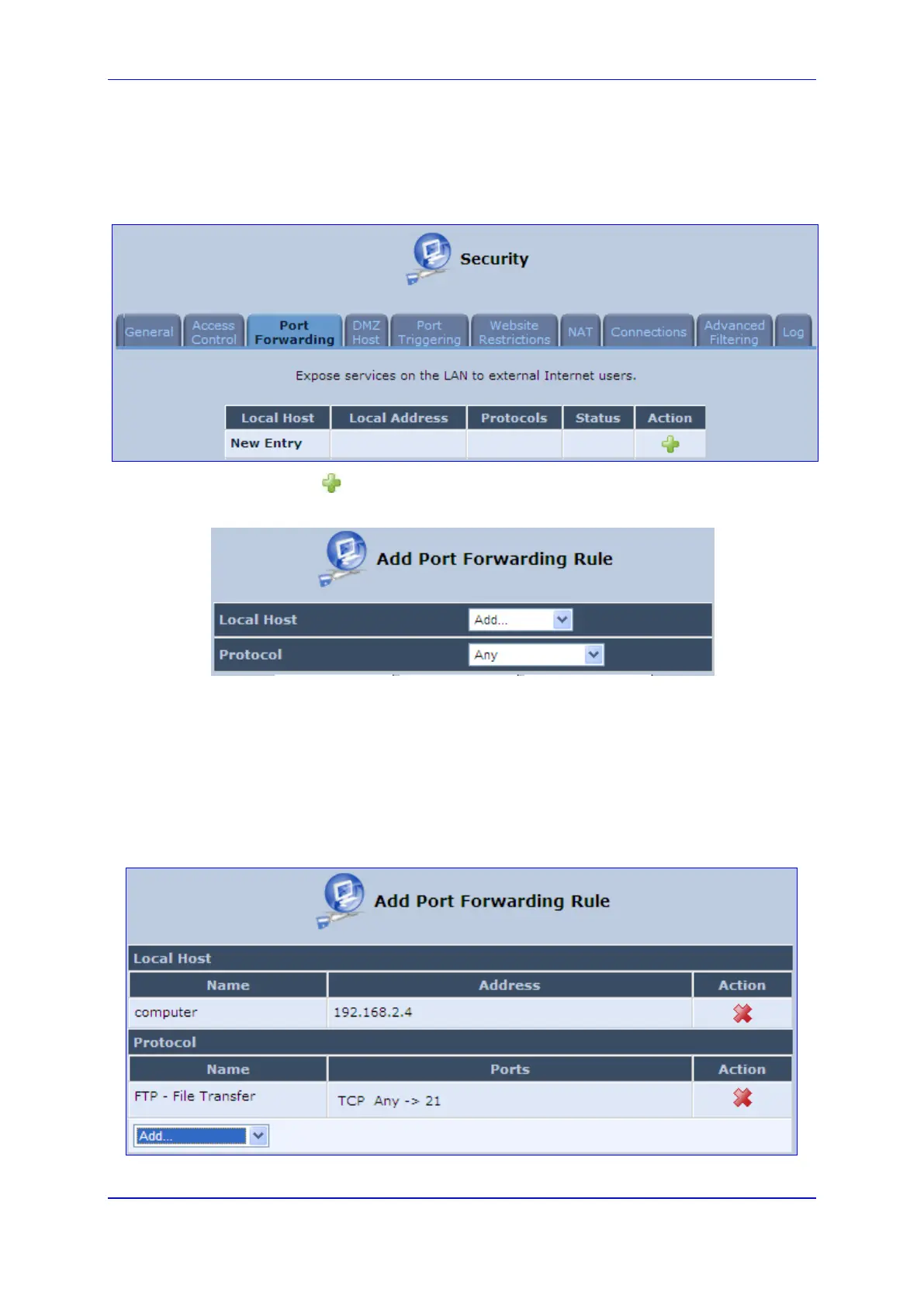

Figure 15-5: Port Forwarding Screen
2. Click the New icon; the screen 'Add Port Forwarding Rule' opens.
Figure 15-6: Add Port Forwarding Rule
3. From the ‘Local Host’ drop-down list, select the network object (defined in
Section 5.6.2 on page 57) or define one now by selecting the ‘User Defined’ option.
This is the IP address or host name of the computer that provides the service (the
'server'). Note: Only one LAN computer can be assigned to provide a specific service
or application.
4. From the ‘Protocol’ drop-down list, select the type of protocol (defined in Section 5.6.3
on page 59) or select ‘User Defined’ to define one now. You can select multiple
protocols for this rule.
Figure 15-7: Selecting Protocol Type
