User's Manual 34 Document #: LTRT-50614

MP-20x Multimedia Home Gateway

4.2 Configuring SIP Signaling Protocol

The procedure below describes how to configure the SIP Signaling Protocol.

 To configure the SIP Signaling Protocol:

1. Click the ‘Voice Over IP’ menu in the side menu bar; the ‘Voice Over IP’ screen

appears.

2. On the ‘Signaling Protocol’ page, enter the Host Name or Address.

3. Under the SIP Proxy and Registrar group, select the 'Use SIP Proxy IP and Port for

Registration' check box.

4. Enter the Host Name as shown in the following screen:

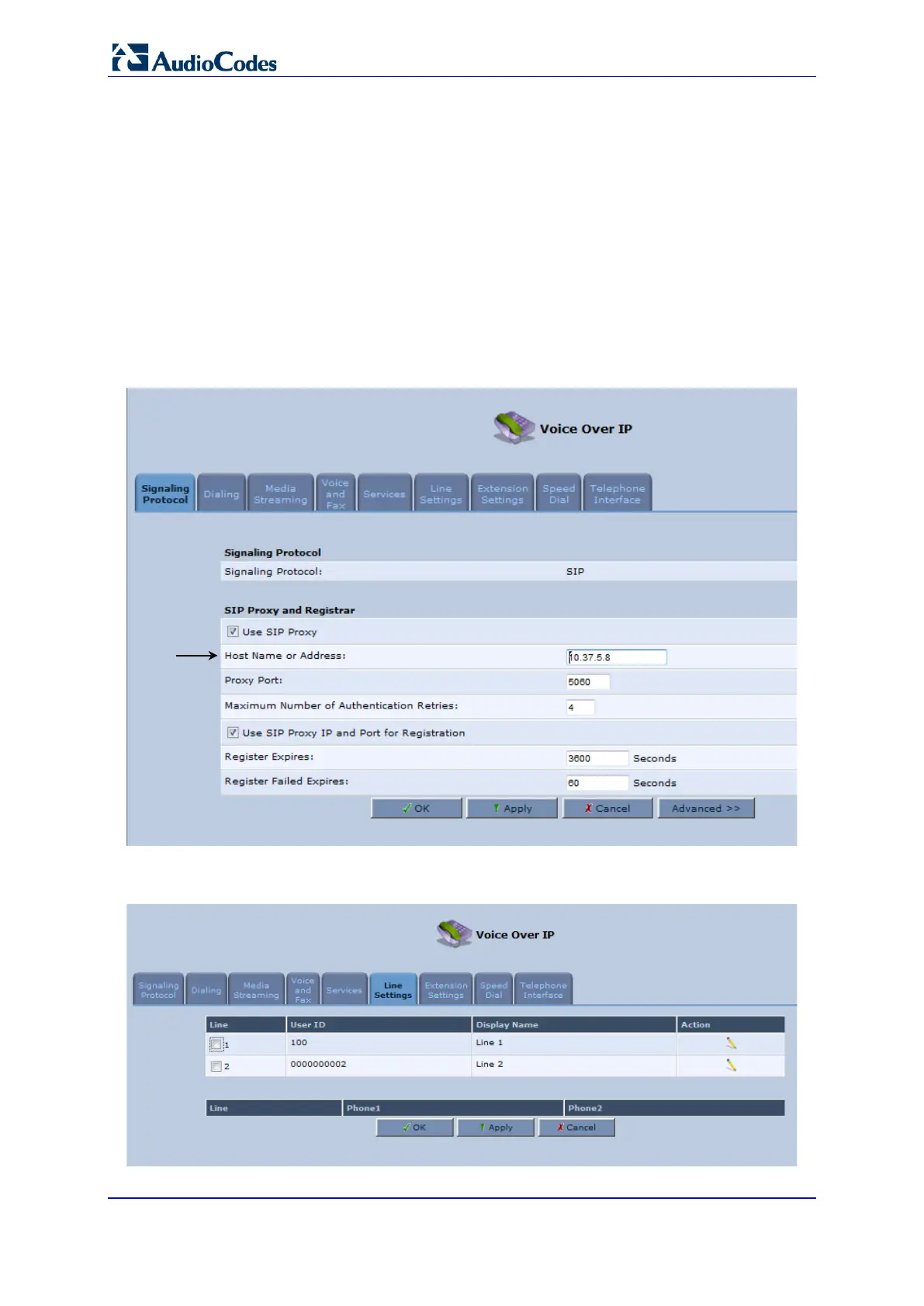

Figure 4-2: Signaling Protocol

5. Click the Line Settings tab; the following screen appears.

Figure 4-3: Line Settings
