User's Manual 21. Diagnostics and Performance Monitoring
Version 4.4.3 325 MP-20x Multimedia Home Gateway
21 Diagnostics and Performance Monitoring
This chapter provides diagnostics and performance monitoring procedures.
21.1 Running Diagnostics
The Diagnostics icon allows you to test network connectivity. In addition, it allows you
to view statistics such as the number of packets transmitted and received, round-trip time,
and success status. The test tools are platform-dependent and are not available
simultaneously.
The Diagnostics icon displays the ‘Diagnostics’ screen, as described below.
To access the 'Diagnostics' screen:
1. On the 'Advanced' screen, click the icon; the following screen appears.

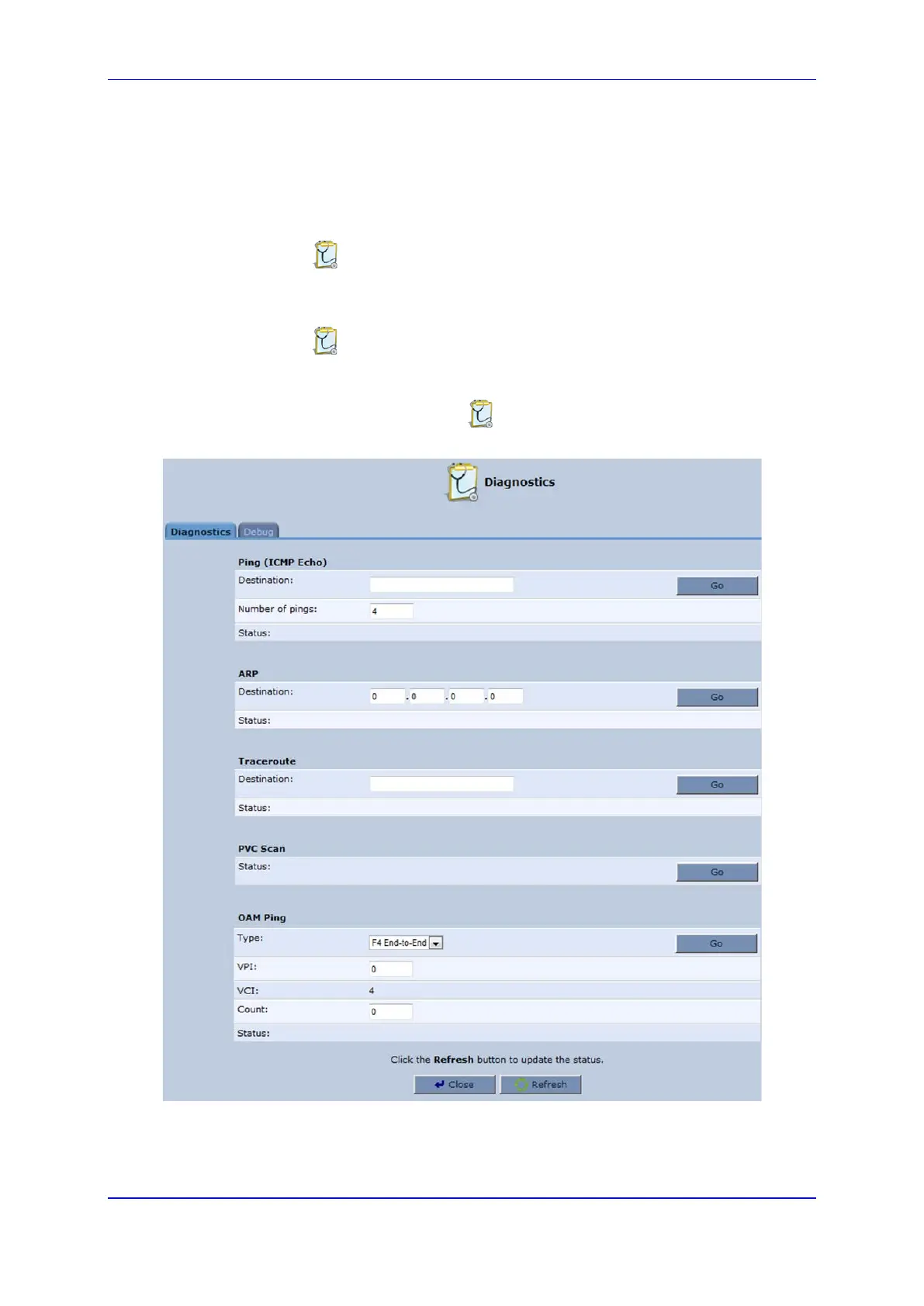

Figure 21-1: Diagnostics Screen
2. Click the Diagnostics tab.
