User's Manual 164 Document #: LTRT-50614
MP-20x Multimedia Home Gateway
5. In the 'VLAN ID' field, enter a value to serve as the VLAN ID, and then click Next; the
'Connection Summary' screen appears.

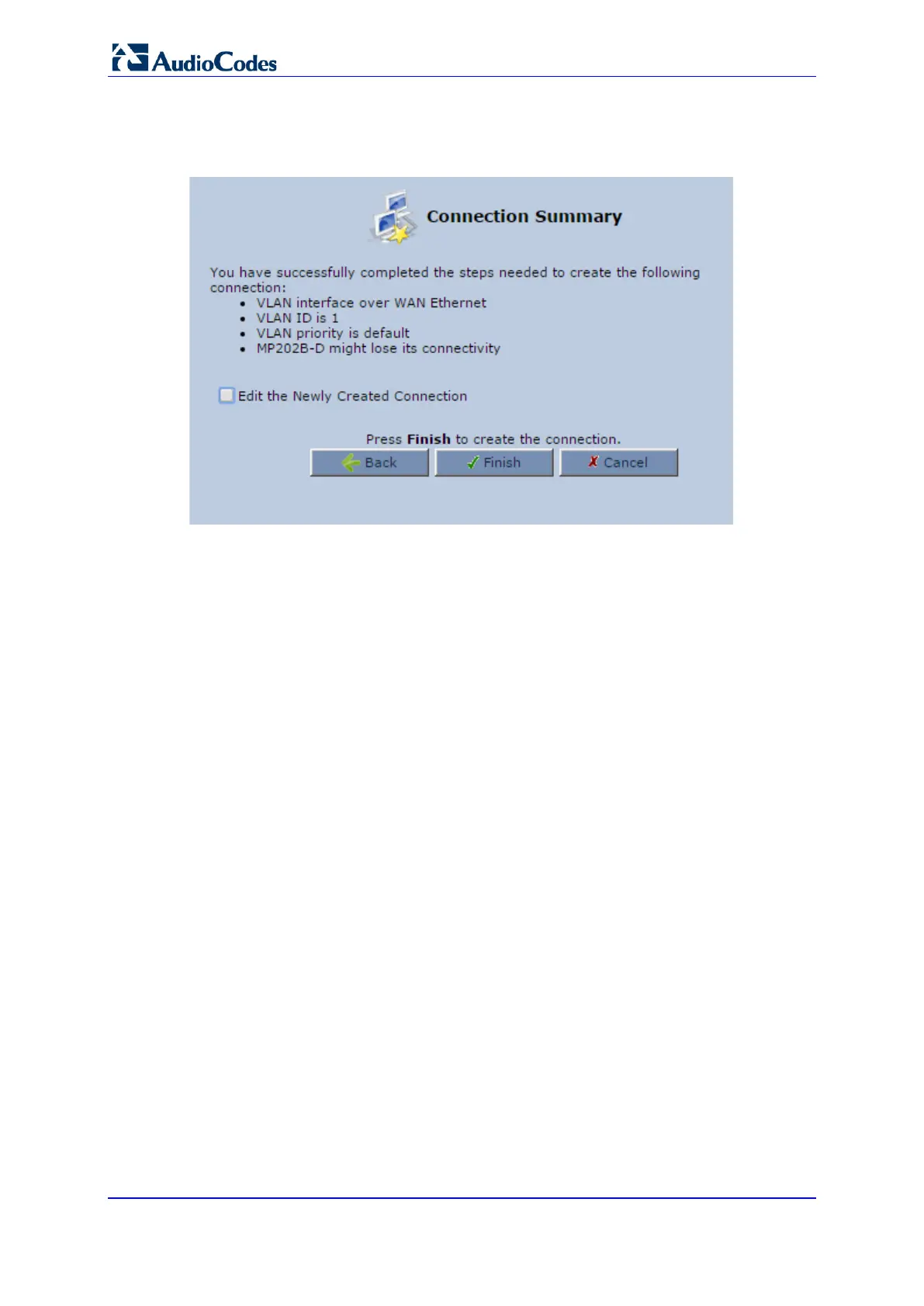

Figure 12-45: Connection Summary
6. Check the 'Edit the Newly Created Connection' check box to be routed to the new
connection's configuration screen after clicking Finish.
7. Click Finish to save the settings; the new VLAN interface is added to the network
connections list; it’s configurable like any other connection.
