Page 4–162
DURApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Chapter 4: AC Drive Parameters
Type Hex Addr Dec Addr
P6.65 Dwell Time at Accel
♦R/W 0641 41602
P6.66 Dwell Frequency at Accel
♦R/W 0642 41603
P6.67 Dwell Time at Decel
♦R/W 0643 41604
P6.68 Dwell Frequency at Decel
♦R/W 0644 41605
Range/Units Default
P6�65, P6�67 Time: 0�00~600�00 sec
P6�66, P6�68 Frequency: 0�00~600�00 Hz
0�00

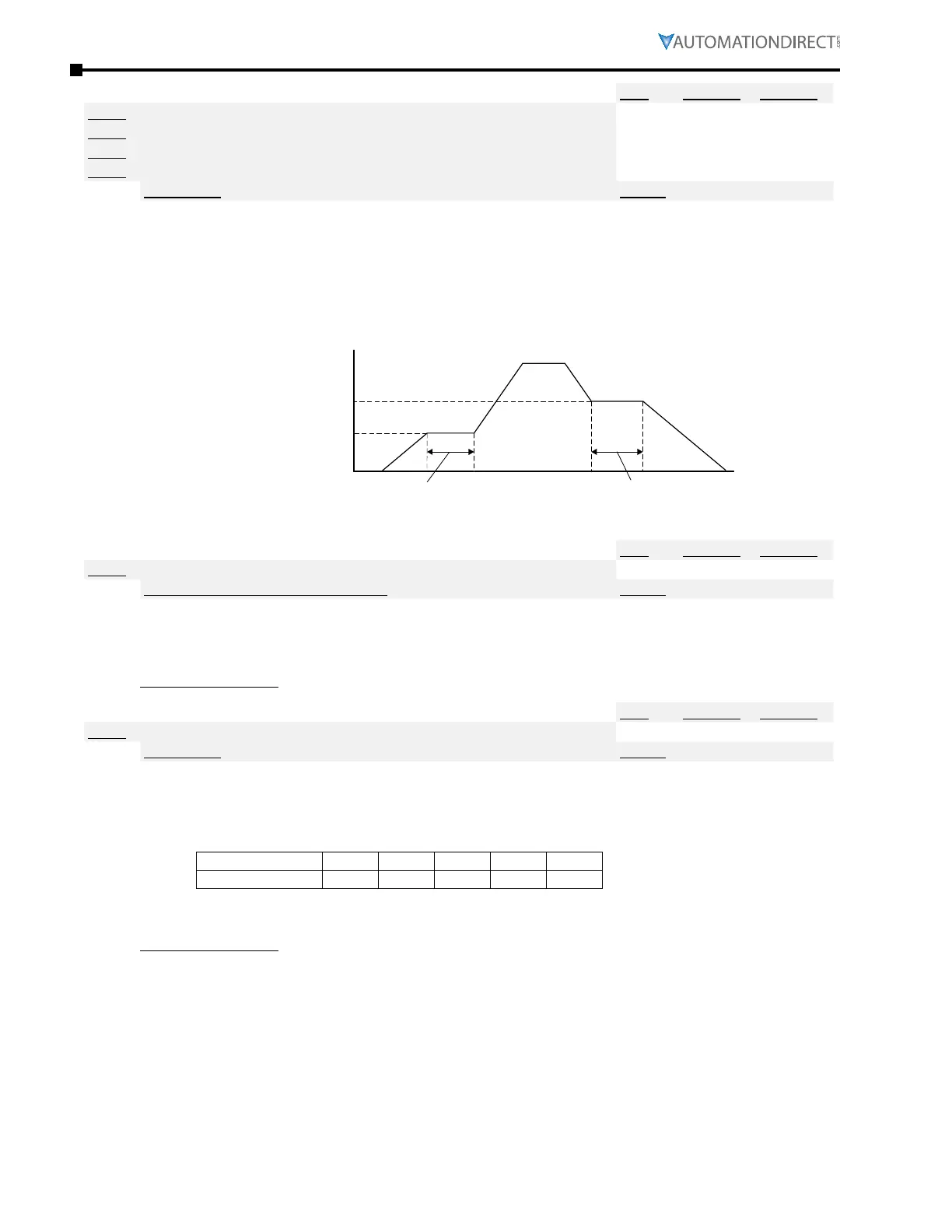

P6.65 to P6.68 is for heavy loads in order to prevent OV or OC faults. A heavy load will be
accelerated to P6.66 and remain there for the time specified in P6.65, then continue to accelerate
to the commanded speed. The same behavior occurs for the Dwell Frequency and Time for the
Decel portion.
Time
Dwell at Accel/Decel
P6.66 Dwell Frequency
at Accel
P6.65
Dwell Time
P6.67
Dwell Time
P6.68 Dwell Frequency
at Decel
Type Hex Addr Dec Addr
P6.69 Input Phase Loss Detection Time
R/W 0645 41606
Range/Units (Format: 16-bit unsigned) Default
0�00~600�00 sec
0�20
This parameter sets the monitoring time interval to detect an input phase loss. The factory setting
is 0.20 second, which means the drive will check every 0.20 second.
Related parameters: P6.49, P6.70
Type Hex Addr Dec Addr
P6.70 Input Phase Loss Ripple Detection
R/W 0646 41607
Range/Units Default
230V models: 0�0~160�0 VDC
460V models: 0�0~320�0 VDC
30�0
60�0
When the input voltage is greater than the setting in P6.70 for the time determined as shown
below, this situation is seen as input phase loss.
Current (%)
50 75 120 150 200
Time (seconds)
432 225 60 32 15
An error message OrP will be shown on the keypad, and the drive will react according to the
setting of P6.49.
Related parameters: P6.49, P6.69
