Chapter 2: Installation and Wiring
Page 2–7
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

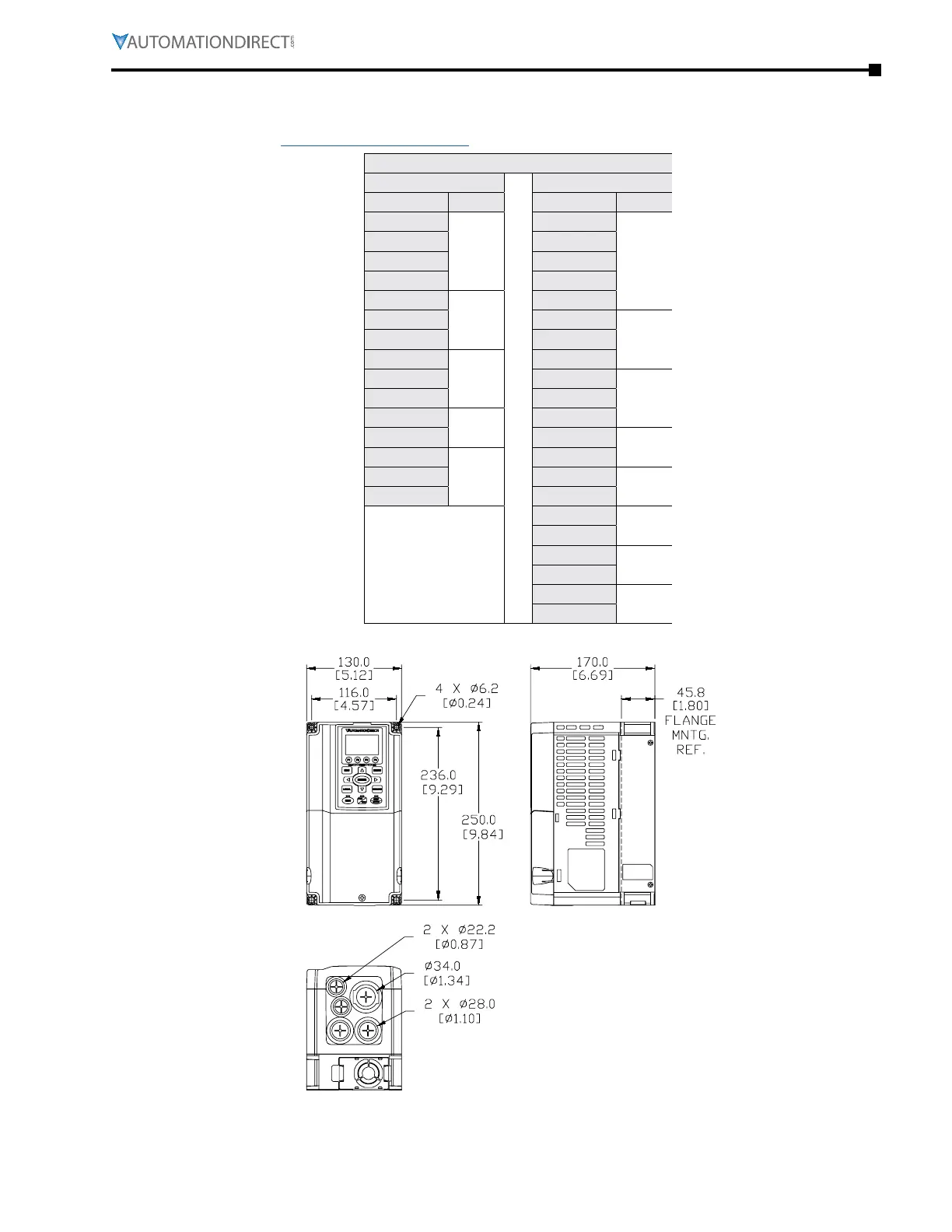

DiMensiOns
(Units = mm [in])
See our website: www.AutomationDirect.com for complete engineering drawings.
GS4 durapulse Frame Sizes by Drive Model
230V 460V
Drive Frame Drive Frame
GS4-21P0
A
GS4-41P0
A
GS4-22P0 GS4-42P0
GS4-23P0 GS4-43P0
GS4-25P0 GS4-45P0
GS4-27P5
B
GS4-47P5
GS4-2010 GS4-4010
BGS4-2015 GS4-4015
GS4-2020
C
GS4-4020
GS4-2025 GS4-4025
CGS4-2030 GS4-4030
GS4-2040
D
GS4-4040
GS4-2050 GS4-4050
D0
GS4-2060
E
GS4-4060
GS4-2075 GS4-4075
D
GS4-2100 GS4-4100
GS4-4125
E
GS4-4150
GS4-4175
F
GS4-4200
GS4-4250
G
GS4-4300
frame size a
