Appendix A: Accessories
Page A–47
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

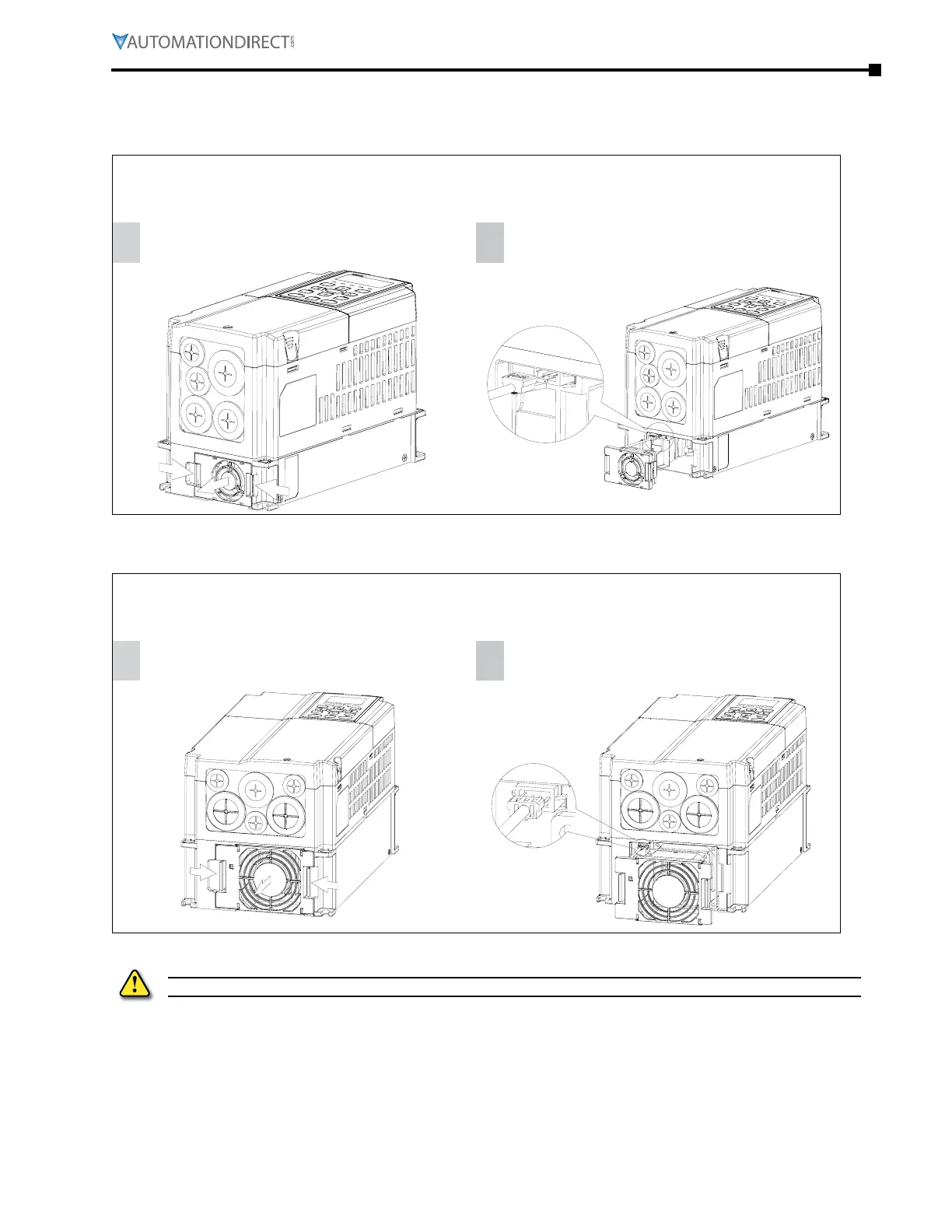

fan removal
frame a
Applicable models:
GS4-22P0, GS4-23P0, GS4-25P0
(Other Frame A drives do not have fans - they are convection cooled)
1
Press the tabs on both sides of the fan to
successfully remove the fan. (The arrow)
2
Disconnect the power terminal before
removing the fan. (As shown below)
frame b
Applicable models:
GS4-27P5, GS4-2010, GS4-2015
1
Press the tab on both sides of the fan to
successfully remove the fan.
2
Disconnect the power terminal before
removing the fan.
Remove poWeR fRom dRIve pRIoR to INstAllAtIoN ANd/oR RemovAl of AccessoRIes.
