Automation Direct DURApulse GS4 User Manual

Appendix A: Accessories
Page A–3
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

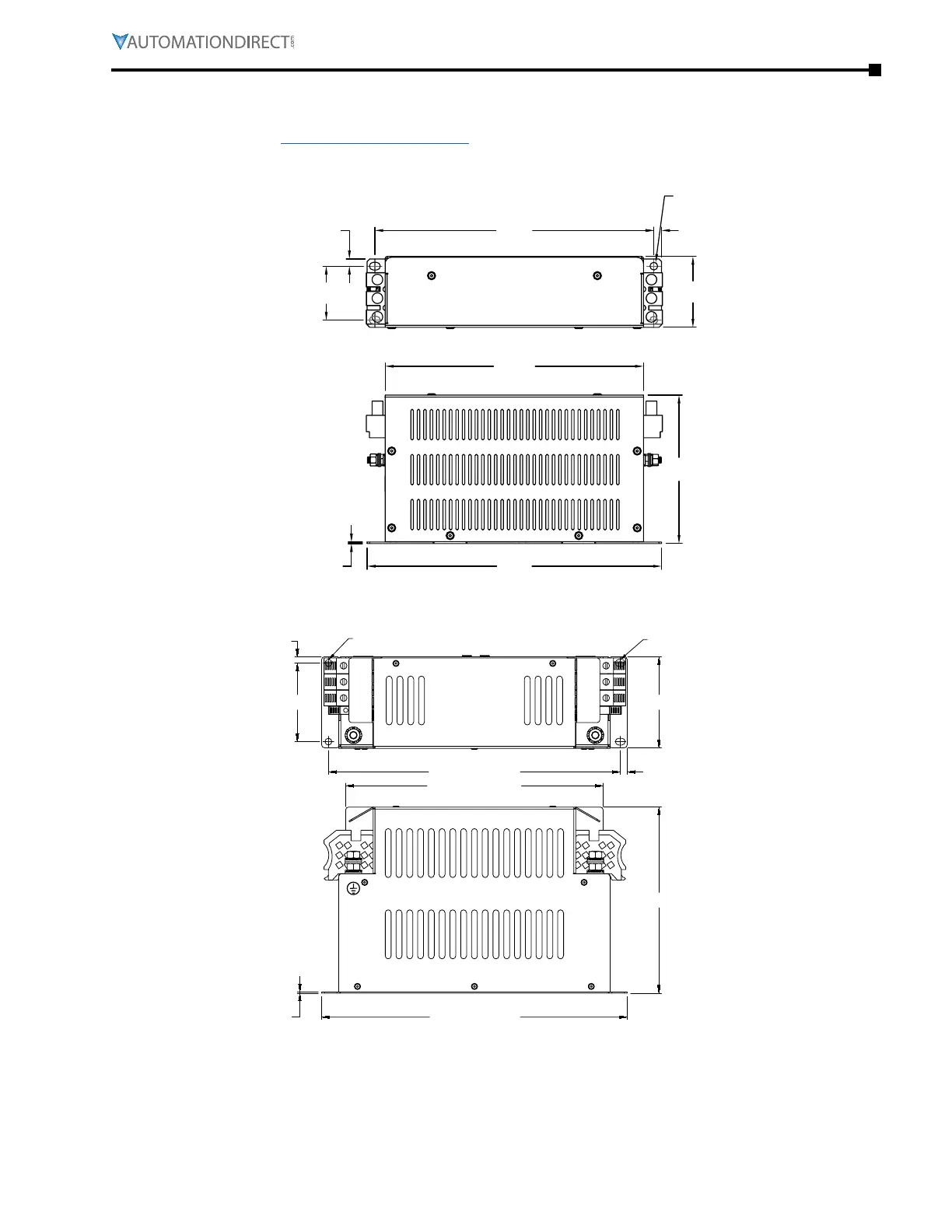

emi filTer dimensions
(Units = mm [in])
See our website: www.AutomationDirect.com for complete engineering drawings.
217.0
[8.54]
6.0
[0.24]
5.6
[0.22]
42.0
[1.65]
229.0
[9.02]
1.2
[0.05]
201.0
[7.91]
4X Ø6.0
[Ø0.24]
115.5
[4.55]
55.2
[2.17]
KMF318A KMF325A
7.8
[0.31]
2x Ø7.0 [0.28]
2x Ø7.0x10.0[0.28x0.39]
93.5 [3.68]
190.0 [7.48]
79.0 [3.11]
1.2 [0.05]
263.0 [10.35]
298.0 [11.73]
312.0 [12.28]
7.0 [0.28]
KMF350A KMF370A KMF3100A
