Appendix A: Accessories

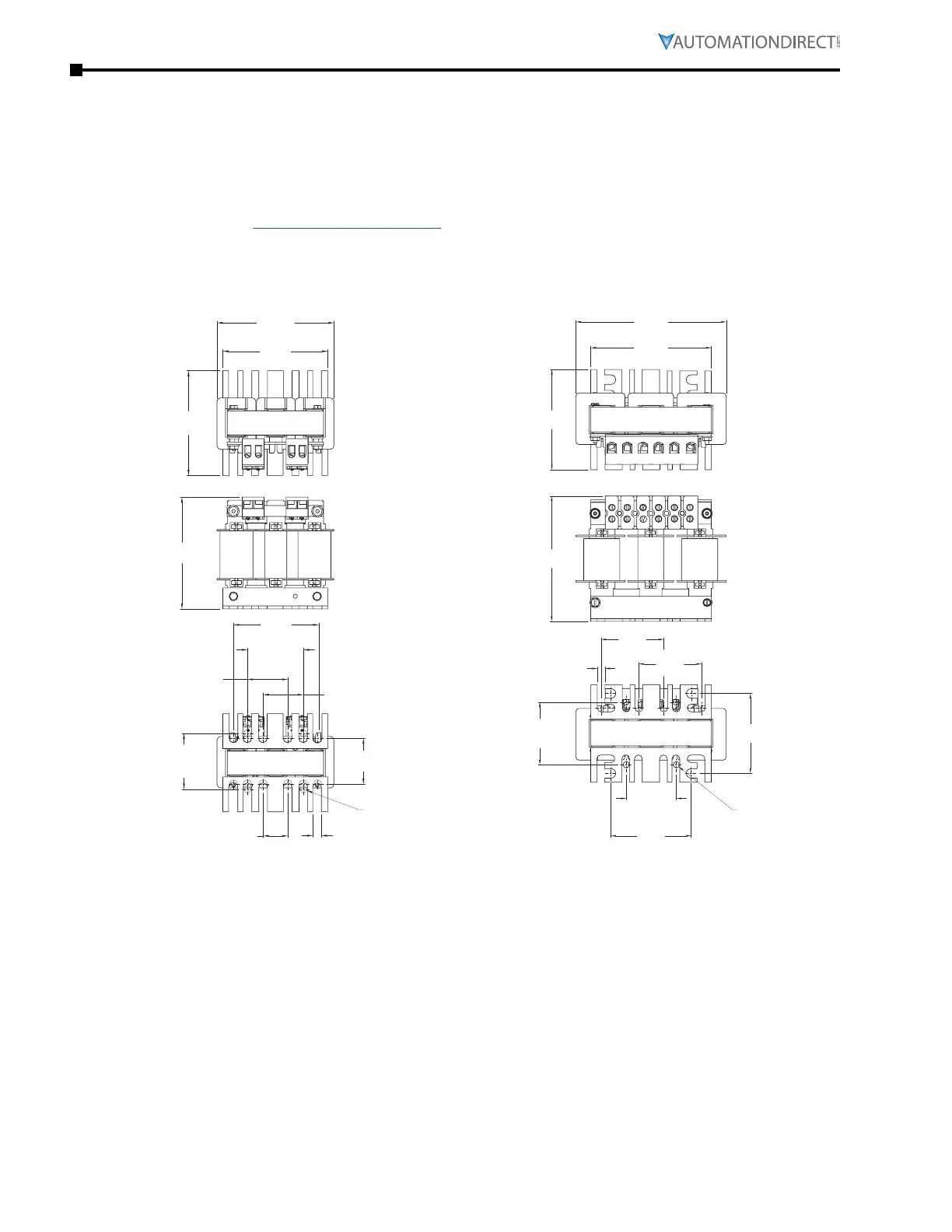

line reaCTor dimensions
Mounting feet with multiple mounting slots allow replacement of most non-AutomationDirect
reactors using existing mounting holes. Use four bolts to mount the LR reactors.
(Units = in [mm])
See our website: www.AutomationDirect.com for complete engineering drawings.
LR-21P0-1PH LR-22P0-1PH, LR23P0-1PH
A2
B2
A1
B1
4.18
[106.2]
3.75
[95.3]
3.75
[95.3]
1.64
[41.7]
4.00
[101.6]
3.05
[77.5]
2.00
[50.8]
MOUNTING
1.44
[36.6]
1.44
[36.6]
2.00
[50.8]
MOUNTING
0.88
[22.4]
0.31
[7.9]
4X Ø0.25
[Ø6.4]
B2
B1
A2
A1
6.00
[152.4]
4.81
[122.2]
5.00
[127.0]
4.00
[101.6]
3.20
[81.3]
2.00
[50.8]
MOUNTING
2.50
[63.5]
MOUNTING
3.19
[81.0]
2.50
[63.5]
2.50
[63.5]
12X 0.31
[7.9]
4X Ø0.25
[Ø6.4]
