Appendix A: Accessories
Page A–39
DuRApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017

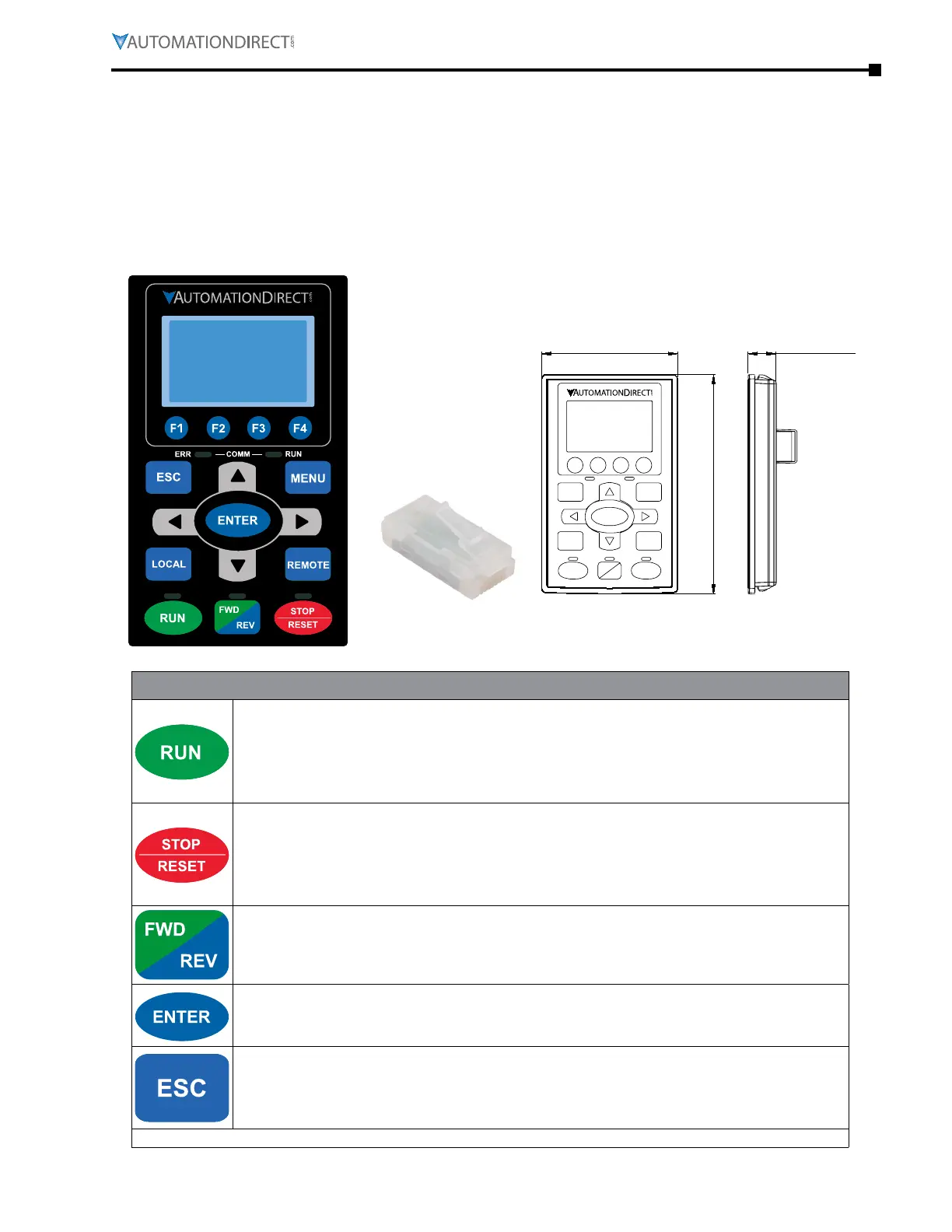

sPare keYPaD
gs4-kpd
Spare or replacement keypad for GS4 drives. The embedded keypad can be installed flat on the
surface of the control box (with or without bezel GS4-BZL). The front cover is IP56 rated.
The maximum RJ45 extension lead is 5m (16ft). The keypad communication connection back
to the drive when mounted remotely can be accomplished by using a standard RJ45 CAT5e
straight through patch cable. No other wiring, including power is required. The small RJ45 plastic
connector that comes standard with each drive is included with each GS4-KPD kit.
15.0 [0.59]72.0 [2.83]
116.0 [4.57]
RJ45 Connector
(included)
Dimensions mm [in]
Descriptions of Keypad Functions
RUN Key
1) It is only valid when the source of operation command is from the keypad.
2) It can operate the AC motor drive by the function setting and the RUN LED will be ON.
3) RUN can be pressed even when drive is in process of stopping.
4) When enabling "LOCAL" mode, it is only valid when the source of operation command is from the
keypad.
STOP/RESET Key
This key has the highest processing priority in any situation.
1) When it receives STOP command, whether or not the AC drive is in operation or stop status, the AC
motor drive will execute a "STOP" command.
2) The RESET key can be used to reset the drive after the fault occurs. For those faults that can't be reset
by the RESET key, see the fault records after pressing MENU key for details.
Operation Direction Key
1) This key only controls the operation direction and does NOT activate the drive. FWD: forward. REV:
reverse.
2) Refer to the LED descriptions for more details.
ENTER Key
Press ENTER and go to the next menu level� If it is the last level, then press ENTER to execute the
command�
ESC Key
The ESC key function serves to leave the current menu and return to the last menu� It also functions as a
return key while in the sub-menu�
Continued on next page.
