Appendix A: Accessories

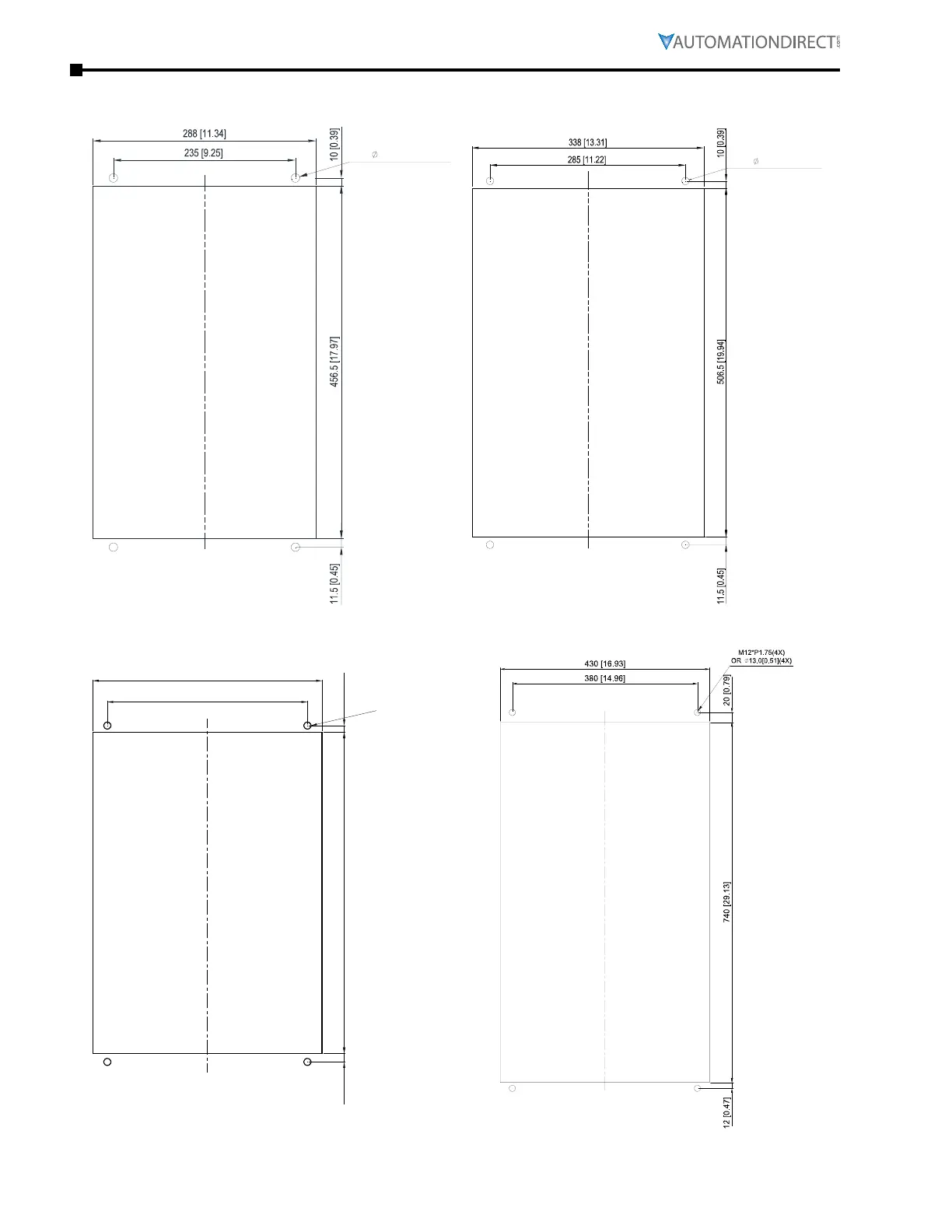

opTional CuTouT dimensions for builT-in flange mounTing
Frame D0 Cutout Dimensions  mm [in] Frame D Cutout Dimensions  mm [in]
M10*P1.5(4X)
OR
11.0[0.43](4X)
M10*P1.5(4X)
OR
11.0[0.43](4X)
Frame E Cutout Dimensions  mm [in] Frame F Cutout Dimensions  mm [in]
M12*P1.75(4X)
or Ø13[0.51](4X)
384 [15.12]
14.6 [0.58]
335 [13.19]
11.2 [0.44]
539.7 [21.25]
